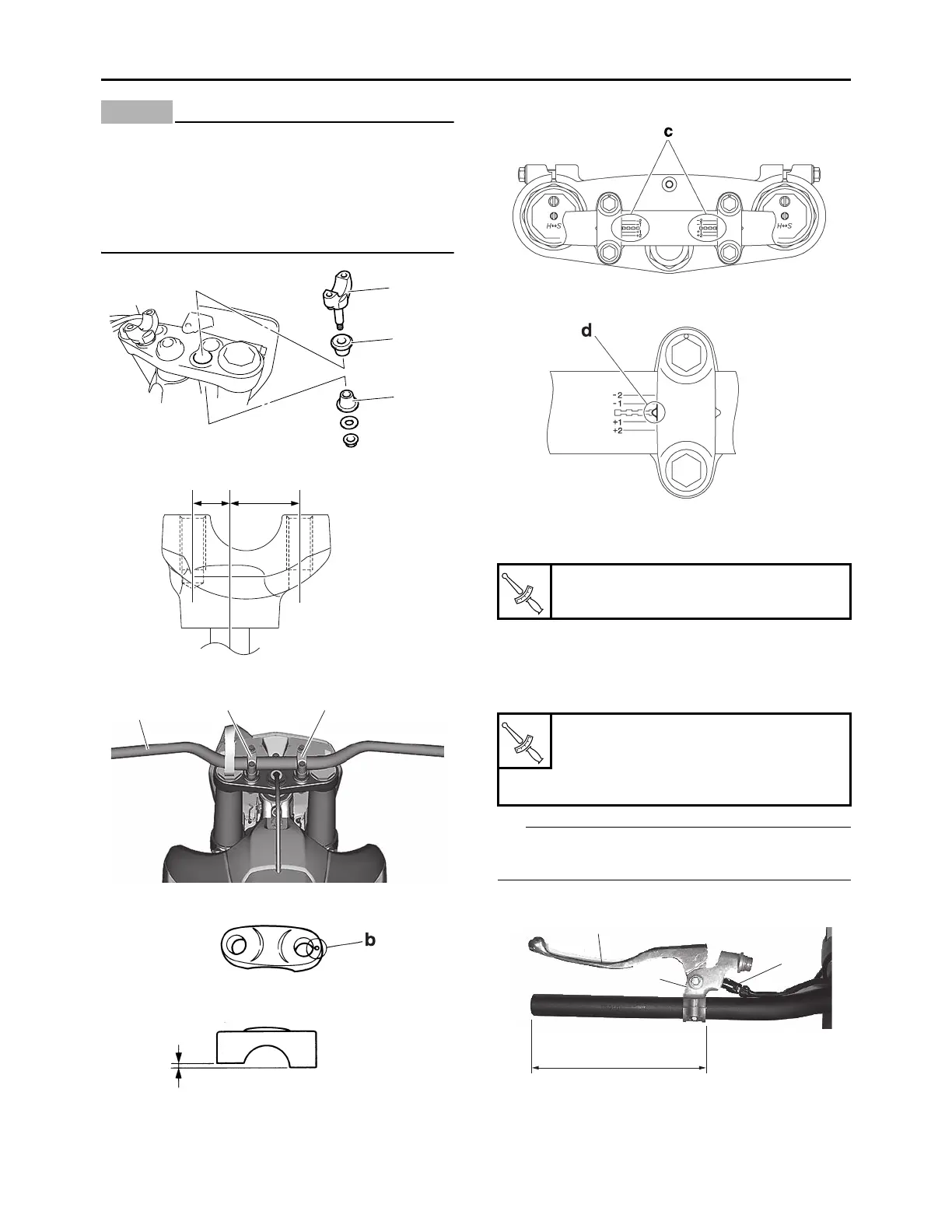

HANDLEBAR
4-39
NOTICE
ECA14250
• First, tighten the bolts on the front side of
the handlebar holder, and then on the rear
side.
• Turn the handlebar all the way to the left
and right. If there is any contact with the
fuel tank, adjust the handlebar position.
3. Tighten:
• Lower handlebar holder nut
4. Install:
• Clutch lever holder “1”
• Clutch lever “2”
• Clutch switch “3”
TIP
The clutch lever holder “1” should be installed
according to the dimensions shown.
5. Install:
• Engine stop switch “1”
• Clamp “2”
2
1
1
a
3
44
Lower handlebar holder nut
40 N·m (4.0 kgf·m, 30 lb·ft)
Clutch lever holder bolt
3.8 N·m (0.38 kgf·m, 2.8 lb·ft)
Clutch lever nut
4.0 N·m (0.40 kgf·m, 3.0 lb·ft)
T
R
.
.
T
R
.
.
2
1
(6.61 in)
168 mm
3
