FRONT FORK
4-49
TIP

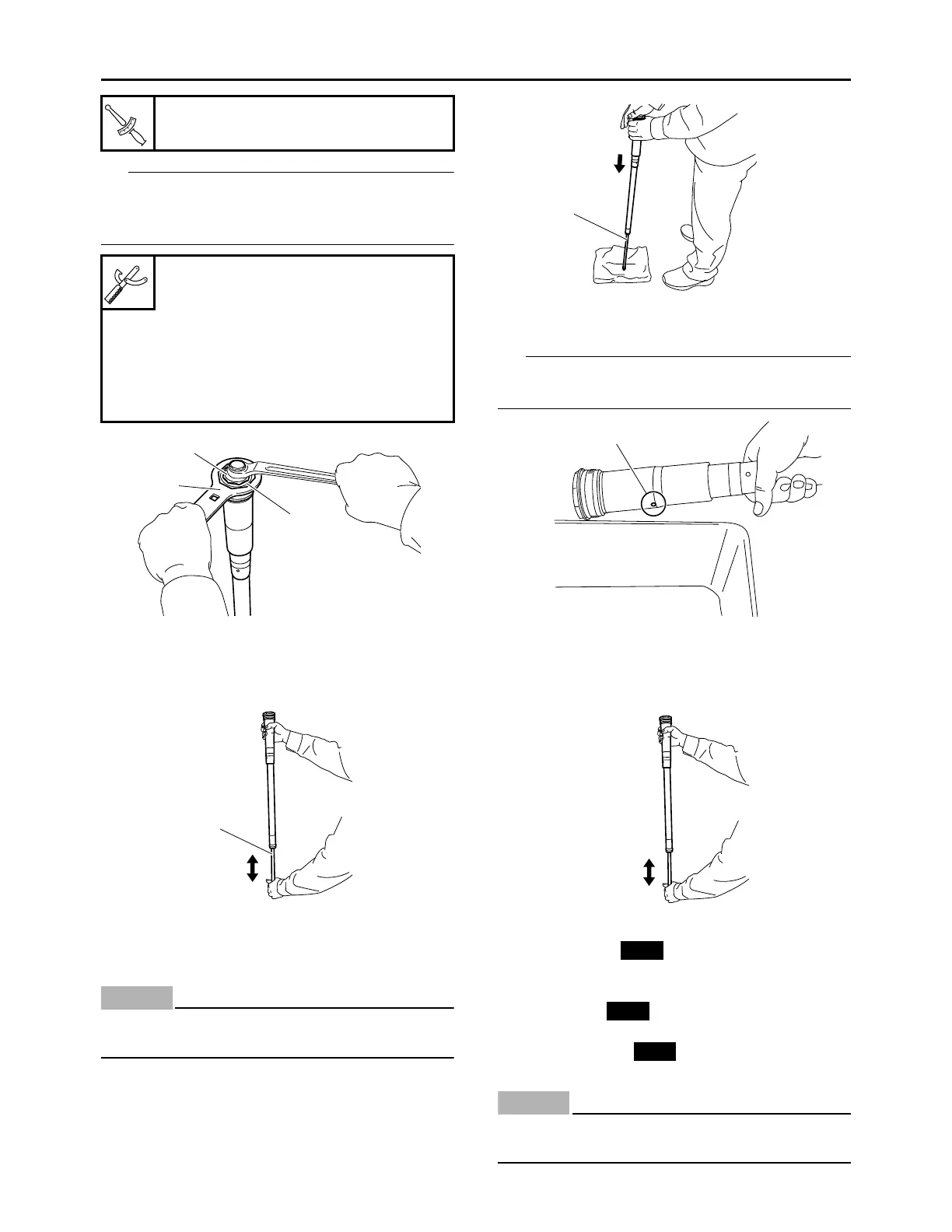

Hold the damper assembly with the cap bolt ring
wrench “2” and use the cap bolt wrench “3” to
tighten the base valve.
10.After filling, pump the damper assembly “1”
slowly up and down more than 10 times to
distribute the fork oil.
11.While protecting the damper assembly “1”
with a cloth and compressing fully, allow ex-
cessive oil to overflow on the base valve side.
NOTICE
ECA24540
Take care not to damage the damper assem-
bly.
12.Allow the overflowing oil to escape at the hole
“a” in the damper assembly.
TIP
The overflow measures about 10 cm³ (0.34
US oz, 0.35 Imp.oz).
13.Check:
• Damper assembly smooth movement
Tightness/binding/rough spots  Repeat the
steps (1) to (12).
14.Install:
• Dust seal “1”
• Scraper “2”
• Stopper ring “3”
• Oil seal “4”
• Washer “5”
• Slide metal “6”
(to the inner tube “7”)
NOTICE
ECA24550
Make sure that the numbered side of the oil
seal faces bottom side.
Base valve
28 N·m (2.8 kgf·m, 21 lb·ft)
Cap bolt wrench
90890-01500
Cap bolt wrench
YM-01500
Cap bolt ring wrench
90890-01501
Cap bolt ring wrench
YM-01501
T
R
.
.
1
2
3
1
1
a
New
New
New
