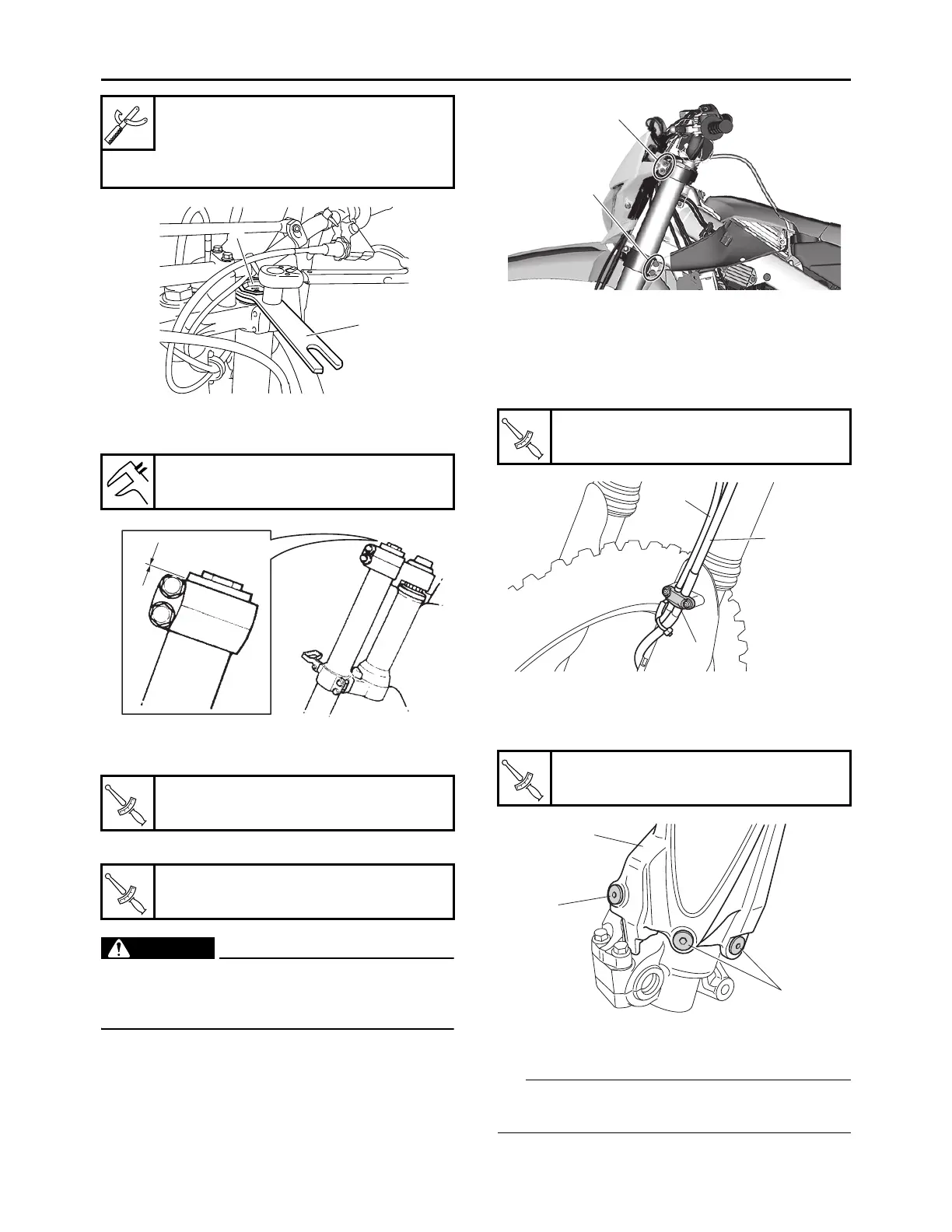

FRONT FORK
4-54
3. Adjust:
• Front fork top end “a”
4. Tighten:
• Pinch bolt (upper bracket) “1”
• Pinch bolt (lower bracket) “2”
WARNING
EWA19320
Tighten the lower bracket to specified
torque. If torqued too much, it may cause the
front fork to malfunction.
5. Install:
• Speed sensor lead “1”
• Front brake hose “2”
• Plate “3”
(to the left front fork protector)
6. Install:
• Protector “1”
• Bolt (protector) “2”
7. Adjust:
• Rebound damping force
TIP
Turn in the damping adjuster “1” finger-tight and
then turn out to the originally set position.
Cap bolt ring wrench
90890-01501
Cap bolt ring wrench
YM-01501
Front fork top end (standard) “a”
5 mm (0.20 in)
Upper bracket pinch bolt
21 N·m (2.1 kgf·m, 15 lb·ft)
Lower bracket pinch bolt
21 N·m (2.1 kgf·m, 15 lb·ft)
