Yamaha WR250F 2021 - Page 188

REAR SHOCK ABSORBER ASSEMBLY
4-62

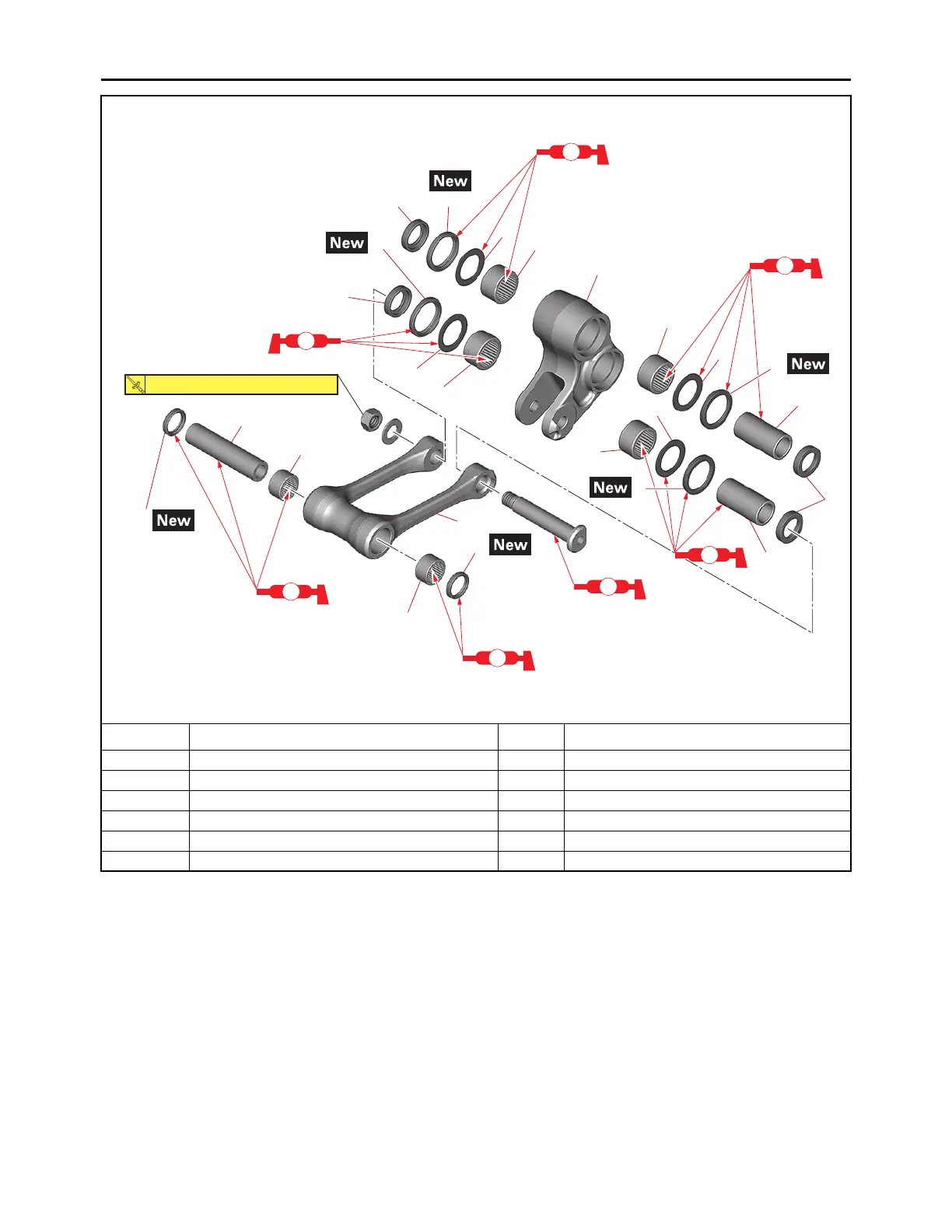

Disassembling the relay arm
Order Job/Parts to remove Q’ty Remarks
1Relay arm 1
2 Connecting arm 1
3 Collar 3
4 Oil seal 6
5 Washer 8
6 Bearing 6
5
3
5
6
1
6
5
4
5
5
4
6
6
5
3
2
4
6
6
3
4
4
M
M
M
M
M
M
M
80 N・m (8.0 kgf・m, 59 lb・ft)
