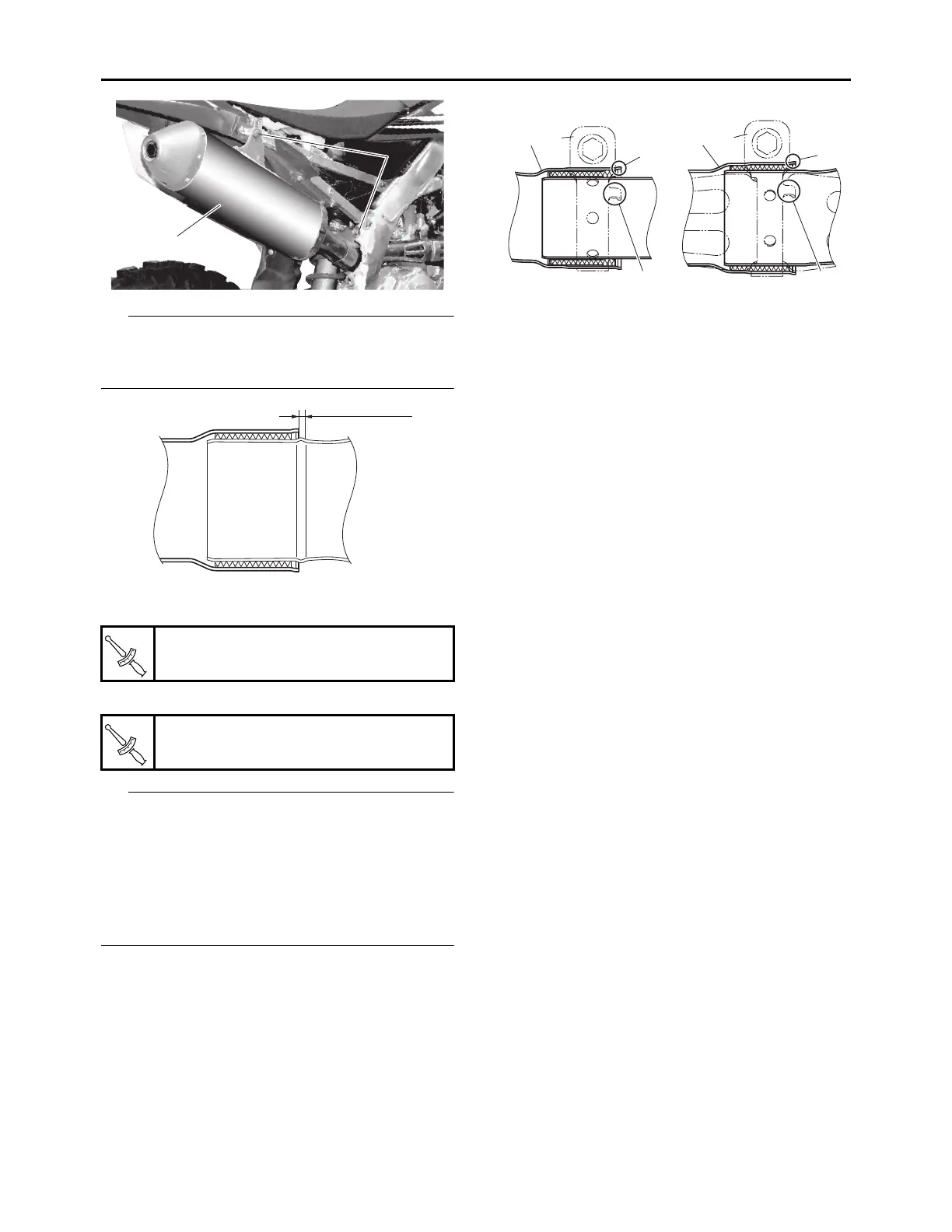

ENGINE REMOVAL
5-13
TIP
Install and temporarily tighten the silencer so
that its joint is positioned as shown with respect
to the exhaust pipe 2.
4. Tighten:
• Bolt (exhaust pipe 2)
• Clamp “1”
TIP
• Tighten while checking that their front and rear
joints are inserted in position.
• Make sure that the exhaust pipe clamp “1”
does not ride on the projection “a” on the ex-
haust pipe “2” or silencer “3”. Be sure to insert
the projection “b” into the slot in the exhaust
pipe (or silencer).
Bolt (exhaust pipe 2)
20 N·m (2.0 kgf·m, 15 lb·ft)
Clamp
12 N·m (1.2 kgf·m, 8.9 lb·ft)
2
2
2
1
2 mm (0.08 in)
T
R
.
.
T
R
.
.
A. Exhaust pipe 1 and exhaust pipe 2
B. Exhaust pipe 2 and silencer
21
a
b
a
b
A
3 1
B
