CAMSHAFT
5-15

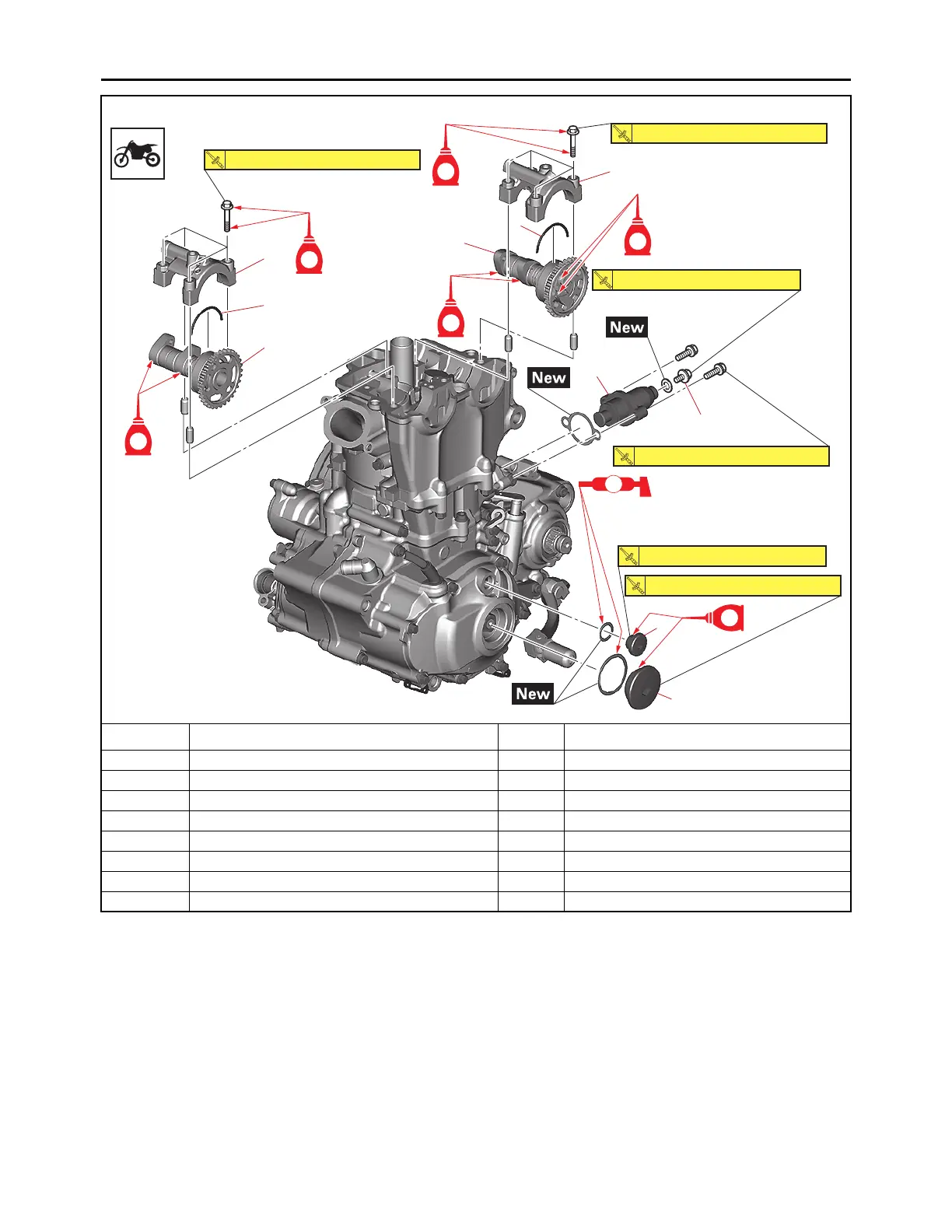

Removing the camshaft
Order Job/Parts to remove Q’ty Remarks
1 Timing mark accessing screw 1
2 Crankshaft end accessing screw 1
3 Timing chain tensioner cap bolt 1
4 Timing chain tensioner 1
5 Camshaft cap 2
6Clip 2
7 Intake camshaft 1
8 Exhaust camshaft 1
LS
5
8
3
4
1
2
7
6
5
(4)
(4)
6
M
M
E
E
E
6 N・m (0.6 kgf・m, 4.4 lb・ft)
6 N・m (0.6 kgf・m, 4.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
E
