STARTER CLUTCH
5-43

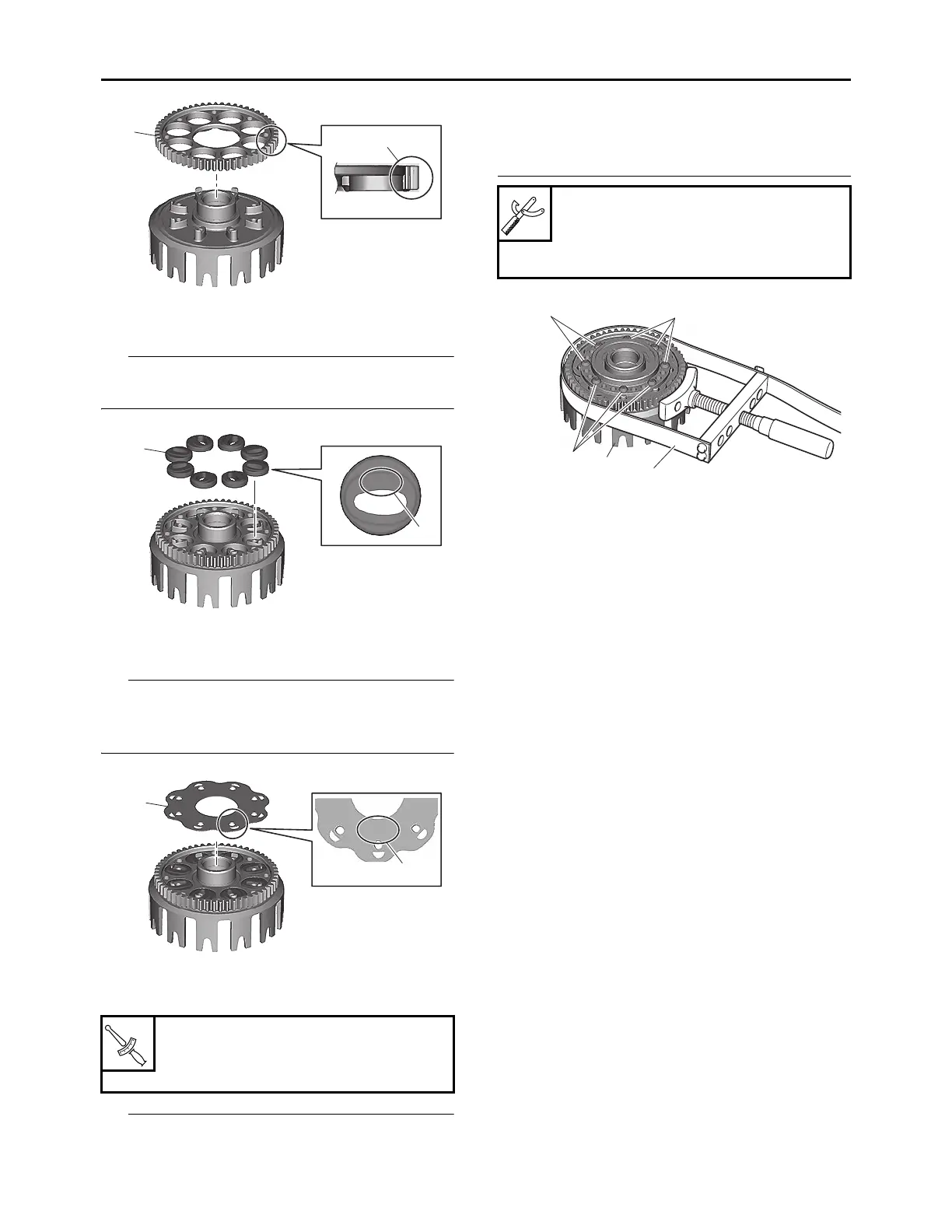

2. Install:
• Absorber “1”
TIP
Install the absorber “1” so that the portion with
the mark “5XC” “a” faces to the side plate side.
3. Install:
• Side plate “1”
TIP
Install the side plate “1” so that the portion with
the mark “B7B” “a” faces to the starter clutch
side.
4. Install:
• Starter clutch
TIP
• Install the starter clutch so that the side of the
starter clutch assembly with the arrow mark is
toward the primary driven gear.
• While holding the side of the clutch housing “1”
with the sheave holder “2” as shown, tighten
the starter clutch screws “3”.
Starter clutch screw
12 N·m (1.2 kgf·m, 8.9 lb·ft)
LOCTITE®
a
1
5XC
a
1
B7B
a
1
T
R
.
.
Sheave holder
90890-01903
Primary clutch holder
YS-01880-A
1
2
3
3
3
