ELECTRIC STARTER
5-45

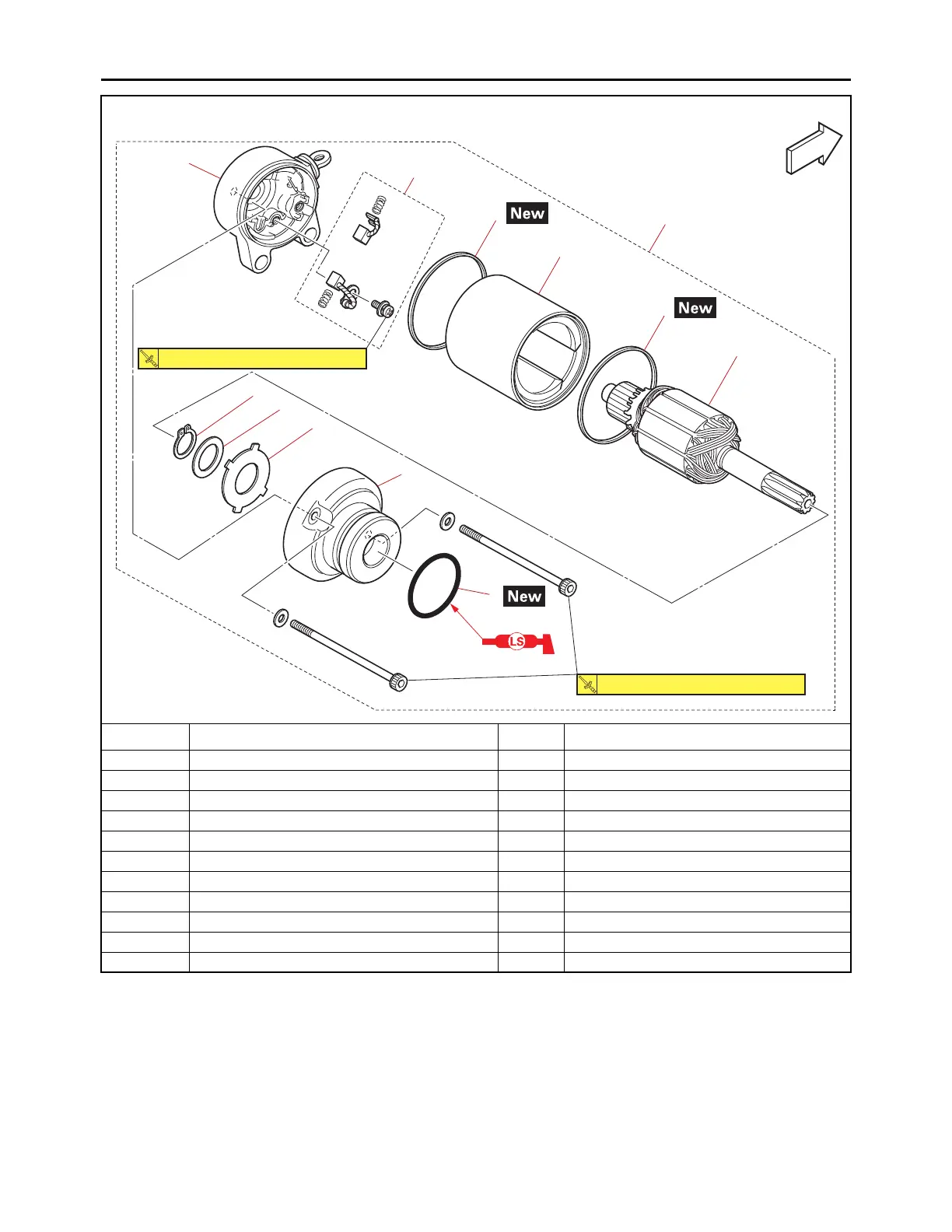

Disassembling the starter motor
Order Job/Parts to remove Q’ty Remarks
1 Starter motor assembly 1
2O-ring 1
3 Starter motor front cover 1
4 Washer 1 Starter motor front cover
5 Starter motor yoke 1
6Gasket 2
7 Armature assembly 1
8 Washer 1
9 Circlip 1
10 Starter motor rear cover 1
11 Brush set 1
FWD
1
2
3
4
5
6
6
7
8
9
10
11
3.5 N・m (0.35 kgf・m, 2.6 lb・ft)
1.5 N・m (0.15 kgf・m, 1.1 lb・ft)
