ELECTRIC STARTER
5-47
NOTICE
ECA24650
Be careful not to damage the brush during
installation.

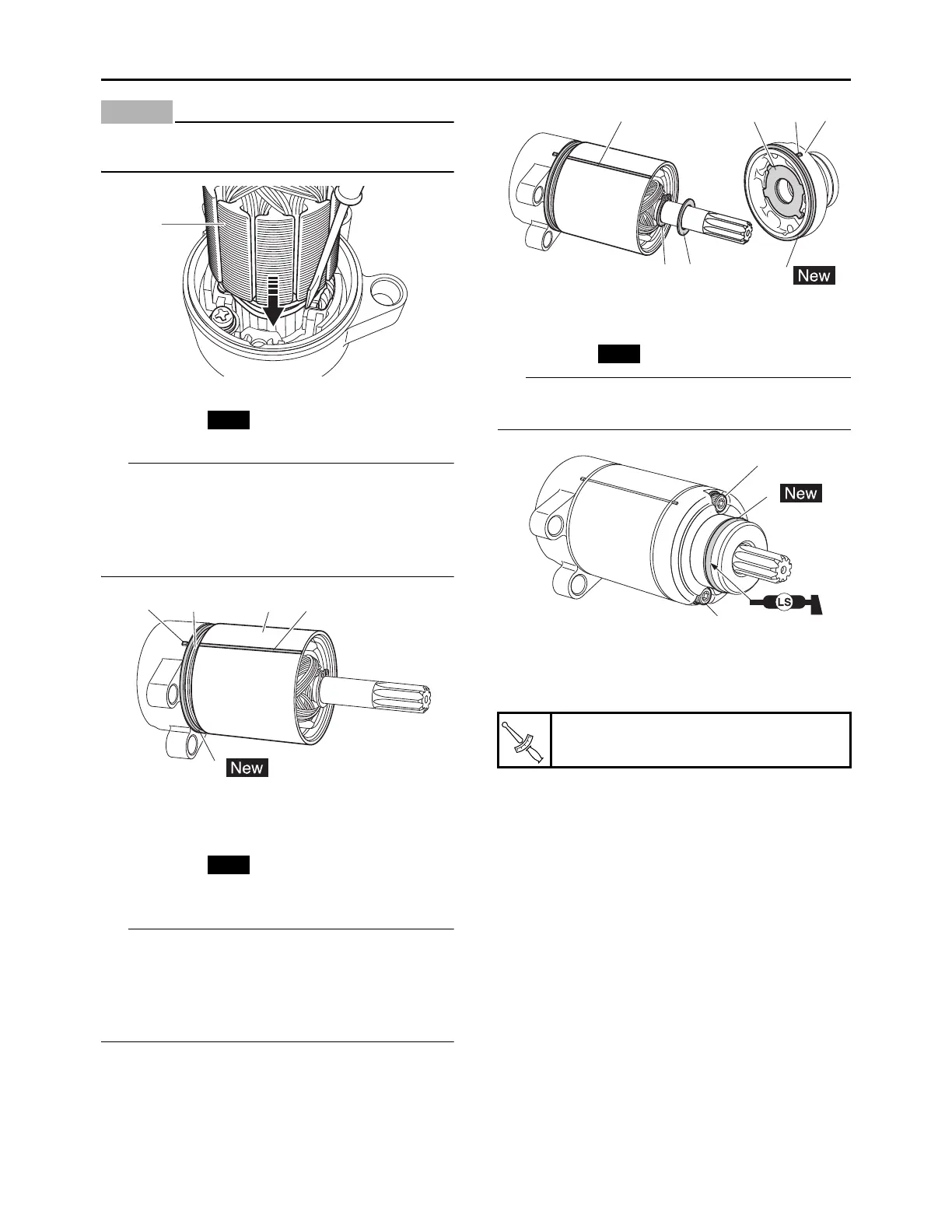

3. Install:
• Gasket “1”
• Starter motor yoke “2”
TIP
• Install the starter motor yoke with its groove “a”
facing starter motor rear cover.
• Align the match mark “b” on the starter motor
yoke with the match mark “c” on the starter mo-
tor rear cover.
4. Install:
• Circlip “1”
• Plain washer “2”
• Gasket “3”
• Washer (starter motor front cover) “4”
• Starter motor front cover “5”
TIP
• For installation, align the projections on the
washer with the slots in the front cover.
• Align the match mark “a” on the starter motor
yoke with the match mark “b” on the starter mo-
tor front cover.
5. Install:
• Bolt “1”
• O-ring “2”
TIP
Apply the lithium-soap-based grease on the O-
ring.
6. Install:
• Starter motor
• Starter motor bolt
1
New
c
b
a
1
2
New
Starter motor bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
a
1
2
3
b
4
5
New
2
1
1
T
R
.
.
