OIL PUMP
5-61

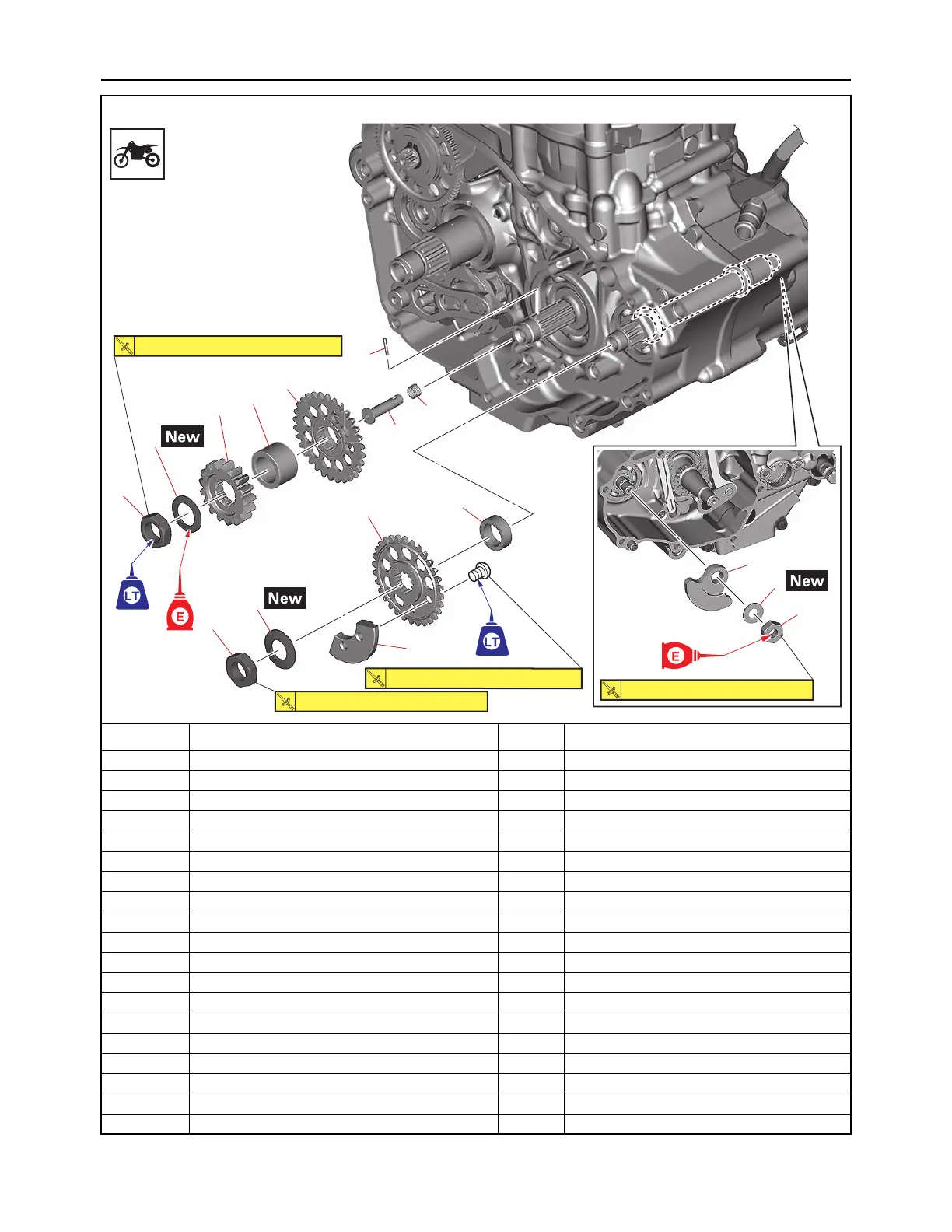

Removing the balancer
Order Job/Parts to remove Q’ty Remarks
Primary driven gear Refer to “CLUTCH” on page 5-48.
Right crankcase cover Refer to “CLUTCH” on page 5-48.
Stator coil assembly Refer to “GENERATOR” on page 5-38.
1 Nut (balancer) 1
2 Nut (primary drive gear) 1
3 Nut (balancer weight gear) 1
4 Conical washer 1
5 Balancer weight 1
6 Conical washer 1
7 Primary drive gear 1
8 Collar 1
9 Balancer drive gear 1
10 Conical washer 1
11 Balancer weight gear 1
12 Balancer weight 1
13 Collar 1
14 Pin 1
15 Relief valve 1
16 Spring 1
2
1
5
4
10
11
(2)
6
7
9
8
3
13
12
14
15
16
105 N・m (10.5 kgf・m, 77 lb・ft)
10 N・m (1.0 kgf・m, 7.4 lb・ft)
50 N・m (5.0 kgf・m, 37 lb・ft)
38 N・m (3.8 kgf・m, 28 lb・ft)
