WATER PUMP
6-8

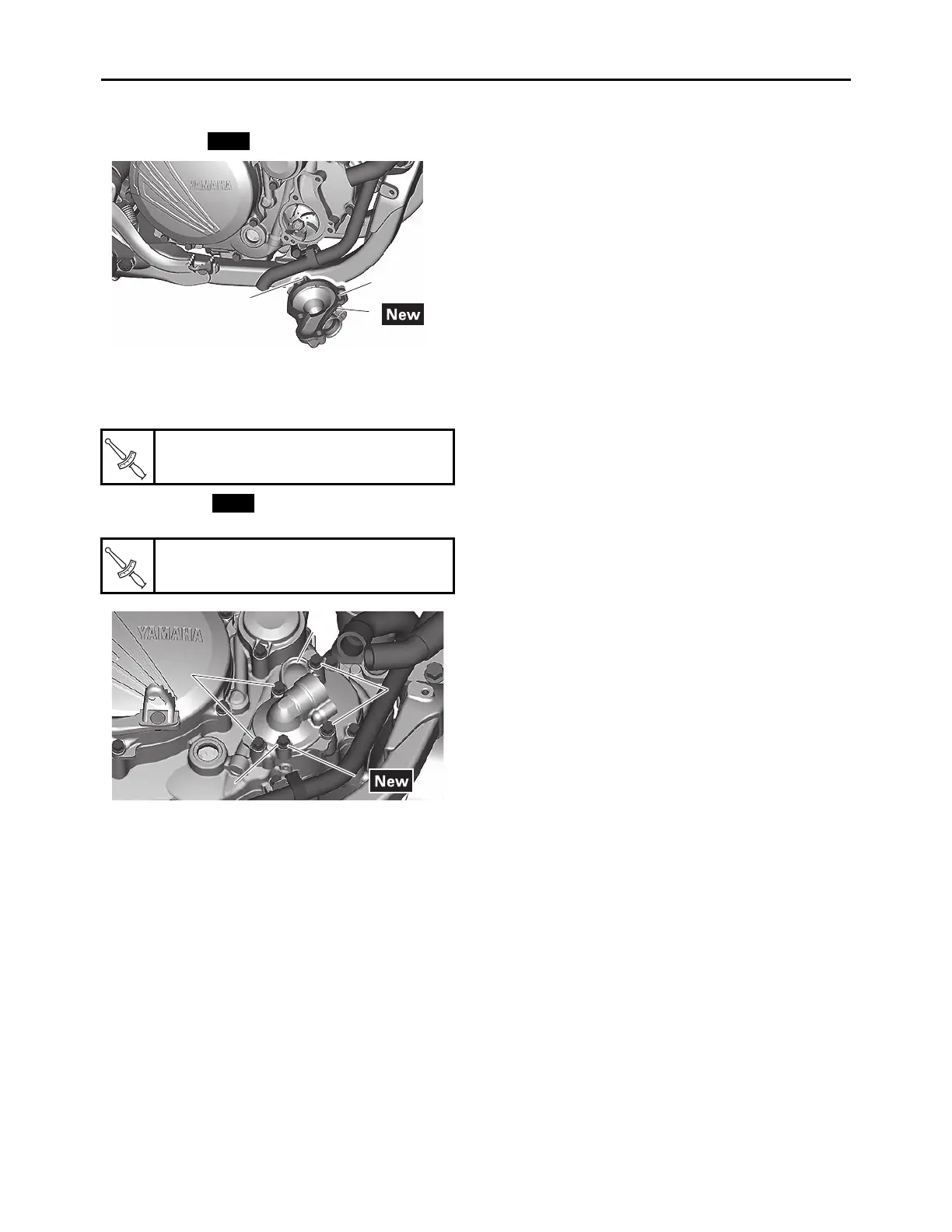

4. Install:
• Dowel pin “1”
• Gasket “2”
5. Install:
• Water pump housing “1”
• Water pump housing bolt “2”
• Washer “3”
• Coolant drain bolt “4”
Water pump housing bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
Coolant drain bolt
10 N·m (1.0 kgf·m, 7.4 lb·ft)
