5.5 Peripheral Devices
5
Specifications and Dimensional Drawings of Cables and Peripheral Devices
5-21

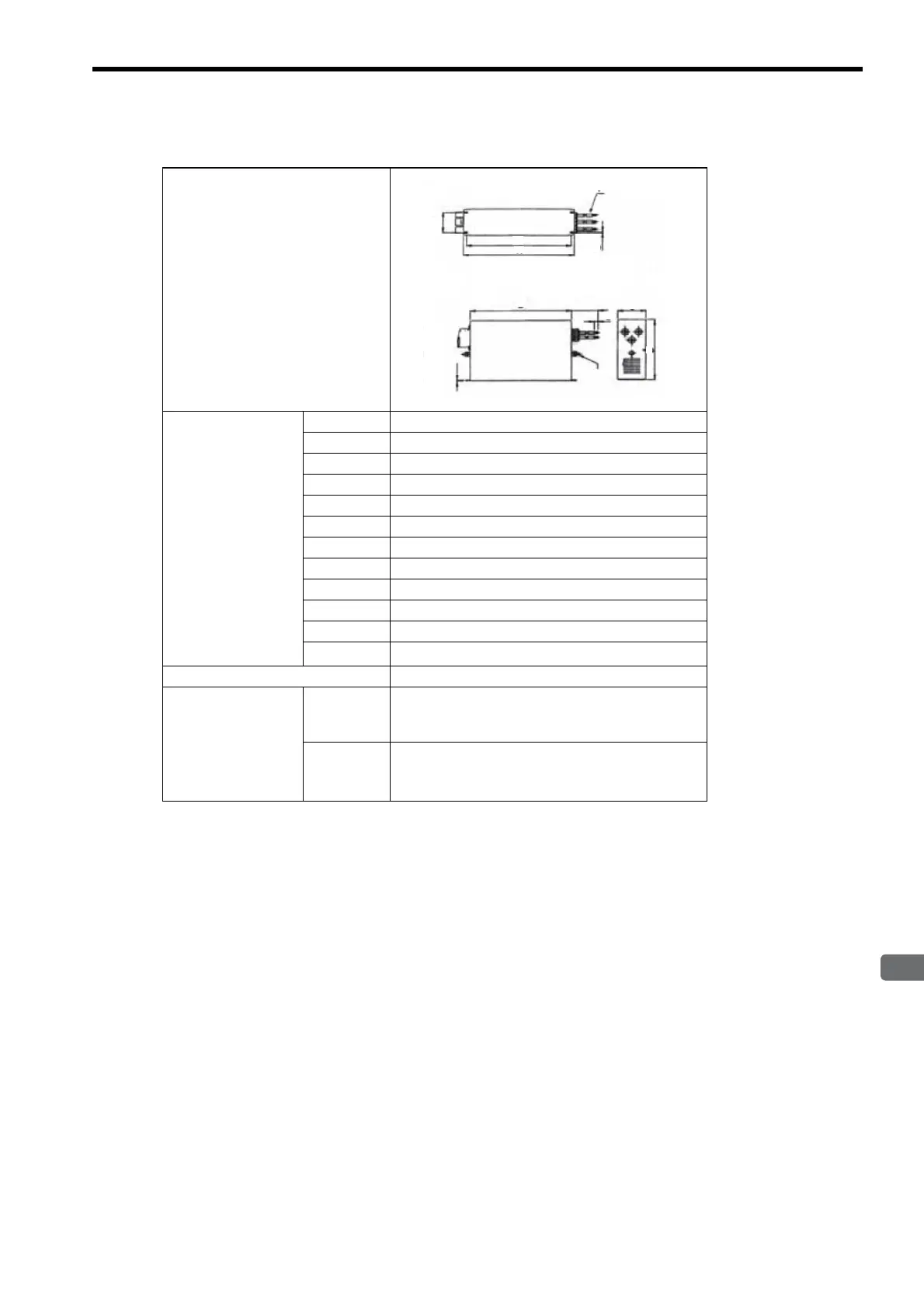

(2) Model: FN258L-180-07
Dimensional Drawings
External Dimensions
(mm)
A
438±1.5
B
240
C
110±0.8
D
400±1.2
E
413
F
80
G
6.5
H
500
J
4
L
15
O
M10
P
50 (mm
2
)
Specifications
480 VAC, 180 A
Applicable
SERVOPACK
Three-
phase
200 V
SGDM-3ZADB
SGDH-3ZAEB
Three-
phase
400 V
SGDH-2BDEB
SGDH-3ZDEB
SGDH-3GDEB
C
L
H
D
E
P
B
B
O
G
F
J
A
