5.5 Peripheral Devices
5
Specifications and Dimensional Drawings of Cables and Peripheral Devices
5-31

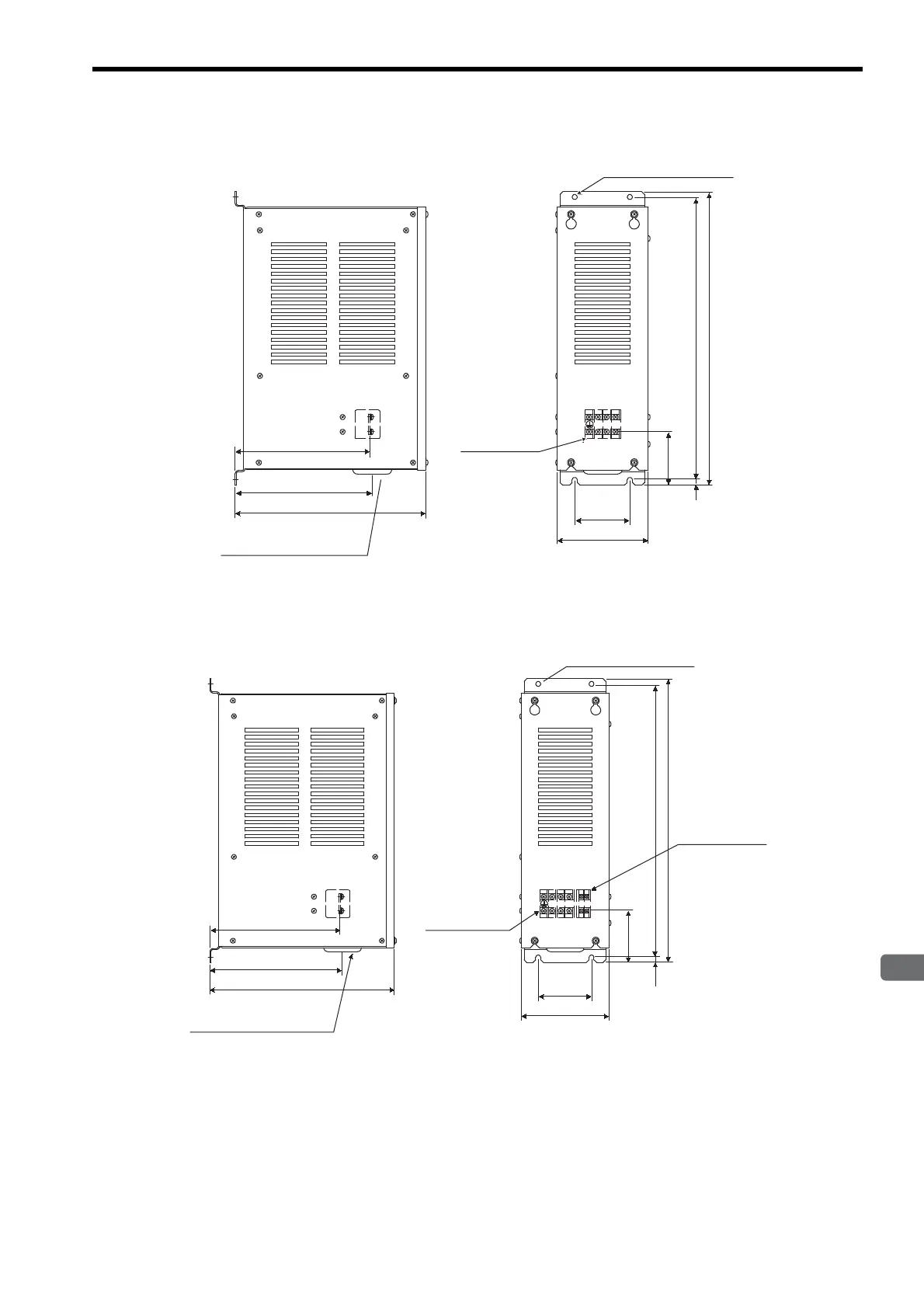

(c) JUSP-DB03 Dynamic Brake Unit
(d) JUSP-DB04 Dynamic Brake Unit
DW
DUDV
184
187
259
75
124
73
7.5
385
400
Units: mm
Approx. mass: 5.0 kg
Power line insertion hole
(φ33, with rubber bushing)
M4 main
circuit terminals
4 × M5 mounting holes
DU DVDW
DB
24
DB
ON
184
187
259
75
124
73
7.5
385
400
Units: mm
Approx. mass: 6.0 kg
Power line insertion hole
(φ33, with rubber bushing)
M4 main
circuit terminals
M3.5 control
circuit terminals
4 × M5 mounting holes
