5 Specifications and Dimensional Drawings of Cables and Peripheral Devices
5.5.11 Dynamic Brake (DB) Unit
5-30

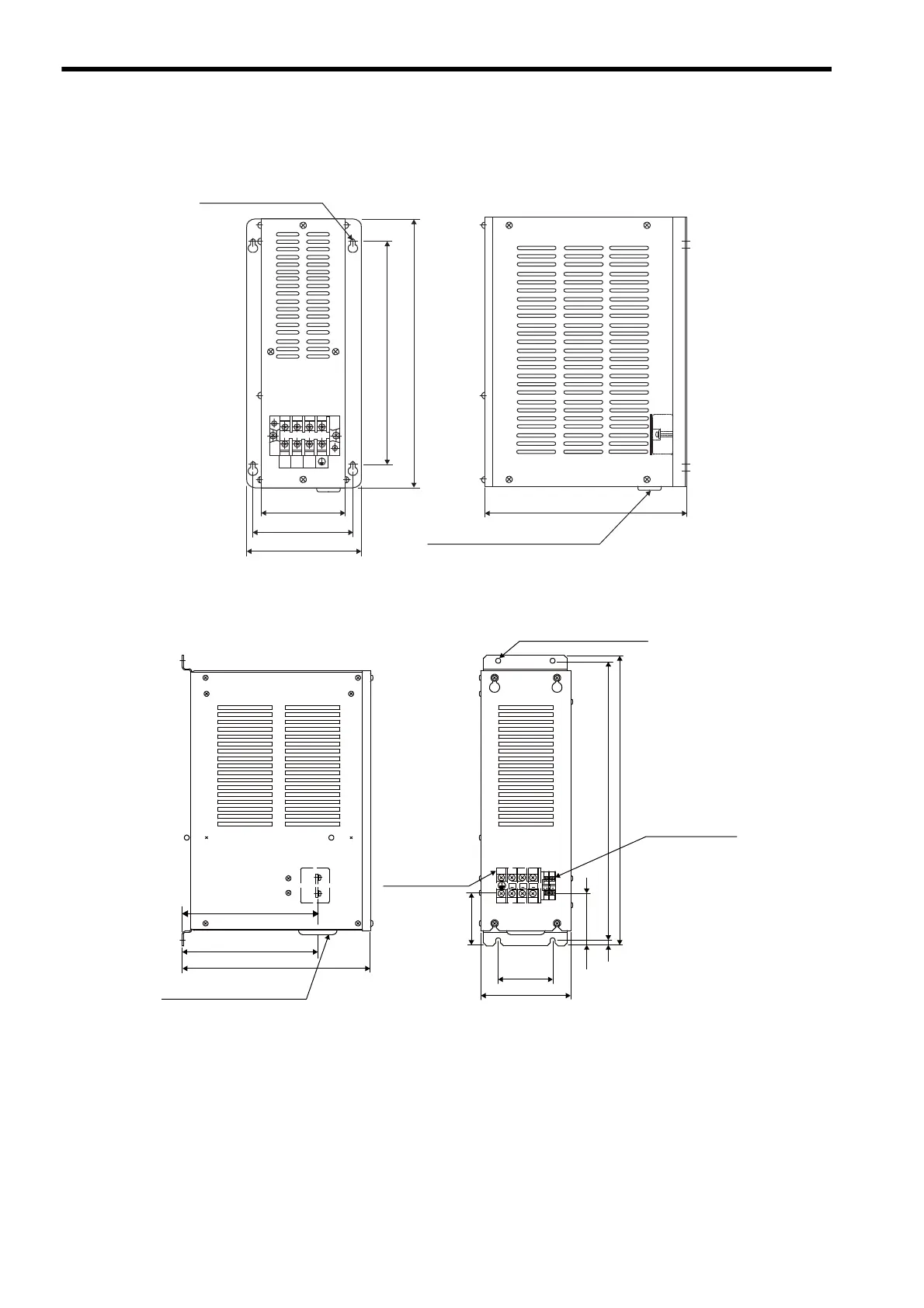

(3) Dimensional Drawings
(a) JUSP-DB01 Dynamic Brake Unit
(b) JUSP-DB02 Dynamic Brake Unit
110
350
130
150
290
255
DVDU
DW
Units: mm
Approx. mass: 5.0 kg
Power line insertion hole
(φ17, with rubber bushing)
4 × φ7 mounting holes
DW
DVDU
71.5
M3.5 control
circuit terminals
DB
24
DB
ON
187
187
259
75
124
73
7.5
385
400
Units: mm
Approx. mass: 6.0 kg
Power line insertion hole
(φ33, with rubber bushing)
M5 main
circuit terminals
4 × M5 mounting holes
