7 Digital Operator/Panel Operator
7.3.1 Setting Parameters
7-22

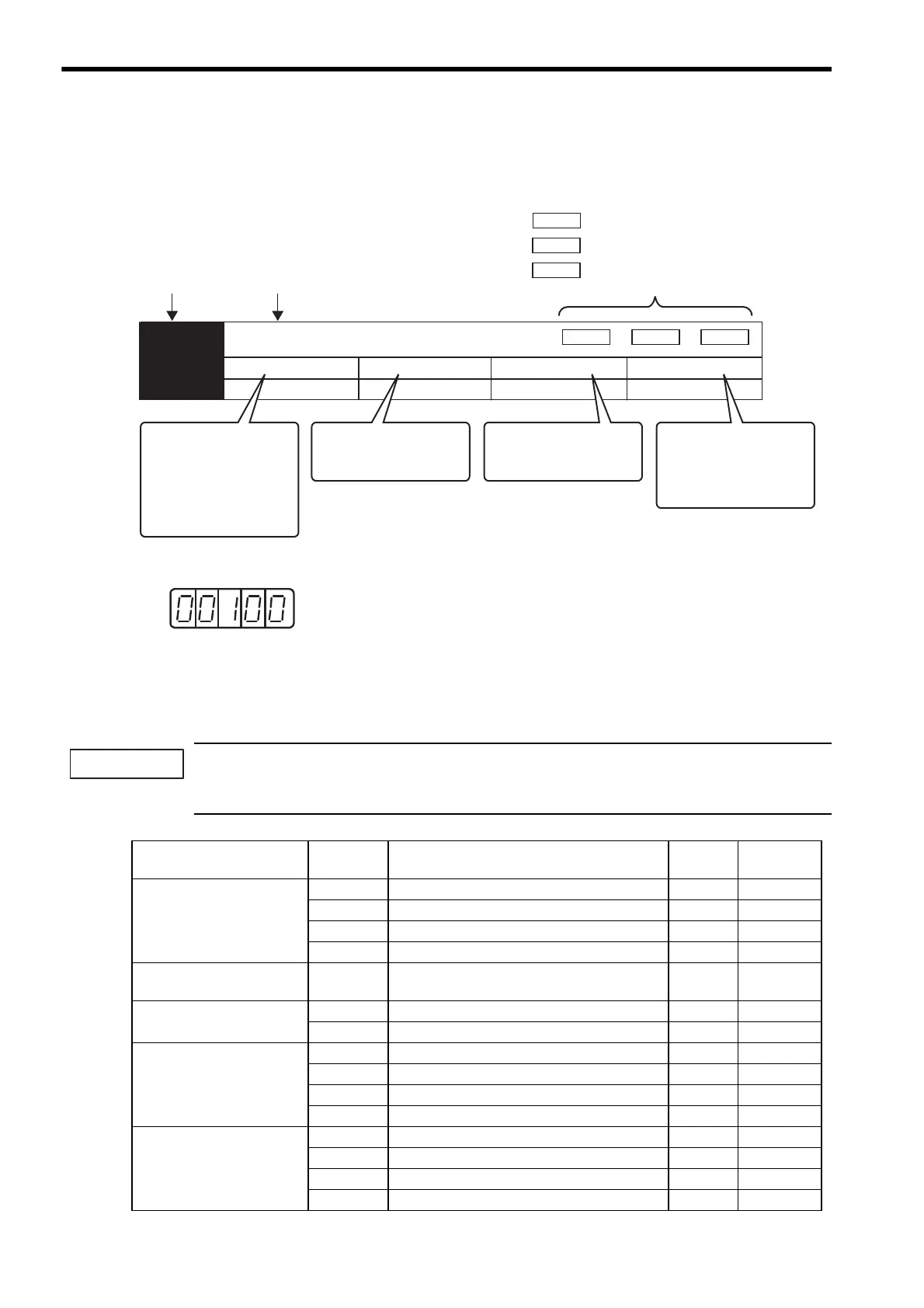

(c) Parameter Indications
In this manual, the parameter is explained with using the following format.
The following alarm shows the setting value of the parameter.
(2) Function Selection Parameters
(a) Types of Function Selection Parameters
Refer to 11.3.2 List of Parameters.
If the parameters with “After restart” in “Setting Validation” column in the table are changed, turn OFF the
main circuit and control power supply and ON again to validate new setting.
• Pn10B.1 requires the power to be reset as mentioned above.
Decimal display in five digits
Pn406
Emergency Stop Torque
Setting Range
0 to 800 1% 800 Immediately
Setting Unit Factory Setting Setting Validation
The number of the
parameter
The name of the
parameter
Position
Positoin
Speed
Torque
Torque
Applicable control mode for the parameter
Speed
: Speed control, internally set speed control
: Position control
: Torque control
This section shows the
range of the parameter
settings. The maximum
value can be set even if
the parameter is combined
with the other sepecified
motor.
This section shows the
minimum setting unit
(the setting value).
This section shows the
SERVOPACK's parameter
with factory setting.
This section shows if
the setting is validated
"immediately" or "after
restart" when changing
the parameter.
Category
Parameter
No.
Name
Factory
Setting
Setting
Validation
Function Selection
Parameter
Pn000 Function Selection Basic Switches
0000 After restart
Pn001 Function Selection Application Switches
0000 After restart
Pn002 Function Selection Application Switches
0000 After restart
Pn003 Function Selection Application Switches
0002 Immediately
Servo Gain Related
Parameter
Pn10B Gain Application Switches
0000 After restart/
Immediately
Position Control Related
Parameter
Pn200 Position Control References Selection Switches
0000 After restart
Pn207 Position Control Function Switches
0000 After restart
Sequence Related
Parameter
(Input Signal Selection)
Pn50A Input Signal Selections
2100 After restart
Pn50B Input Signal Selections
6543 After restart
Pn50C Input Signal Selections
8888 After restart
Pn50D Input Signal Selections
8888 After restart
Sequence Related
Parameter
(Output Signal Selection)
Pn50E Output Signal Selections
3211 After restart
Pn50F Output Signal Selections
0000 After restart
Pn510 Output Signal Selections
0000 After restart
Pn512 Output Signal Reversal Setting
0000 After restart
