YASKAWA E-II Series User Manual

7 Digital Operator/Panel Operator
7.3.3 Output Circuit Signal Allocation
7-28
• Allocating Output Signals
The procedure to replace Servomotor Rotation Detection (/TGON) signal allocated to CN1-27 (28) with
factory setting to “Invalid” and allocate Brake Interlock (/BK) signal to CN1-27 (28) is shown below.
EXAMPLE

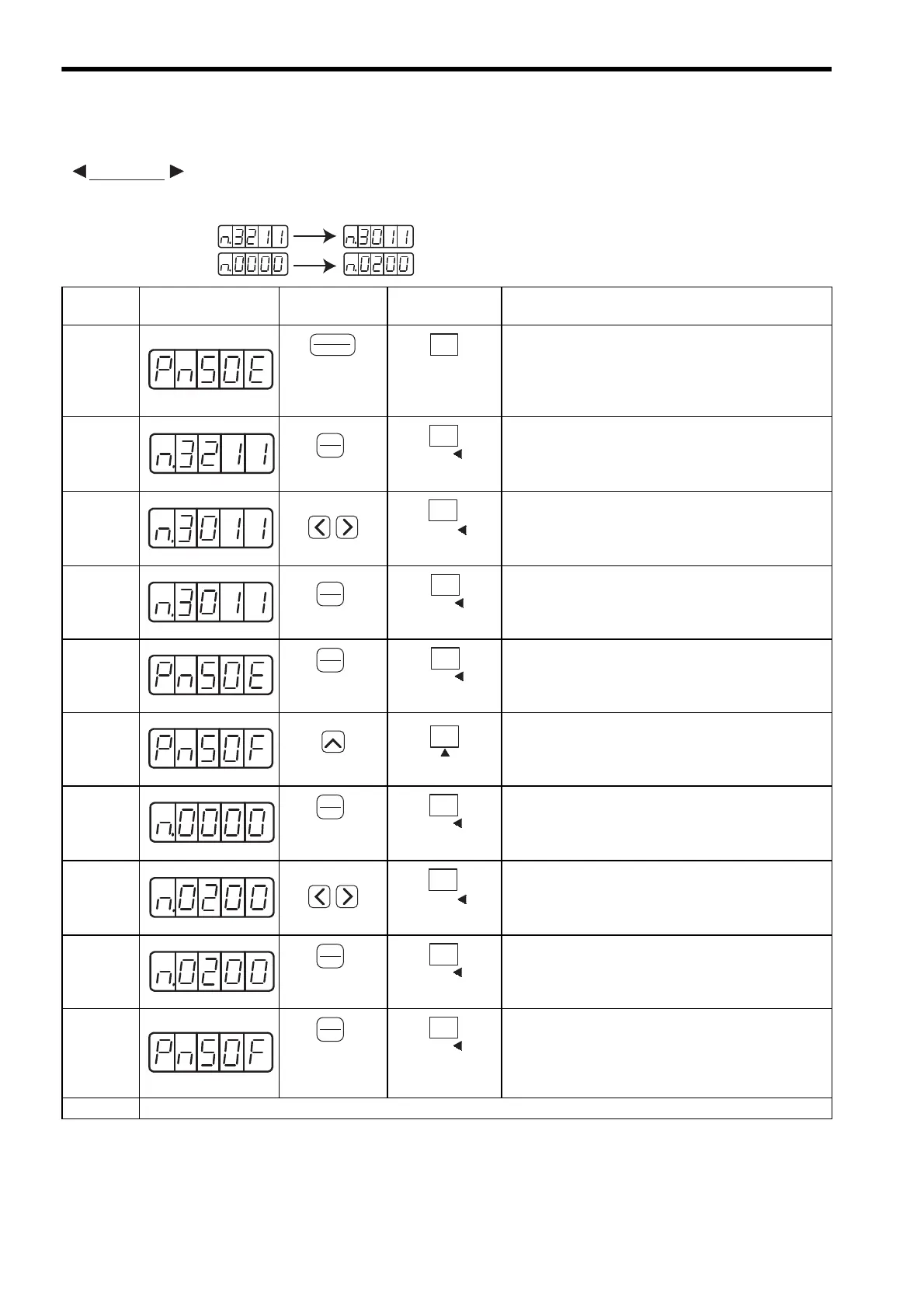

Step
Display after
Operation
Digital
Operator
Panel
Operator
Description
1 Press the DSPL/SET or MODE/SET Key to select the
“value setting parameter” mode. If a parameter other
than Pn50E is displayed, press the UP or DOWN Key to
select Pn50E.
Note: The enabled digit blinks.
2 Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second to display the current data
of Pn50E.
(/TGON is allocated to CN1-27 (28).)
3 Press the LEFT Key or RIGHT or DATA/SHIFT Key to
select the third digit from the right. Press the DOWN
Key to set “0.”
(Sets /TGON “Invalid.”)
4 Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second.
The value blinks and is saved.
5 Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second to return to the display
Pn50E.
6 Press the UP Key to set Pn50F.
Note: The enabled digit blinks.
7 Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second to display the current data
of Pn50F.
(/BK is set to “Invalid.”)
8 Press the LEFT or RIHGT Key or DATA/SHIFT Key to
select the third digit from the right. Press the UP Key to
set “2.”
(Allocates /BK to CN1-27 (28).)
9 Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second. The value blinks and is
saved.
10 Press the DATA/ENTER Key once, or DATA/SHIFT
Key for more than one second to return to the display
Pn50F.
/TGON is set as “Invalid” and /BK is allocated to CN1-
27 (28).
11 Turn OFF the power and ON again to enable the changes of output signal selection (Pn50E and Pn50F).
Pn50E:
Before After
Pn50F:
DSPL
SET
(DSPL/SET Key)
MODE/SET
(MODE/SET Key)
DATA
ENTER
(DATA/ENTER K ey)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
DATA/
(DATA/SHIFT Key)
DATA
ENTER
(DATA/ENTER K ey)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
DATA
ENTER
(DATA/ENTER K ey)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
(UP Key)
(UP Key)
DATA
ENTER
(DATA/ENTER K ey)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
DATA/
(DATA/SHIFT Key)
DATA
ENTER
(DATA/ENTER K ey)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
DATA
ENTER
(DATA/ENTER K ey)
DATA
(DATA/SHIFT Key)
(Press at least 1 s.)
