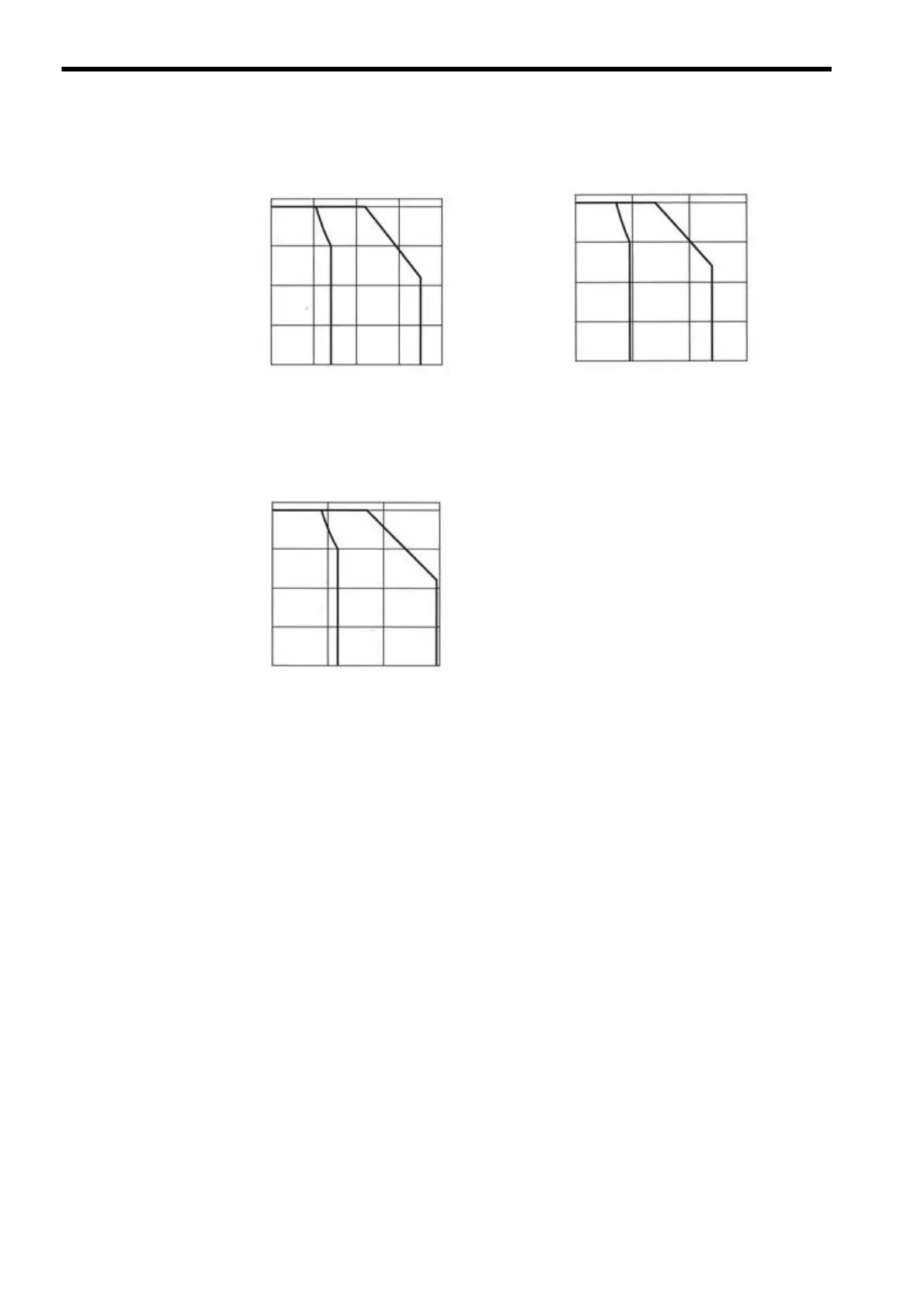

3 Servomotor Specifications and Dimensional Drawings
3-4
(2) Torque-Motor Speed Characteristics (200 V class)
2000
1500
1000
500
0
0
100 200 300 400
SGMVH-2BAB SGMVH-3ZAB
2000
1500
1000
500
0
0
200 400 600
SGMVH-3GAB
2000
1500
1000
500
0
0
200 400 600
A
B
A
B
A
B
Torque (Nm)
Motor
speed
(min
-1
)
Torque (Nm)
Motor
speed
(min
-1
)
Torque (Nm)
Motor
speed
(min
-1
)
A : Continuous Duty Zone
B : Intermittent Duty Zone
