Physical Installation 1 - 13
Removing and Attaching Terminal Cover
Remove the terminal cover to connect cables to the control circuit and main circuit terminals.
Removing the Terminal Cover
Models CIMR-E7U20P4 thru 2018 and 40P4 thru 4018
Loosen the screw at the bottom of the terminal cover, press in on the sides of the terminal cover in the directions of arrows 1,
and then lift up on the terminal in the direction of arrow 2.

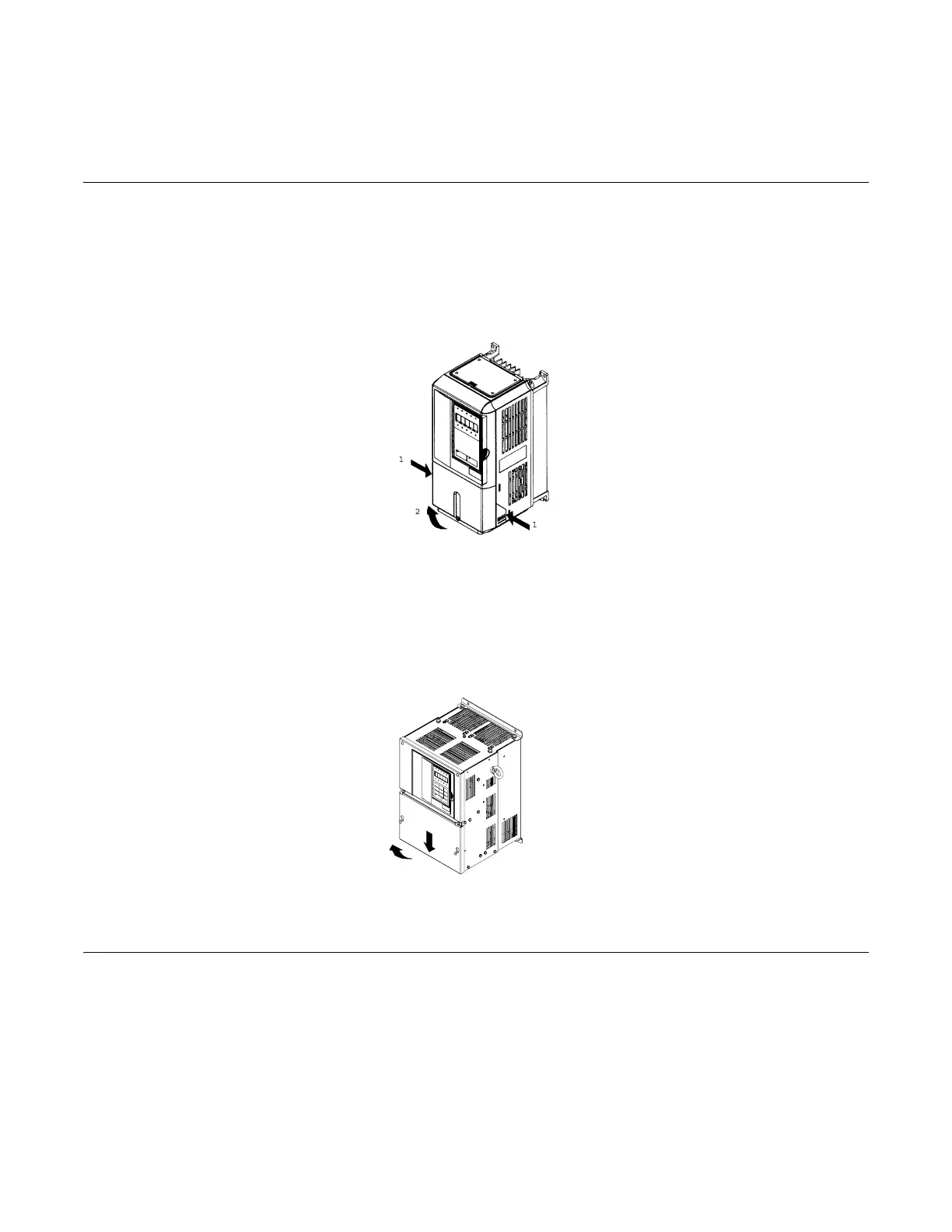

Fig 1.9 Removing the Terminal Cover
Models CIMR-E7U2022 thru 2110 and 4030 thru 4300
Loosen the screws on the left and right at the top of the terminal cover, pull down the terminal cover in the direction of arrow 1
and then lift up on the terminal cover in the direction of arrow 2.
Fig 1.10 Removing the Terminal Cover
Attaching the Terminal Cover
After wiring the terminal block, attach the terminal cover by reversing the removal procedure.
For Models CIMR-E7U2018/4018 and smaller, insert the tab on the top of the terminal cover into the groove on the Drive and
press in on the bottom of the terminal cover until it clicks into place.
For Drives CIMR-E7U2022/4030 and larger, insert the tab on the top of the terminal cover into the groove on the Drive, and
place the terminal cover by lifting it up toward the top of the Drive.
