Removing/Attaching Digital Operator and Front Cover
Models CIMR-E7U20P4 thru 2018 and 40P4 thru 4018
For Models CIMR-E7U2018/4018 and smaller, remove the terminal cover and then use the following procedures to remove
the Digital Operator and front cover.
Removing the Digital Operator
Press on the side of the Digital Operator in the direction of arrow 1 to unlock the Digital Operator and lift the Digital Operator
in the direction of arrow 2 to remove the Digital Operator as shown in Fig 1.13.

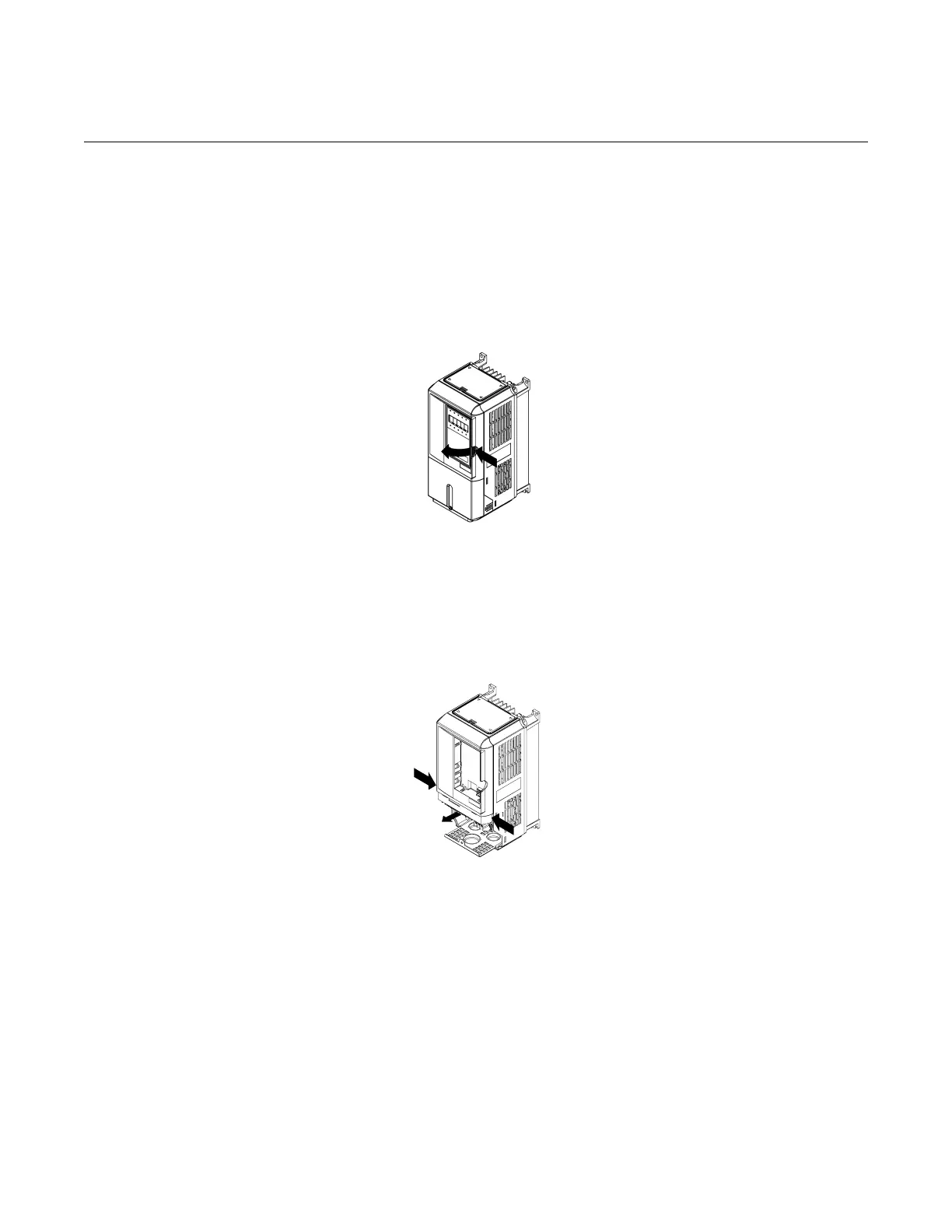

Fig 1.11 Removing the Digital Operator
Removing the Front Cover
Press the left and right sides of the front cover in the direction of arrows 1 and lift the bottom of cover in the direction of arrow
2 to remove cover as shown in Fig 1.14.
Fig 1.12 Removing the Front Cover
Mounting the Front Cover
Mount the front cover to the Drive by performing the steps to remove the front cover in reverse order.
1. Do not mount the front cover with the Digital Operator attached to the front cover; otherwise, Digital Operator may
malfunction due to imperfect contact.
2. Insert the tab of the upper part of the front cover into the groove of the Drive and press the lower part of the front cover onto
the Drive until the front cover snaps shut.
2
1
1
2
