Digital Operator 3 - 14
Modified Constants Menu
This menu is used to set/read the parameters that have been modified from their original factory default settings. Follow the
key operations below to access the Modified Constants Menu.

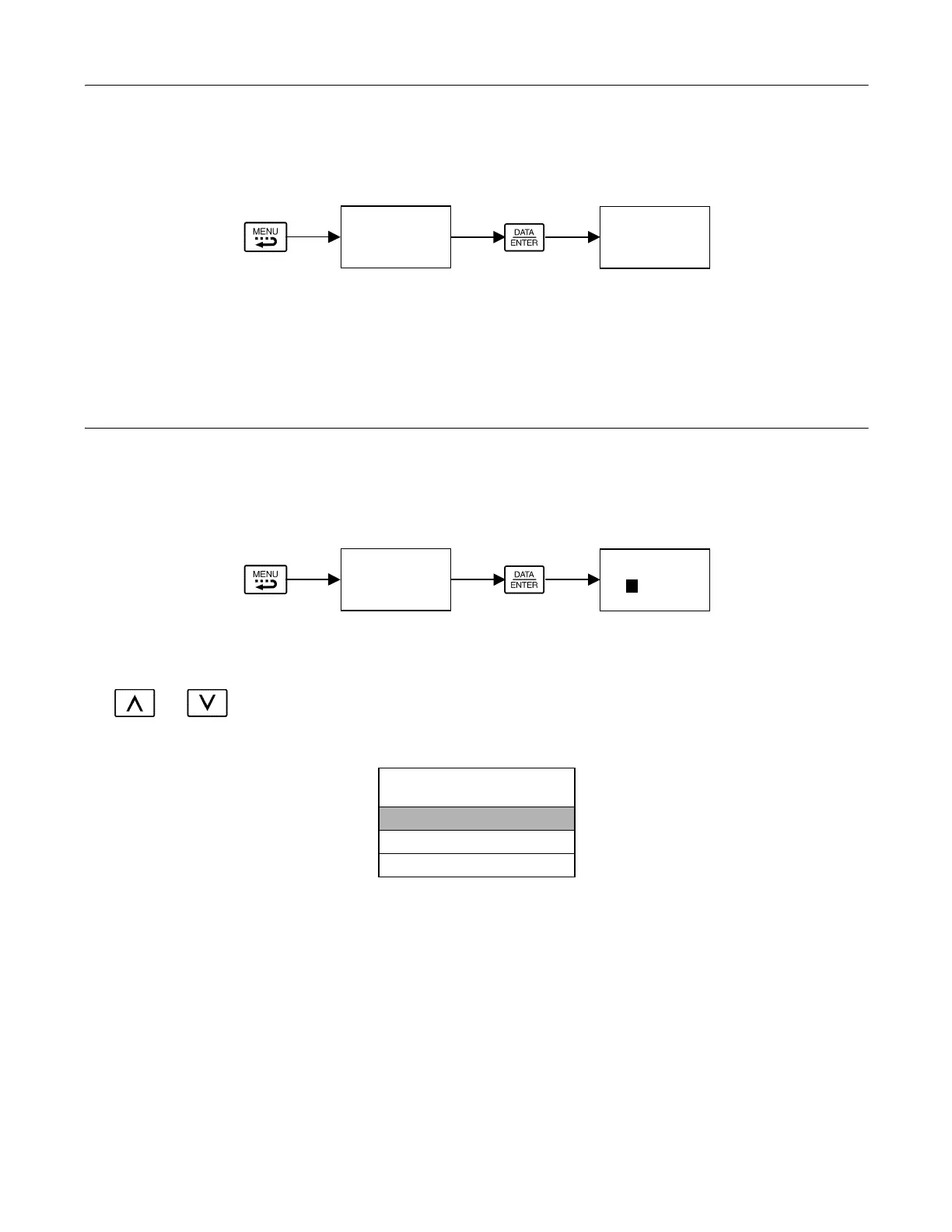

Fig 3.8 Modified Constants Menu Access Procedure
If there are not any parameters that have been modified from their original factory default settings, then the display will state
“None Modified”. Otherwise, use the “increase” and “decrease” keys to scroll through the “Modified Constants” list.
Auto-Tuning Menu
This menu is used to auto-tune the Drive in order to optimize motor control as well as utilize the bi-directional speed search
feature. Follow the key operations below to access the Auto-Tuning Menu.
Fig 3.9 Auto-Tuning Menu Access Procedure
Use and keys to scroll through the “Auto-Tuning” parameter list.
Table 3.13 Auto-Tuning
Parameter List
Auto-Tuning Parameters
T1-02 Mtr Rated Power
T1-04 Rated Current
-VERIFY-
** Main Menu **
- - - - - - - - - - - - - -
Modified Consts
See Note 1
x4
See Note 1
-A.TUNE-
** Main Menu **
- - - - - - - - - - - - - -
Auto-Tuning
-A.TUNE-
Mtr Rated Power
- - - - - - - - - - - - - - - - - - - -
1-02 = 0.40kW
(0.00~650.00)
0.40kW
x5
To Next Page
