Digital Operator 3 - 3
Digital Operator Keys
The names and functions of the Digital Operator Keys are described in Table 3.1.

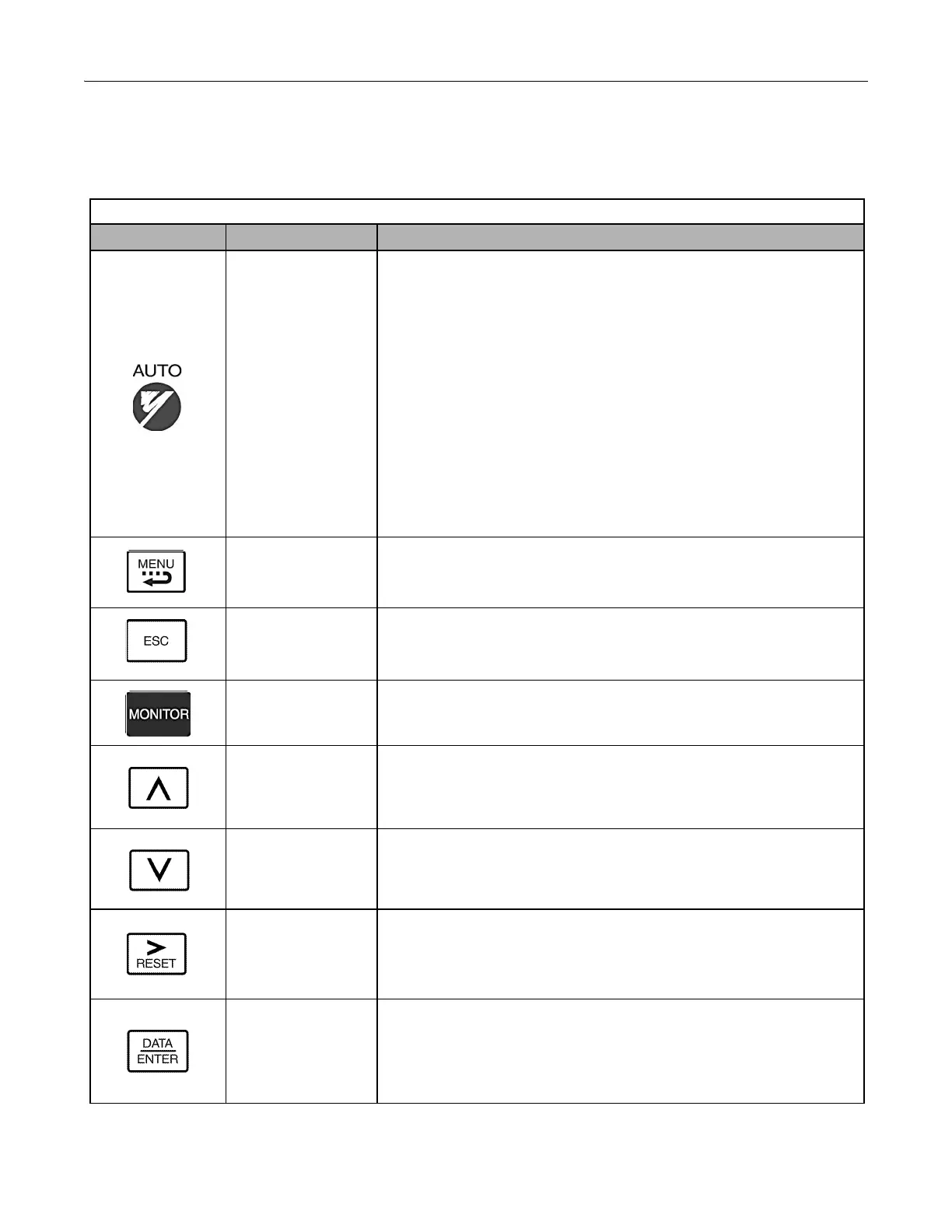

Table 3.1 Digital Operator Keys
Key Name Function
AUTO Key
• Pressing the AUTO key will put the Drive in the “Auto” mode.
• In the “Auto” mode, the Drive will be capable of starting/stopping depending on
the setting of parameter “b1-02” (Run Command Selection).
• In the “Auto” mode, the Drive speed command will depend on the setting of
parameter “b1-01” (Frequency Reference Selection).
• If the OFF key is pressed, the “Auto” mode frequency reference will continue to
be displayed on the keypad.
• Pressing the AUTO key will start the Drive if the run command is already closed.
• If the Drive is running in the “Auto” mode and the OFF key is pressed, the Drive
will stop. If the run command remains closed, pressing the AUTO key will restart
the Drive.
• While the Drive is running, the run command can be opened to stop and closed to
restart without taking the Drive out of the “Auto” mode.
• The Drive must be in a stopped condition before it can be transferred to “Auto” or
“Hand” mode.
MENU Key Scrolls through the five main menus.
ESCAPE Key Returns to the display before the DATA/ENTER key was pressed.
MONITOR Key
Selects the monitor mode from the Operation, Quick Setting, Programming and
Modified Constants menus.
INCREASE Key
Increases parameter numbers and set values.
Used to move to the next item or data value.
DECREASE Key
Decreases parameter numbers and set values.
Used to move to the previous item or data value.
SHIFT/RESET Key
Selects the digit to be changed. The selected digit will blink.
Also resets the Drive when a fault has occurred.
DATA/ENTER Key Pressed to enter menus and parameters as well as to set values.
