1.2 Catalog Code and Nameplate Check
18 YASKAWA TOEPYAIH6B01A HV600 AC Drive Narrow Bypass Installation & Startup

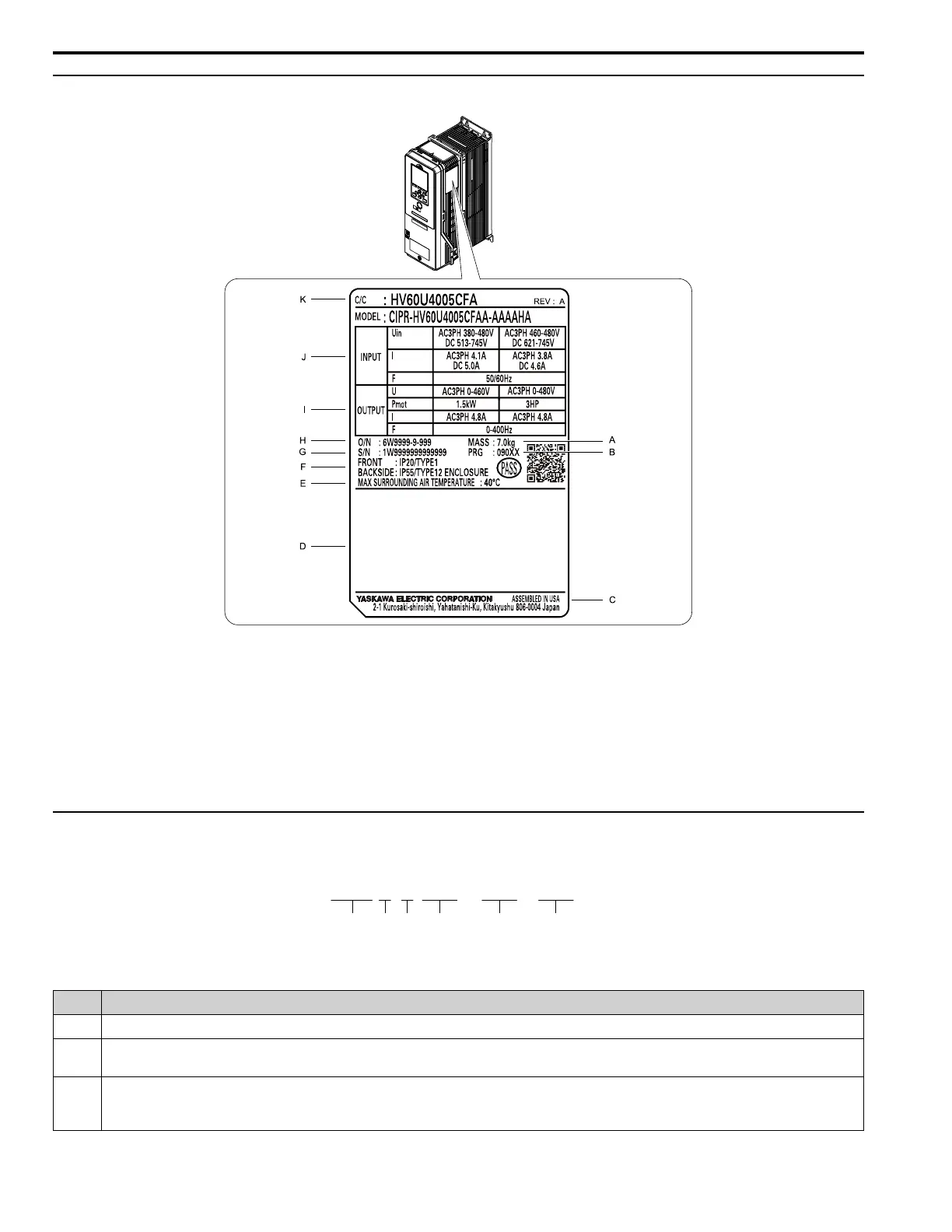

Drive Nameplate
A - Weight
B - Drive software version
C - The address of the head office of Yaskawa
Electric Corporation
D - Accreditation standards
E - Ambient Temperature Setting
F - Protection design
G - Product number
H - Serial number
I - Output specifications
J - Input specifications
K - Catalog code
Figure 1.2 Drive Nameplate Location
How to Read Narrow Bypass Catalog Codes
Use the information in Figure 1.3 and Table 1.1 to read the bypass catalog codes.
Figure 1.3 Narrow Bypass Catalog Code
Table 1.1 Narrow Bypass Catalog Code Details
No. Description
1 Product series
2 Bypass type
P: Narrow
3 Input power supply voltage
D: Three-Phase 208 V
B: Three-Phase 480 V
1 2 4
H6B P D 004 P T S
3
M/G/B
W/L/D
5 6
