Mechanical Installation
2

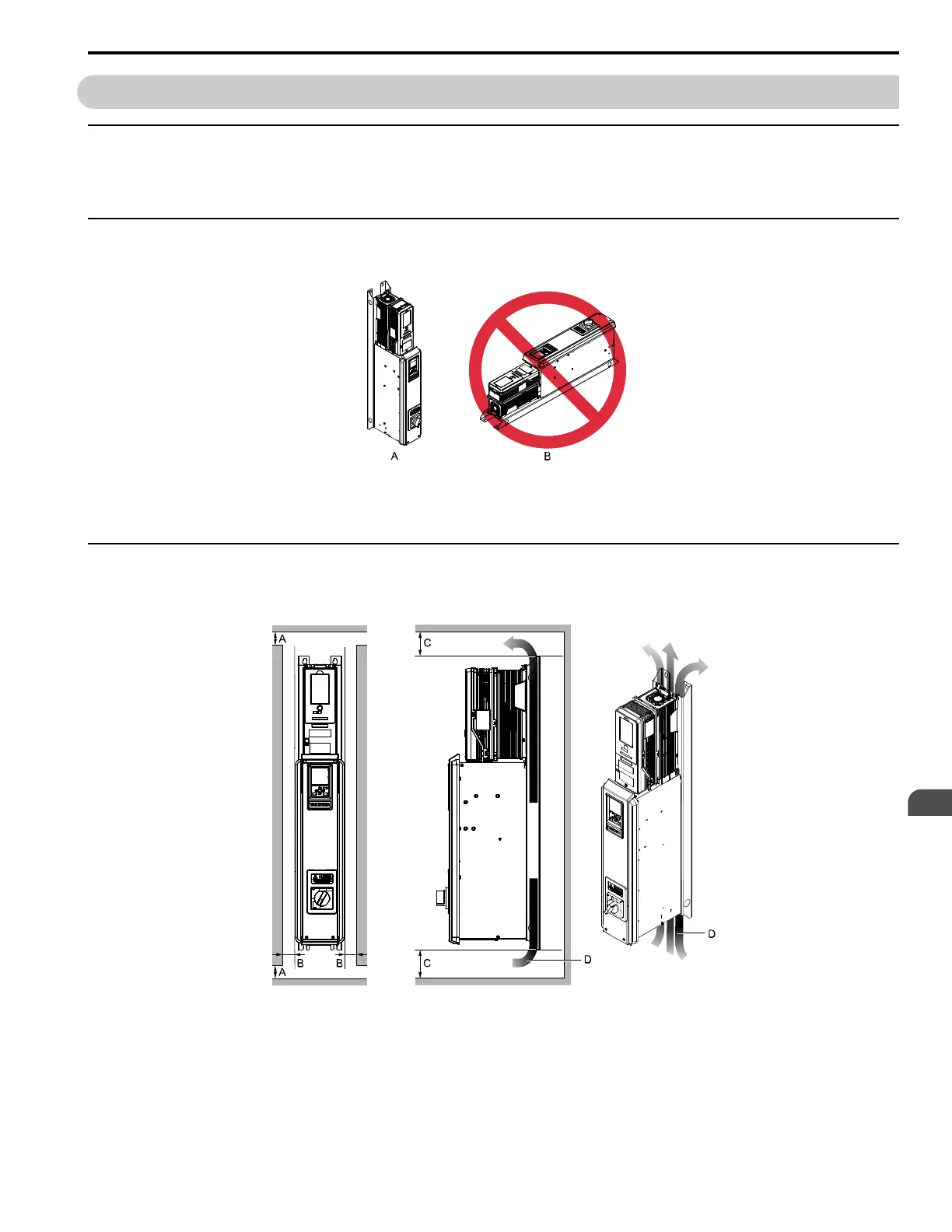

2.3 Narrow Bypass Installation Position and Clearances
YASKAWA TOEPYAIH6B01A HV600 AC Drive Narrow Bypass Installation & Startup 25
2.3 Narrow Bypass Installation Position and Clearances
â—† Installation Dimensions
Refer to the Dimension Drawing (DD.HB.x.xx.xx) packaged with the bypass for exterior and mounting dimensions
for your model.
â—† Installation Position
Install the bypass vertically for sufficient cooling airflow.
A - Vertical installation B - Horizontal installation
Figure 2.1 Installation Position
â—† Single Narrow Bypass Installation Clearances
Use the clearances specified in Figure 2.2 to install the bypass. Make sure that there is sufficient space for wiring and
airflow.
A - 50 mm (2 in) minimum
B - 30 mm (1.2 in) minimum
C - 120 mm (4.7 in) minimum
*1
D - Airflow direction
Figure 2.2 Single Bypass Installation
*1 This is the distance from a component or mounting bracket that has the maximum height. The highest component is different for different
models.
