3.3 Main Circuit Wiring
44 YASKAWA TOEPYAIH6B01A HV600 AC Drive Narrow Bypass Installation & Startup

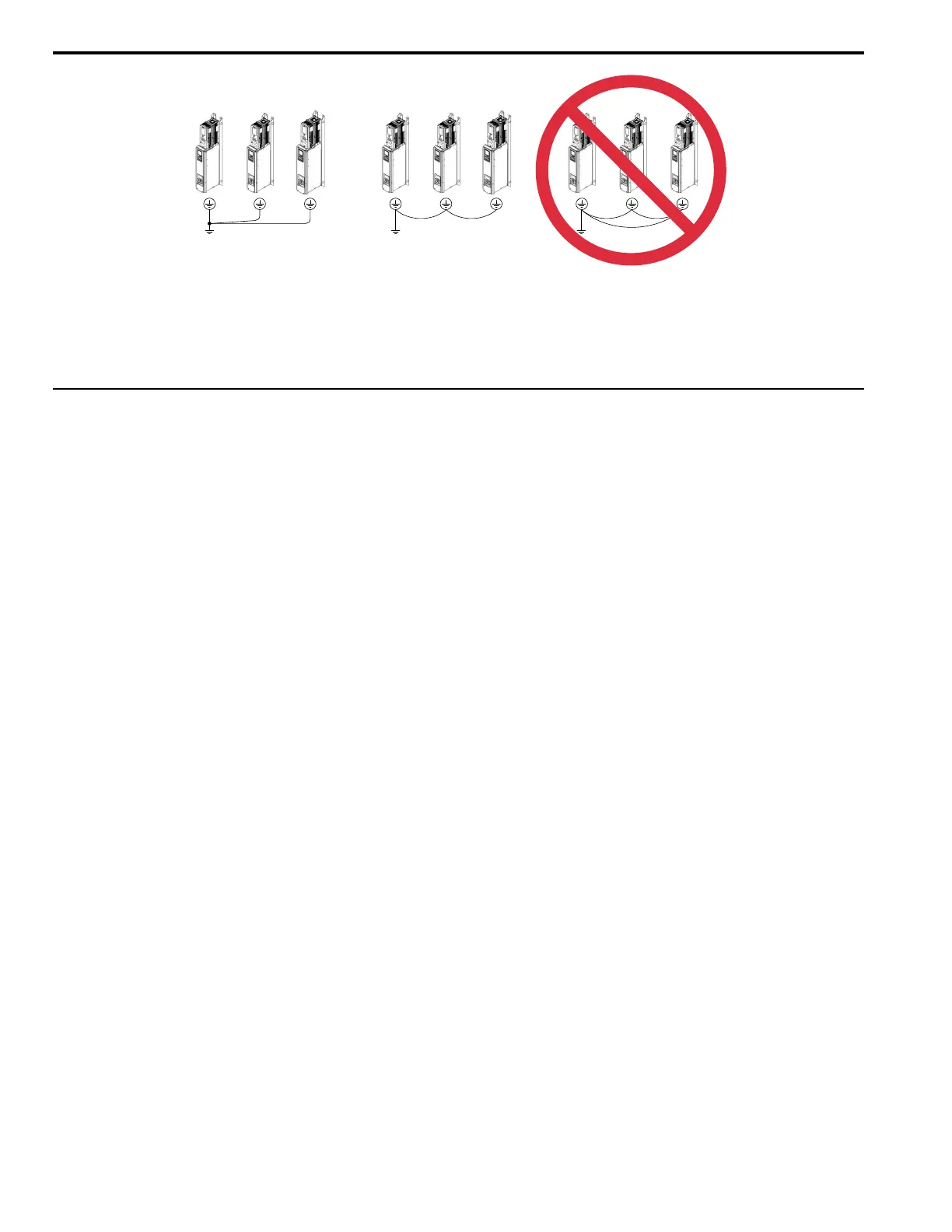

Figure 3.3 Wiring More than One Bypass
â– Wiring the Main Circuit Terminal Block
WARNING! Electrical Shock Hazard. Before you wire the main circuit terminals, make sure that MCCB and MC are OFF. If you
touch electrical equipment when MCCB and MC are ON, it can cause serious injury or death.
â—† Protection of Main Circuit Terminals
When you wire the main circuit terminals, do not let cable ends go near terminals or the drive. If you use crimped
terminals, make sure that you also use insulation caps.
