Removing and Attaching the Terminal Cover
1-11
Removing and Attaching the Terminal Cover
Remove the terminal cover to wire cables to the control circuit and main circuit terminals.
îš‹ Removing the Terminal Cover
îš„ Inverters of 15 kW or Less

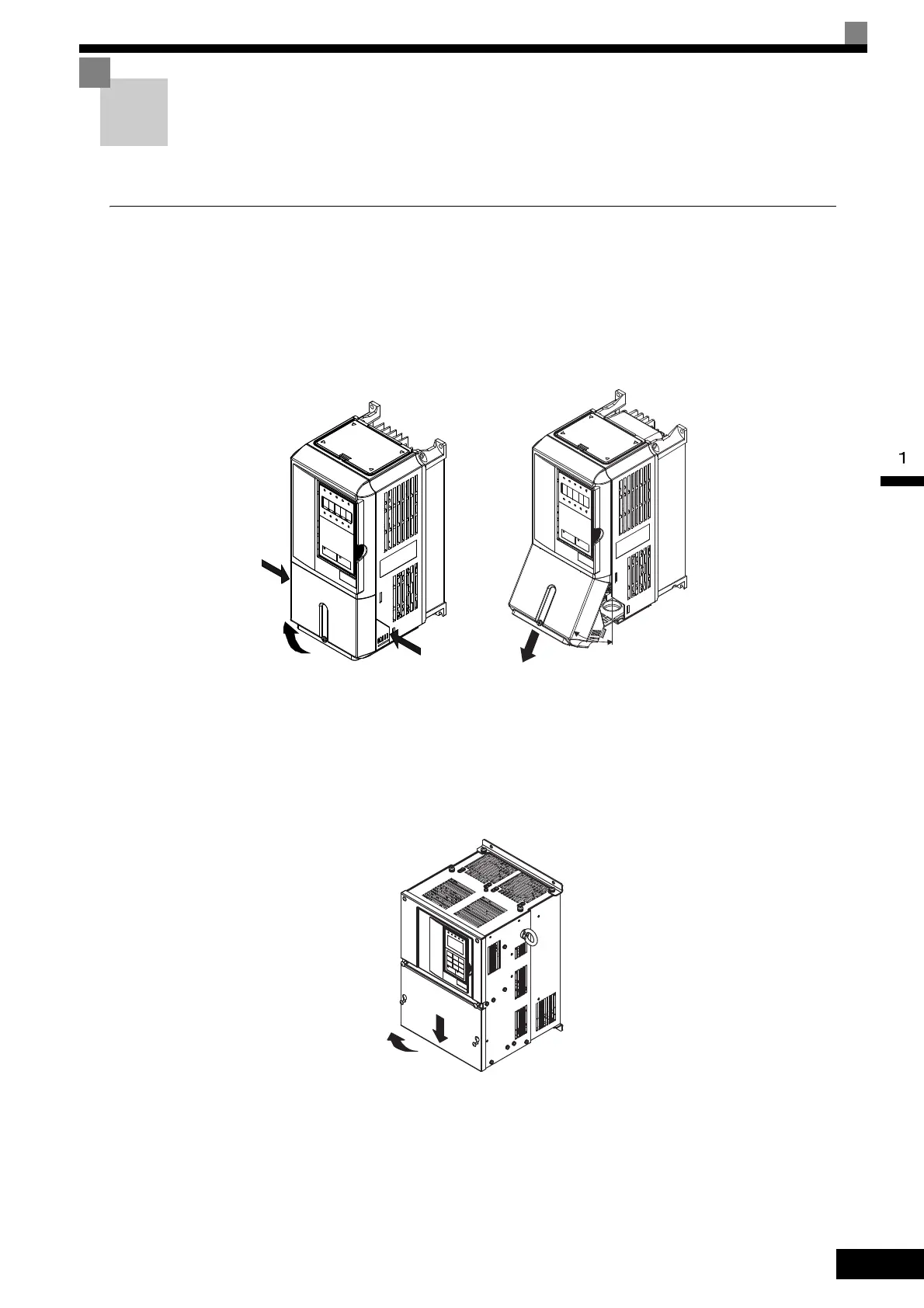

Loosen the screws at the bottom of the terminal cover, press in on the sides of the terminal cover in the direc-
tion indicated by arrow 1, and then lift the terminal cover up to an angle of about 30 degrees in the direction
indicated by arrow 2.
Remove the terminal cover in the direction indicated by arrow 3.
Fig 1.9 Removing the Terminal Cover (Model CIMR-G7B23P7 Shown Above)
îš„ Inverters of 18.5 kW or More
Loosen the screws on the left and right at the top of the terminal cover, pull out the terminal cover in the direc-
tion of arrow 1 and then lift up on the terminal in the direction of arrow 2.
Fig 1.10 Removing the Terminal Cover (Model CIMR-G7B2018 Shown Above)
To Next Page
