Adjusting the Meter
The output voltage for terminals FM-AC and AM-AC and output channels 1 and 2 of the AO option board can
be adjusted while the Inverter is stopped. For example, just pressing the Enter Key and displaying the data set-
ting display for H4-02 or H4-03 will cause the following voltage to be output by the FM-AC terminals.
10 V/100% monitor output × output gain (H4-02) + output bias (H4-03)
Just pressing the Enter Key and displaying the data setting display for F4-02 or F4-05 will cause the following
voltage to be output to channel 1 of the AO option board.
10 V/100% monitor output × output gain (H4-02) + output bias (H4-05)

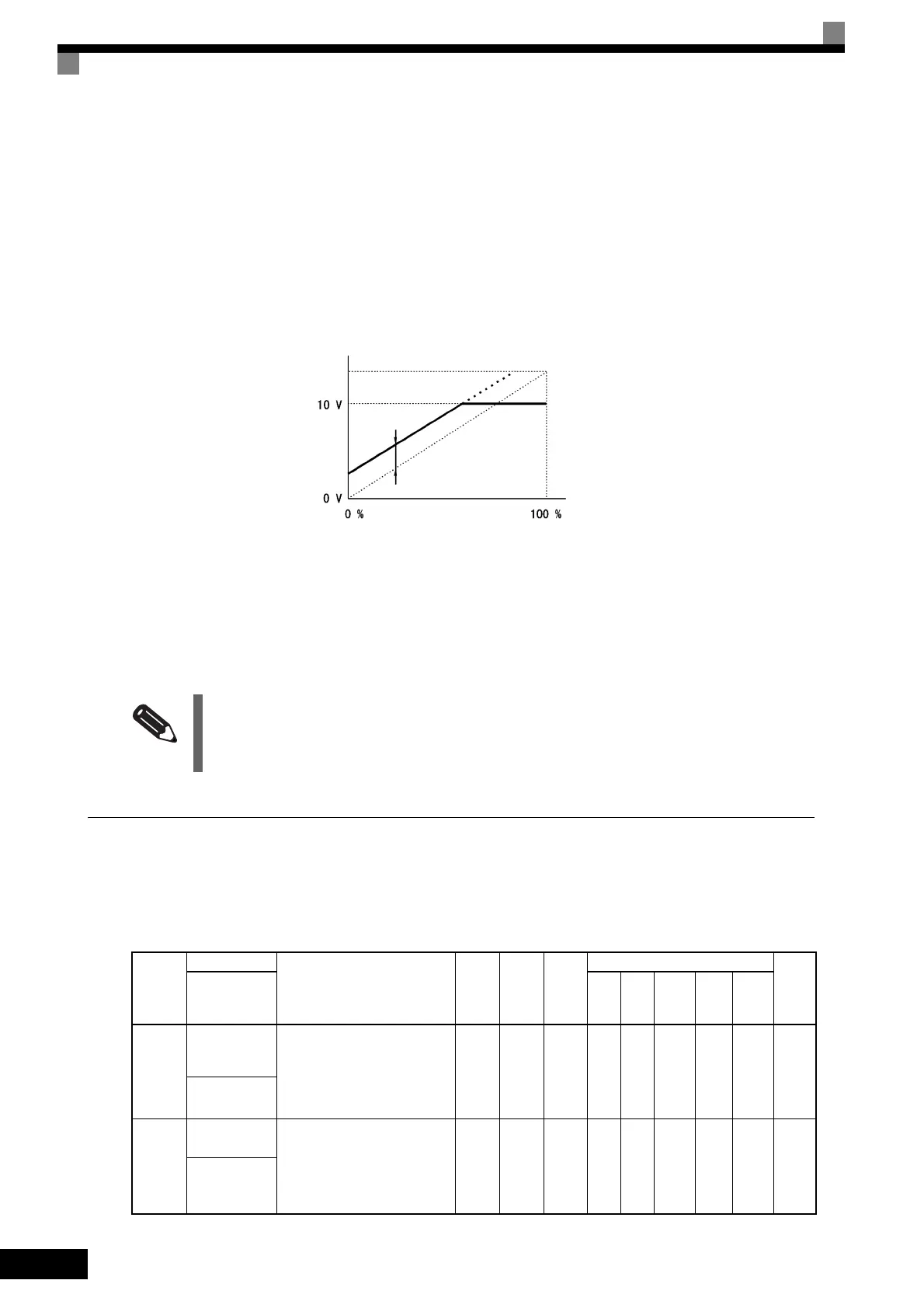

Fig 6.57 Monitor Output Adjustment
Switching Analog Monitor Signal Levels
Monitor items corresponding to -10 to 10 V output 0 to 10 V signals when the monitor value is positive (+),
and 0 to -10 V signals when the monitor value is negative (-). For monitor items corresponding to -10 to 10 V,
refer to Chapter 5 User Constants.
 Using Pulse Train Monitor Contents
This section explains pulse monitor constants.
Related Constants
INFO
You can select the signal levels separately for multi-function analog output terminals and analog output option
terminals.
Con-
stant
Number
Name
Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Control Methods
MEMO
BUS
Regis-
ter
Display
V/f
V/f
with
PG
Open
Loop
Vector
1
Flux
Vec-
tor
Open
Loop
Vector
2
H6-06
Pulse train
monitor selec-
tion
Select the pulse train monitor out-
put items (value of the  part
of U1-).
There are two types of monitor
items: Speed-related items and
PID-related items.
1, 2, 5,
20, 24,
36
2 Yes A A A A A 431H
脉冲监视选择
H6-07
Pulse train
monitor scaling
Set the number of pulses output
when speed is 100% in hertz.
Set H6-06 to 2, and H6-07 to 0, to
make the pulse train monitor out-
put synchronously to the output
frequency.
0 to
32000
1440
Hz
Yes A A A A A 432H
脉冲监视比例
Output voltage
Gain x 10 V
Bias x 10/100 V
Monitor item
