Terminal Block Configuration
2-5
Terminal Block Configuration

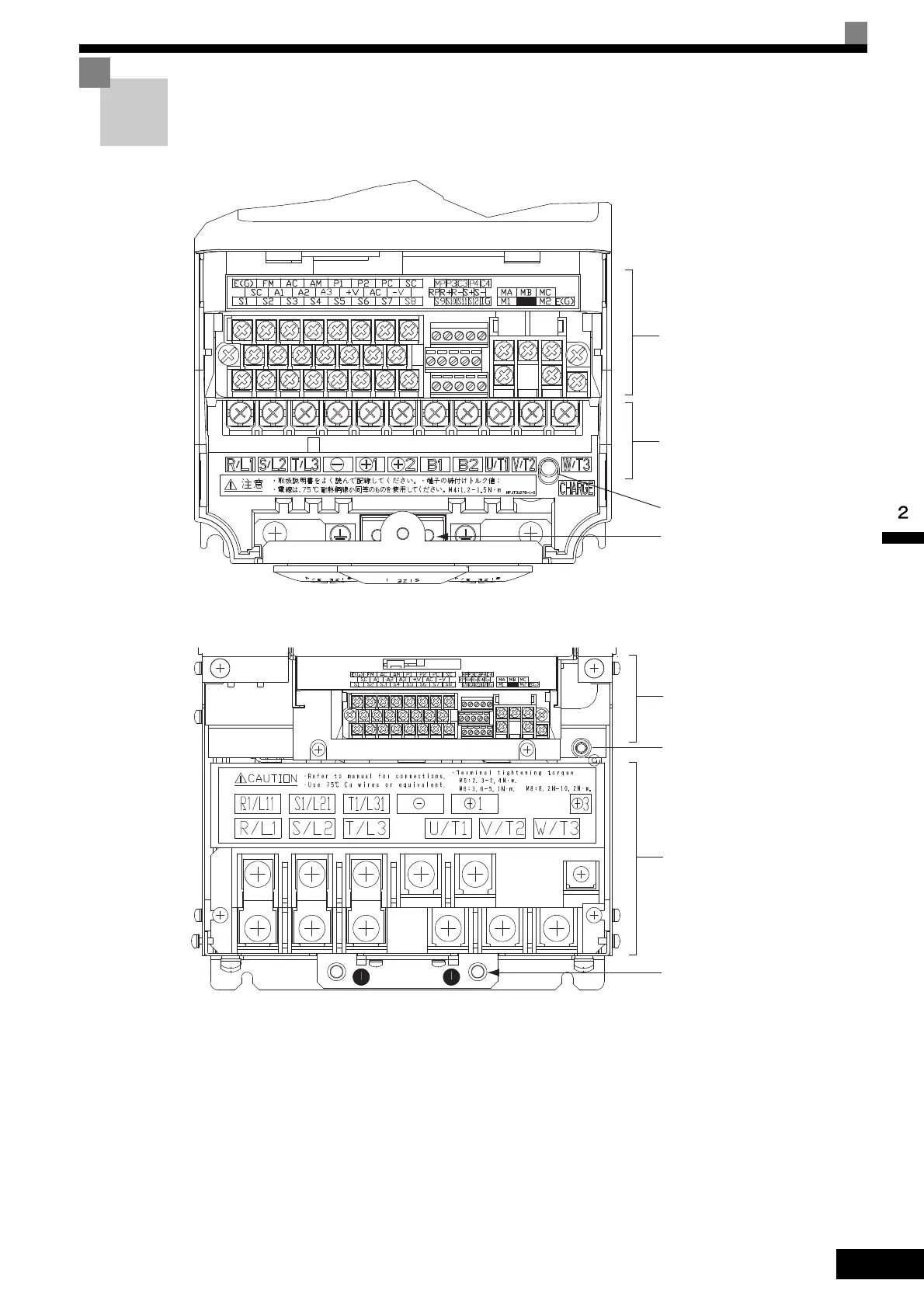

The terminal arrangement for 200 V Class Inverters are shown in Fig 2.3 and Fig 2.4.
Fig 2.3 Terminal Arrangement (200 V Class Inverter for 0.4 kW Shown Above)
Fig 2.4 Terminal Arrangement (200 V Class Inverter for 18.5 kW Shown Above)
Control circuit terminals
Main circuit terminals
Charge indicator
Ground terminal
Control circuit terminals
Charge indicator
Main circuit terminals
Ground terminal
