10-18

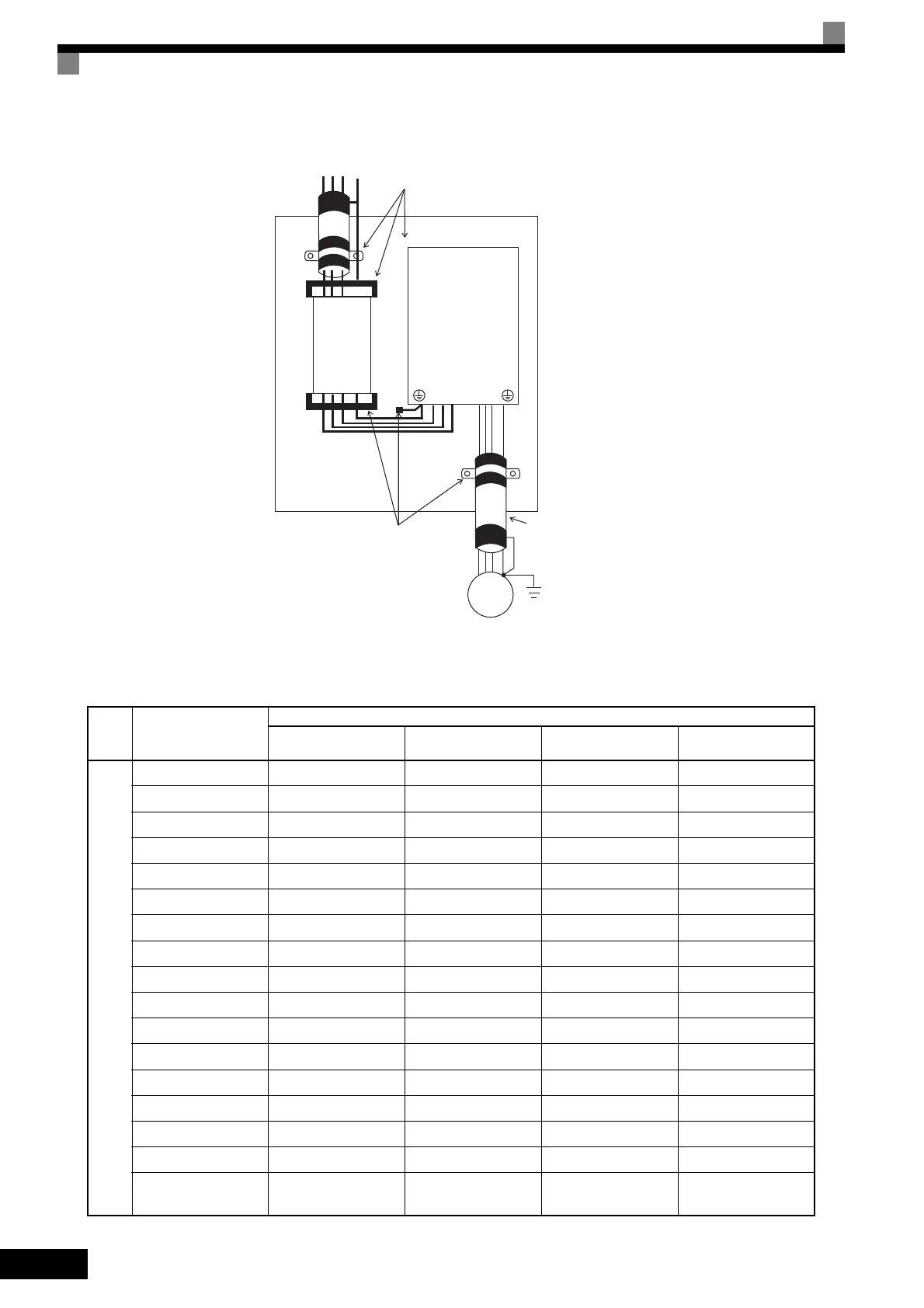

Fig 10.8 Installation Method for Filter and Inverter (CIMR-G7B2018 to 2110, 4018 to 4300)
Table 10.5 EMC Noise Filters
Volt-
age
Class
Inverter Model
Number
CIMR-G7B
Noise Filter (Made by Schaffner)
Model Number Rated Current (A) Weight (kg) Dimensions (mm)
200V
Class
20P4 FS5972-10-07 10 1.1 141 × 46 × 330
20P7 FS5972-10-07 10 1.1 141 × 46 × 330
21P5 FS5972-18-07 18 1.3 141 × 46 × 330
22P2 FS5973-35-07 35 1.4 141 × 46 × 330
23P7 FS5973-35-07 35 1.4 141 × 46 × 330
25P5 FS5973-60-07 60 3 141 × 46 × 330
27P5 FS5973-60-07 60 3 206 × 60 × 355
2011 FS5973-100-07 100 4.9 236 × 80 × 408
2015 FS5973-100-07 100 4.9 236 × 80 × 408
2018 FS5973-130-35 130 4.3 90 × 180 × 366
2022 FS5973-130-35 130 4.3 90 × 180 × 366
2030 FS5973-160-40 160 6 120 × 170 × 451
2037 FS5973-240-37 240 11 130 × 240 × 610
2045 FS5973-240-37 240 11 130 × 240 × 610
2055 FS5972-400-99 400 18.5 300 × 160 × 610
2075 FS5972-400-99 400 18.5 300 × 160 × 610
2090
2110
FS5972-460-99 460 19.5 300 × 160 × 610
PE
IM
Remove the paint on the ground side.
Inverter
Inputs
Filter
Outputs
Wiring length: 20 m max.
Remove the paint on the ground side.
Wiring length:
40 cm max.
Metallic plate
R/L1, S/L2, T/L3
R/L1, S/L2, T/L3
U/T1, V/T2, W/T3
