Modes
3-11
Setting User Constants
Here, the procedure is shown to change C1-01 (Acceleration Time 1) from 10 s to 20 s.

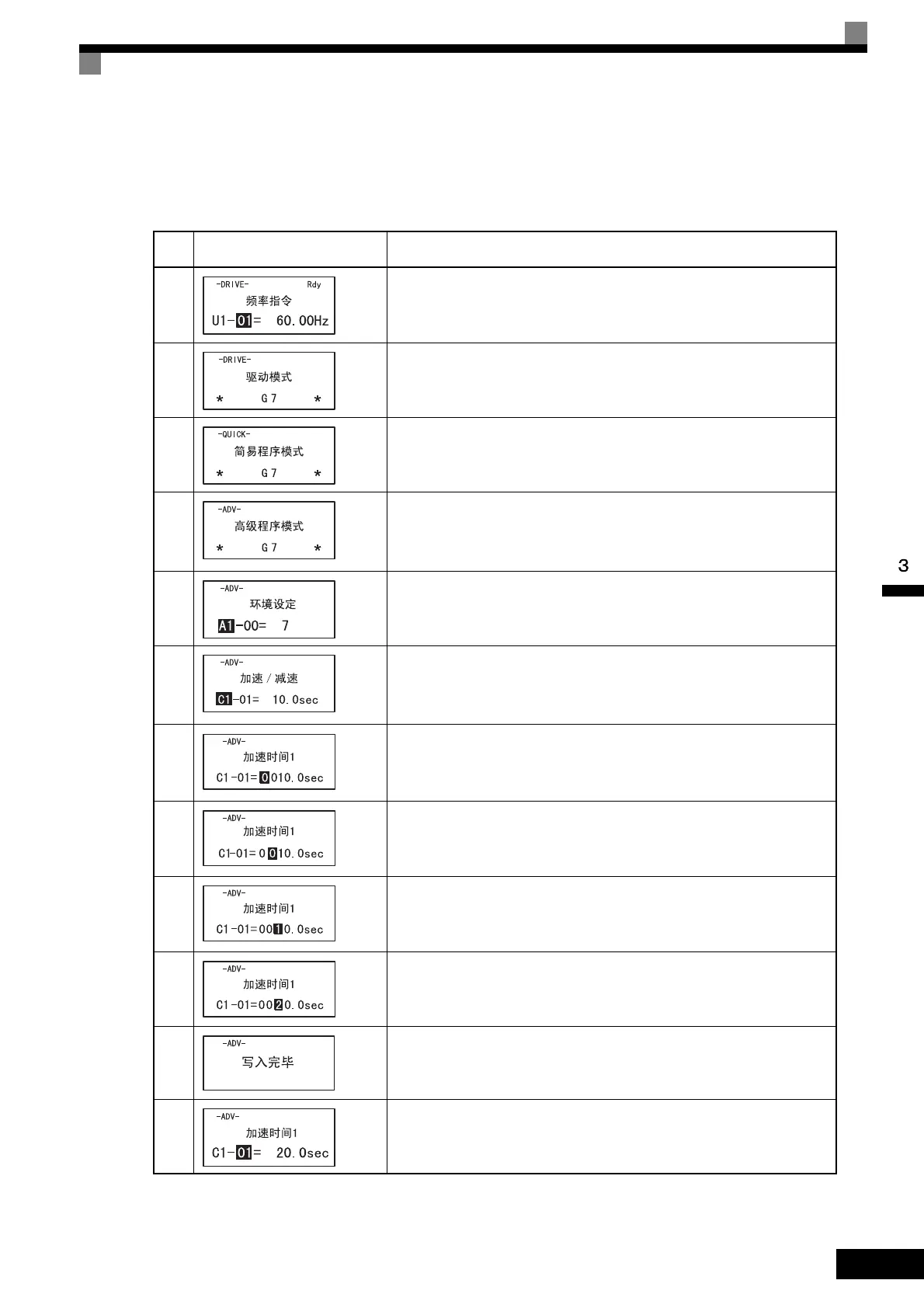

Table 3.4 Setting User Constants in Advanced Programming Mode
Step
No.
Digital Operator Display Description
1 Power supply turned ON.
2 MENU Key pressed to enter drive mode.
3 MENU Key pressed to enter quick programming mode.
4 MENU Key pressed to enter advanced programming mode.
5 DATA/ENTER pressed to access monitor display.
6 Increment or Decrement Key pressed to display C1-01 (Acceleration Time 1).
7
DATA/ENTER Key pressed to access setting display. The setting of C1-01
(10.00) is displayed.
8 Shift/RESET Key pressed to move the flashing digit to the right.
9 Increment Key pressed to change set value to 20.00 s.
10 DATA/ENTER Key pressed to enter the set data.
11
“ 写入完毕 ” is displayed for 1.0 s after the data setting has been confirmed
with the DATA/ENTER Key.
12 The monitor display for C1-01 returns.
To Next Page
