YASKAWA YRC1000micro

HW1484764
Configuring Each Function
3-8
HW1484764
3.3.1. Disabling Collaborative Operation by Changing the Safety Logic Circuit
To disable collaborative operation (i.e., muting) by changing the safety logic circuit, use the following
steps:

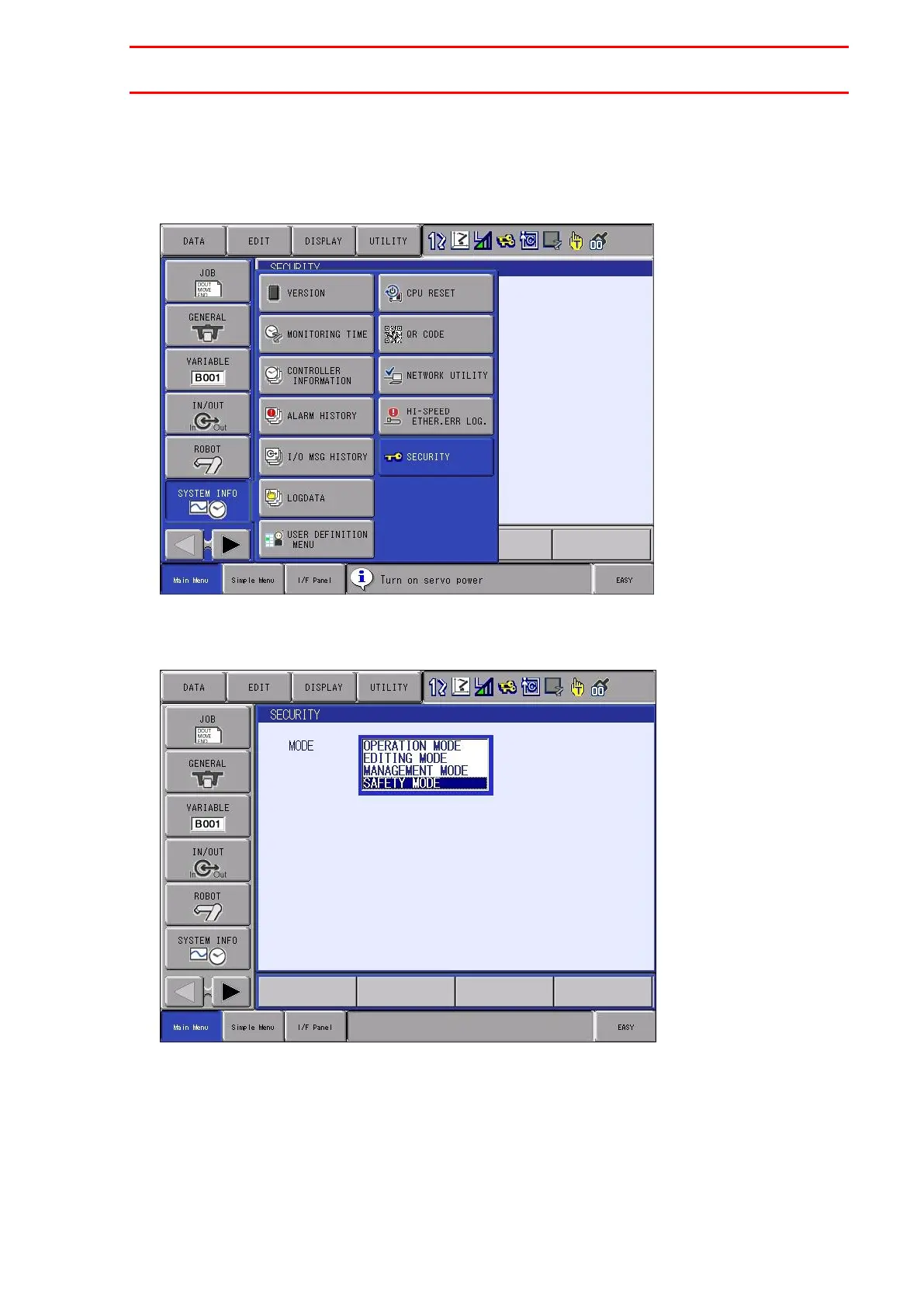

(1) Select {SYSTEM INFO} - {SECURITY} under the main menu.
(2) Under Security Mode, select "SAFETY MODE". For Safety Mode, the initial password is set to
"5555555555555555".
31/105
