Yealink T22P Guide

Enterprise IP Phone Using the Basic Call Functions
- 39 -

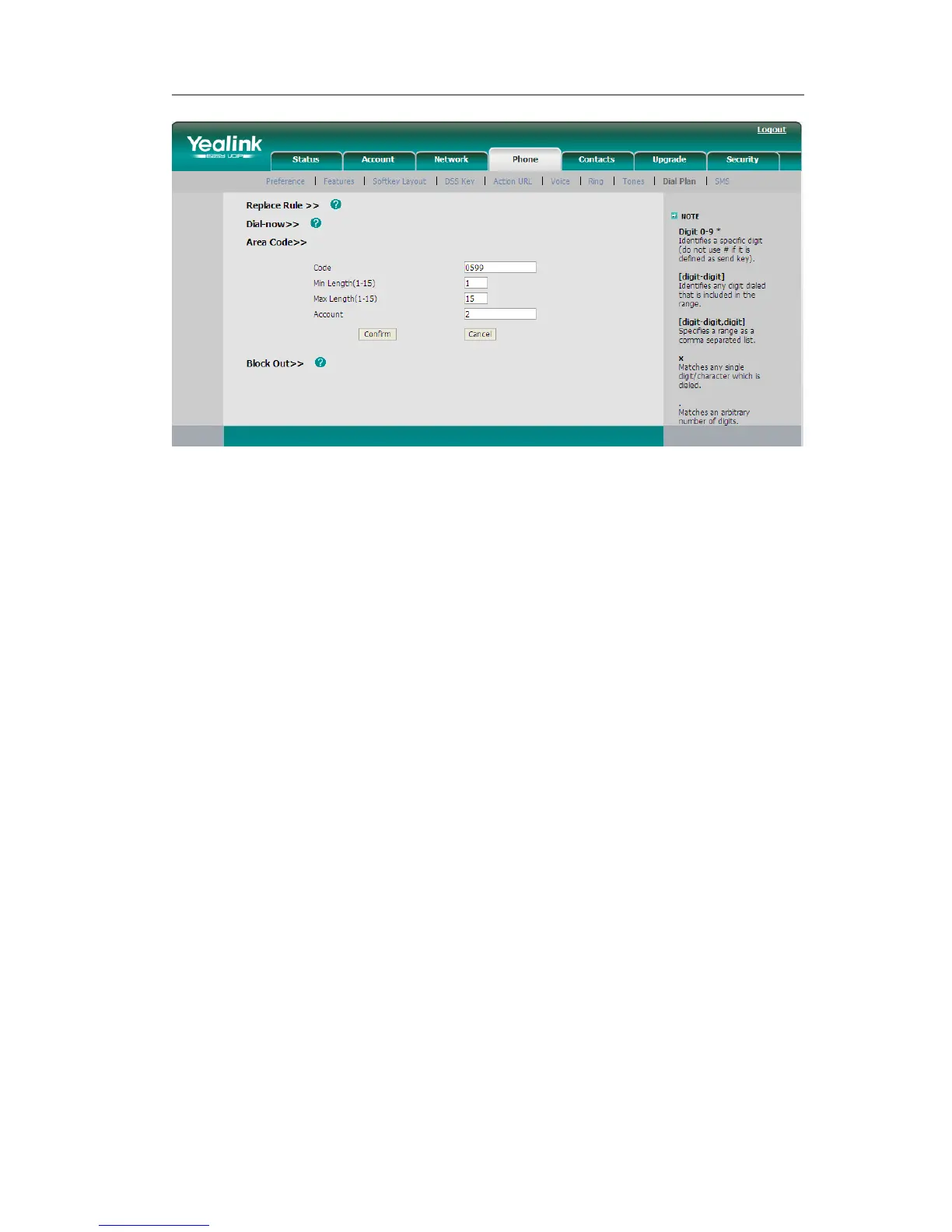

2) Enter the Code and Account, set the Min Length and the Max Length option, and
then click the Confirm button to save.
Block Out
The specific phone numbers can be forbidden to be call out from your IP phone.
1) Choose Phone->Dial Plan->Block Out.
2) Enter the phone number and Account, and then click Add button to save the
changes, or choose the specific one in the list, click Delete button to delete the
record.
3) You can select a record to modify, then click Edit button to submit.
4) You can not dial out the number from your IP phone unless it is removed from the
Forbidden List.

Yealink T22P Specifications

General

Protocol	SIP
Power over Ethernet	Yes (IEEE 802.3af)
Weight	0.77kg
Audio Features	Full-duplex speakerphone
Lines	3
Codecs	G.722, G.711
Standards Compliance	IEEE802.3af
Dimensions	209mm x 188mm x 150mm x 41mm
Headset Port	RJ9
