6-4
IM AQ1210-01EN
Note
• When you set the markers, set them so that the
1
marker is on the measurement start point S side.
• The measured loss value differs depending on the specified approximation method.
• Set the correct position for
2
. The splice loss changes greatly depending on the position of
2
.
• For details on the approximation method, see “Approximation Method (Markers)” in section 2.2.
• For details on how to use 2 Point Markers, 5 Point Markers, 6 Point Markers, see “Soft Key Menu
(Markers).”
Marker Analysis Results
Splice loss and return loss values are displayed on the screen as marker analysis results.
For the analysis procedure of splice loss and return loss, see the explanation.

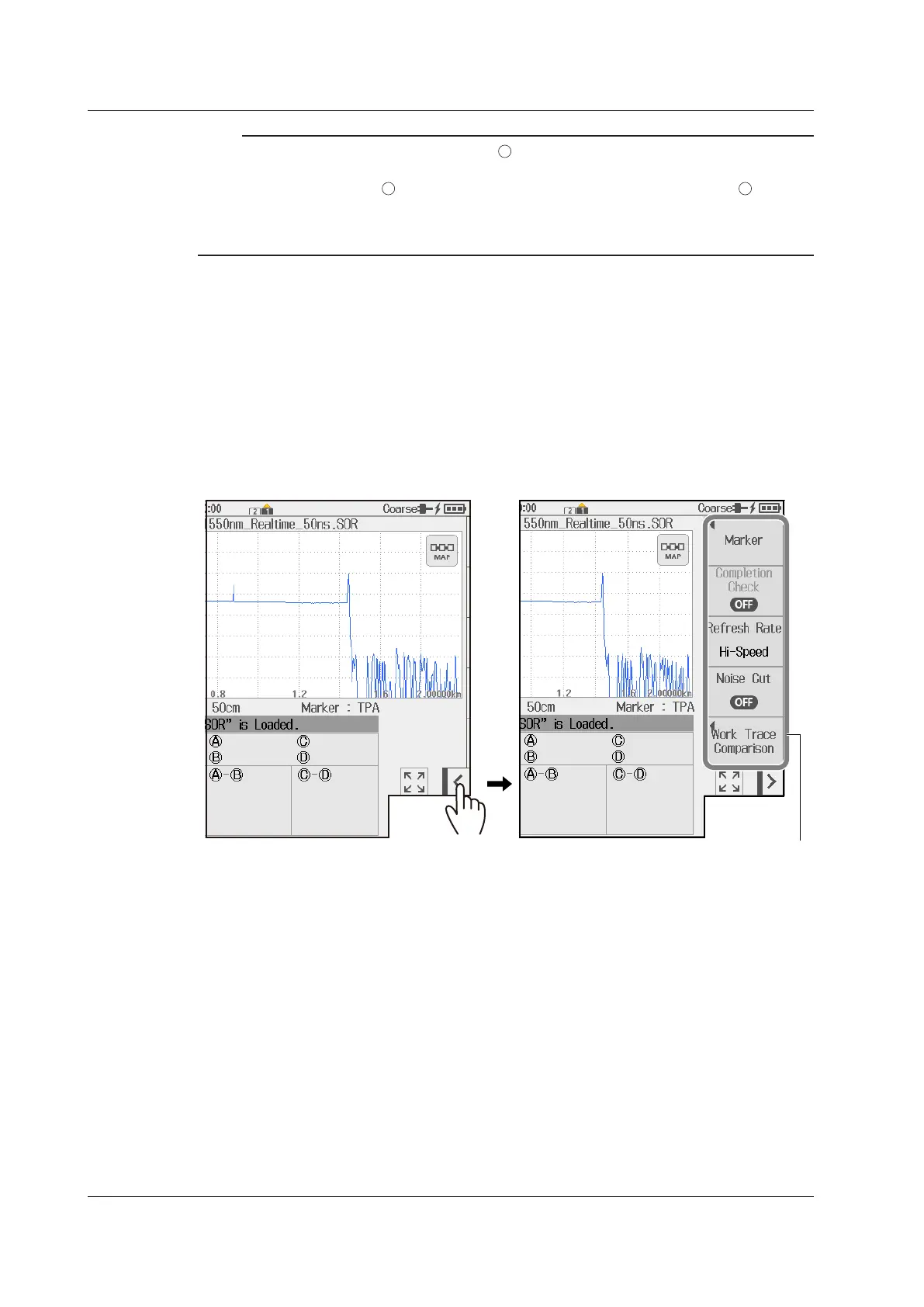

Soft Key Menu (Markers)
5.
Tap the soft key menu display button.
The menu that can be used during real-time measurement or the menu that can be used not during real-
time measurement is displayed automatically depending on the usage condition. The marker soft keys are
displayed in either usage condition.
Soft key menu
During real-time measurement
6.1 Operating Cursors and Markers
To Next Page
