6-11
IM AQ1210-01EN
Analyzing Waveforms
6
Presetting Markers
7.
Using 2 Point Markers, 4 Point Markers, or 6 Point Markers (pages 6-6 to 6-9), place markers
on the waveform data.
8.

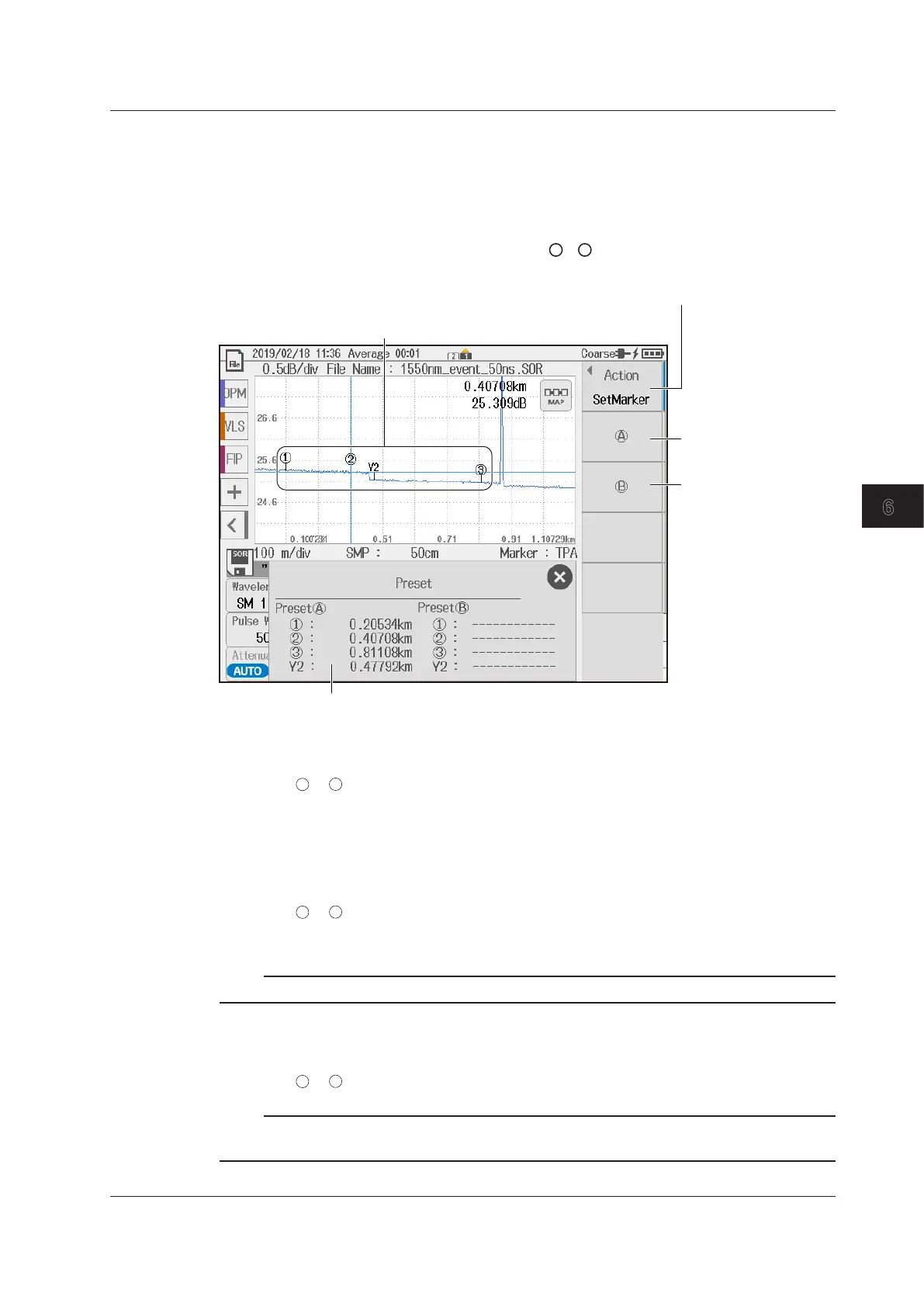

Tap the Preset soft key to display the preset soft key menu.
Registers the markers (e.g., 4 Point Markers)
on the current waveform data.
Select the action (Register, Delete, SetMarker)
Select the action to perform when you tap the or soft key.
Register: Registers the markers on the current waveform data to preset A or preset B.
Delete: Deletes the markers registered in preset A or preset B.
SetMarker: Displays the markers registered in preset A or preset B on the waveform.
A B
Displays the information of the markers registered in the preset.
Executes the action
on preset A
Executes the action
on preset B
• Registering Markers
9.
Tap the Action soft key to select Register.
10.
Tap the
or
soft key. The markers applied to the waveform are registered, and the marker
information is displayed on the preset information display screen.
• Setting the Markers Registered in Preset A or Preset B
11.
Display the measurement target waveform data on the data display screen.
12.
Tap the Action soft key to select SetMarker.
13.
Tap the
or
soft key. The markers registered in preset A or preset B are displayed on the
waveform data.
Note
Preset markers exceeding the distance range of the waveform display cannot be applied.
• Deleting the Markers Registered in Preset A or Preset B
9.
Tap the Action soft key to select Delete.
10.
Tap the
or
soft key. The markers registered in preset A or preset B are deleted.
Note
A marker applied to the waveform is not cleared. To delete markers set on the waveform, tap the Delete
Cursor/Marker soft key. See page 6-6.
6.1 Operating Cursors and Markers
