8-15
IM AQ1210-01EN
Using the Application Feature
8
Performing Averaged Measurements
5.

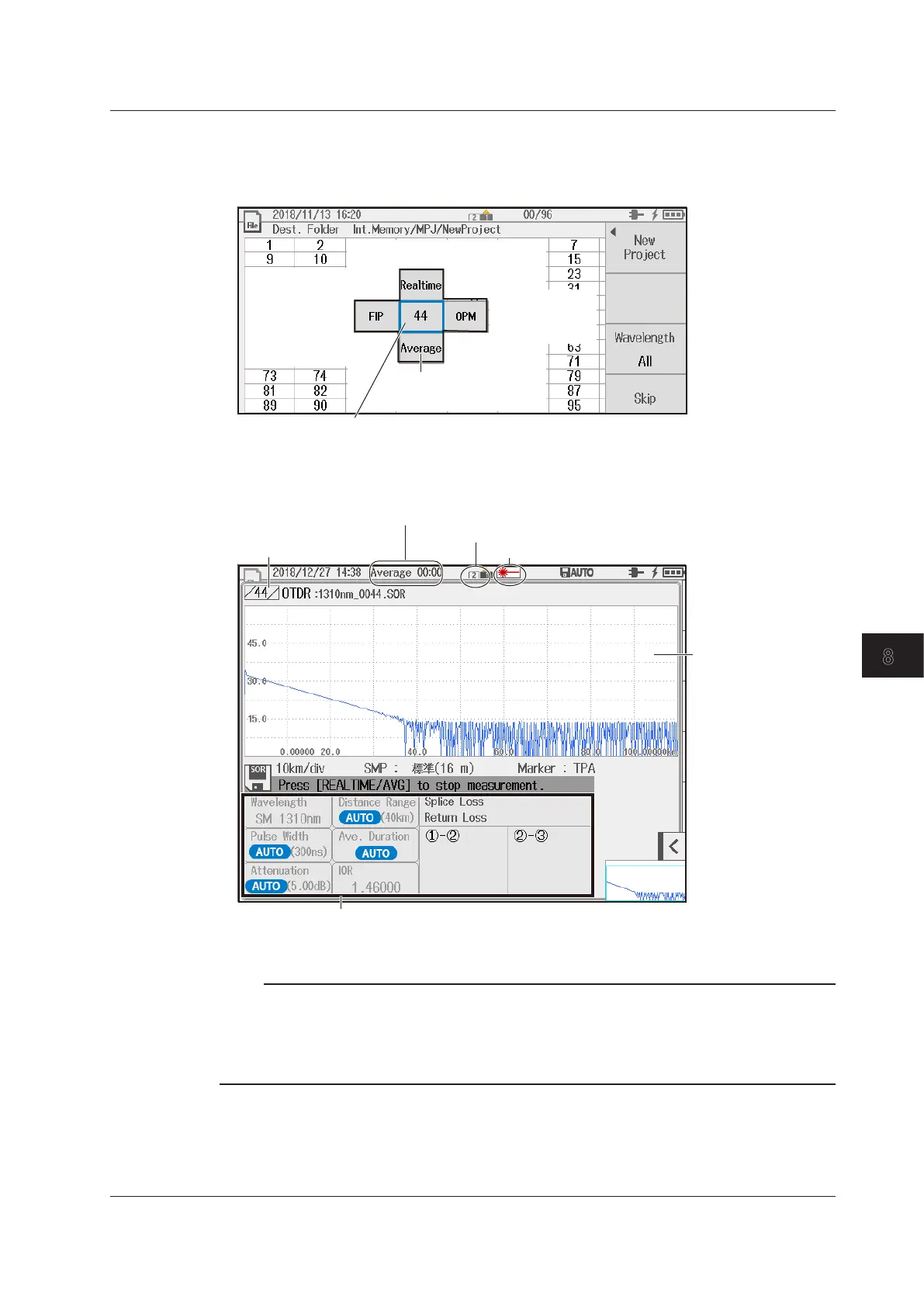

Tap the core number you want to perform averaged measurement on. A menu appears for
executing a measurement.
OTDR feature
(average)
Example of measuring core number 44
6.
Tap the Average menu to start an averaged measurement.
The measured waveform is displayed on the screen, and while the measurement is in progress, a laser
emitting mark is displayed at the top of the screen.
Laser on indication
The OTDR port emitting light
Averaged measurement in progress indication
Core number being
measured
screen
Cannot be controlled on the OTDR waveform screen of multi-fiber measurement. When event
search is set to on in the setup measurement (Measure) conditions, the analysis results are
displayed when the measurement is complete.
Note
• If Wavelength on the multi-fiber measurement screen is set to “All,” measurement is executed using
multiple wavelengths for each core.
• If you enter the label characters in the label setting of the project setup screen, the same label characters
can be entered at once for all cores.
• You can also execute an averaged measurement using the AVG key.
• When Auto Save is Set to ON in the Measurement (Measure) Conditions of Setup
When measurement is complete, the measured results are automatically saved. The screen
returns automatically to the multi-fiber measurement screen, and pass/fail judgment indications
appear in the core number cells whose measurement results have been saved.
8.2 Measuring a Multi-Core Optical Fiber Cable (Multi-Fiber Project)
