Creating New Project Conditions
4.
Tap the Function soft key to select Master.
5.

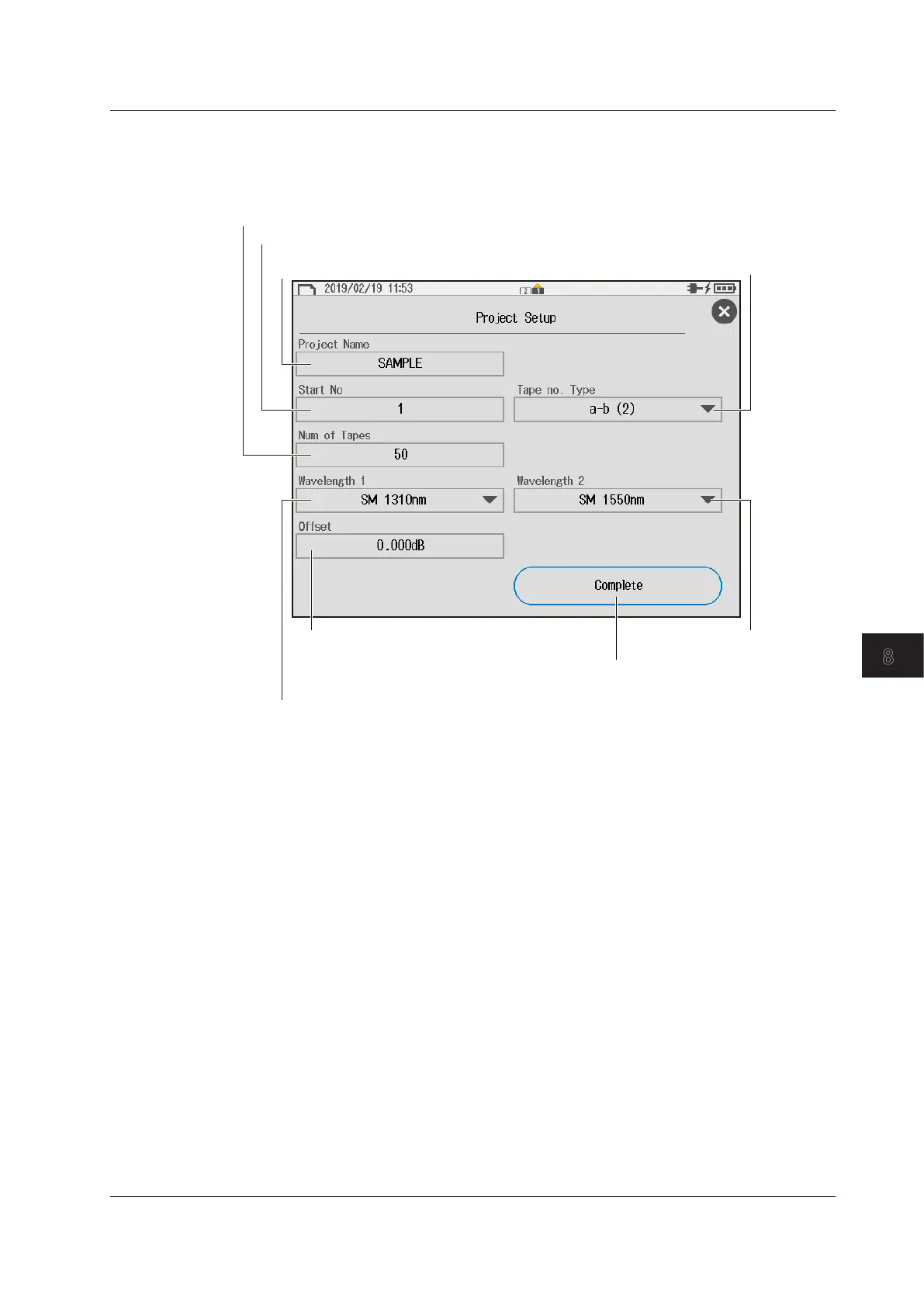

Tap the New Project soft key to display a Project Setup screen.
Set the project name.
A character input dialog box will open.
Set the starting core number (1 to 9900).
Set the number of cores or tapes (1 to 2000).
Set the tape number (OFF, a-b (2), a-c
(3), a-d (4), a-e (5), a-f (6), a-g (7), a-h (8)).
Set wavelength 1.
(GI 850nm, GI 1300nm, SM 1310nm, SM 1490nm, SM 1550nm, SM 1625nm, SM 1650nm)
Set the offset (–9.900 to 9.900 dB).
Set wavelength 2
(OFF, SM 1550nm).
Finishes the setting of the project conditions
When the setup screen closes, the project
condition status changes to “Sending.”
