Using the Application Feature
1
2
3
4
5
6
7
8
9
10
11
App
Index
Sharing the Project Conditions
Send the project conditions created on the master side to the slave side.
8.

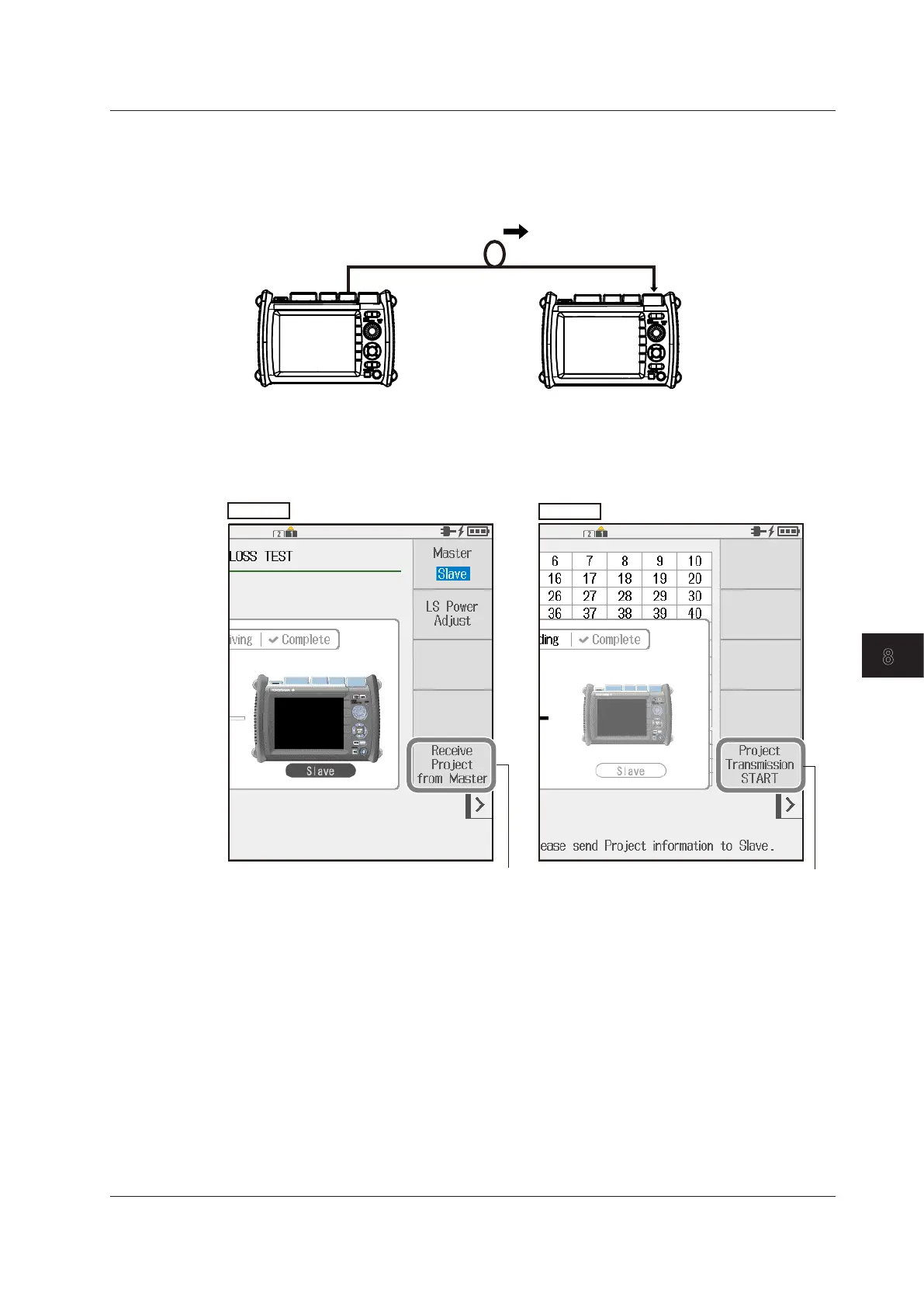

Connect the OTDR port (PORT1) of the instrument on the master side and the OPM port of the
instrument on the slave side with an optical fiber cable.
AQ1210A, AQ1215A,
AQ1210E, AQ1215E,
AQ1215F, AQ1216F
AQ1210A, AQ1215A,
AQ1210E, AQ1215E,
AQ1215F, AQ1216F
Master
Create a project
Slave
Optical fiber cable for signal transmission
OTDR port (PORT1)
OPM port
Transfer the project data
9.
On the slave side, tap the Receive Project from Master soft key. The soft key changes to “Stop.”
10.
On the master side, tap the Project Transmission START soft key.
Slave
Master
Receives project conditions from the master Sends project conditions to the slave
When the transmission of the project conditions is completed between the master side and slave
side, a screen appears for executing multicore loss tests.
8.4 Performing a Multicore Loss Test (Multicore Loss Test)
