8-50
IM AQ1210-01EN
2-W
ay
T
race Analysis
3.
T
ap the
2-W
ay T
race
item to display the 2-Way
T
race screen.

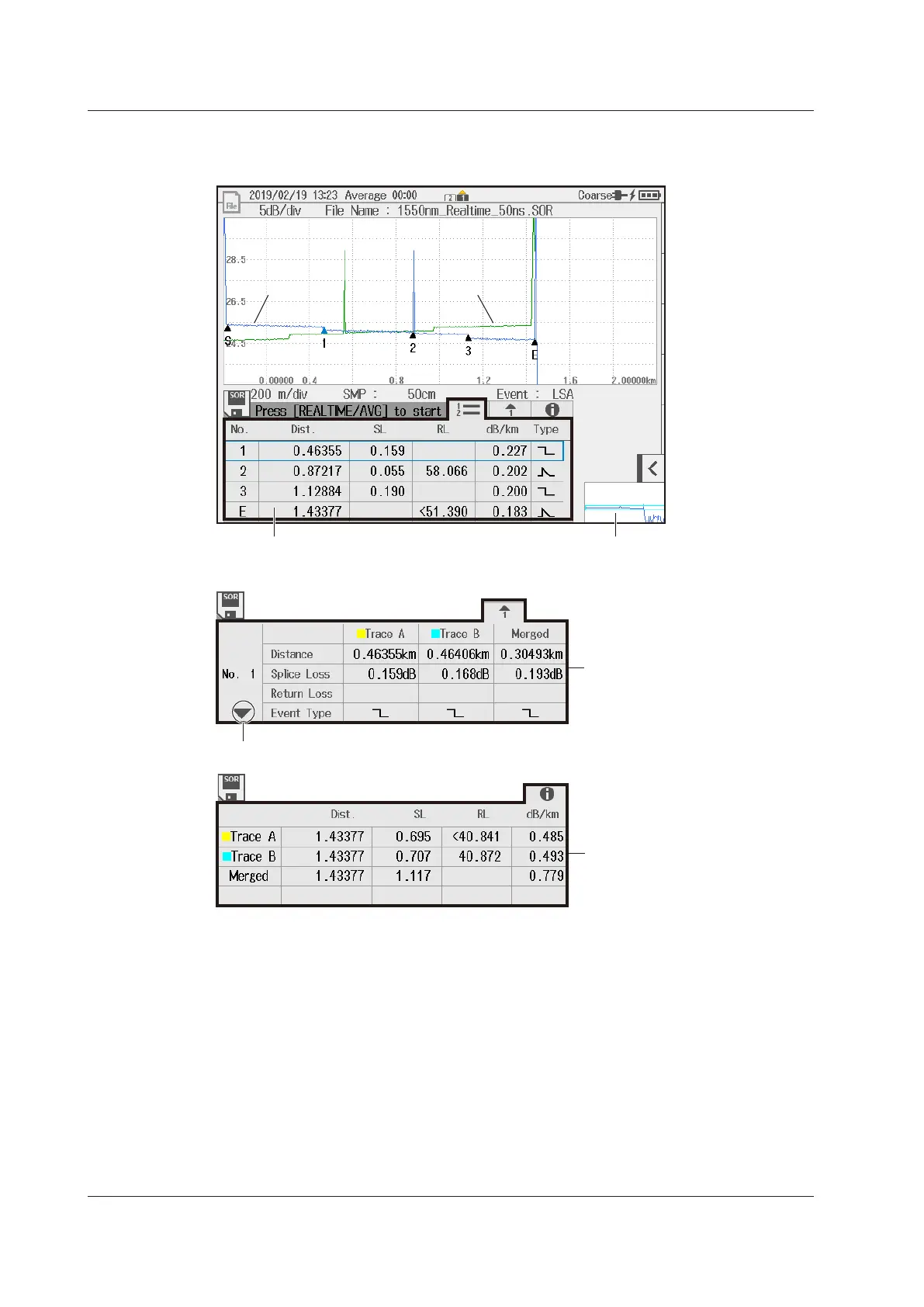

Overview display
See section 6.2.
Trace1 waveform
Trace2 waveform
List of events
Displayed by tapping the List tab.
For details on events, see the explanation in section 5.1.
Display of separate events
Displayed by tapping the Detail tab.
Displays the next event
Cumulative display of events
Displayed by tapping the Summary tab.
8.5
Performing Advanced Analysis
(Advanced Analysis)
