• Combining the Waveforms from Each Direction
To display the two waveforms obtained by measuring the same section from two directions, one
of the waveforms can be reversed and superimposed on the other waveform, which is specified
as the current waveform.

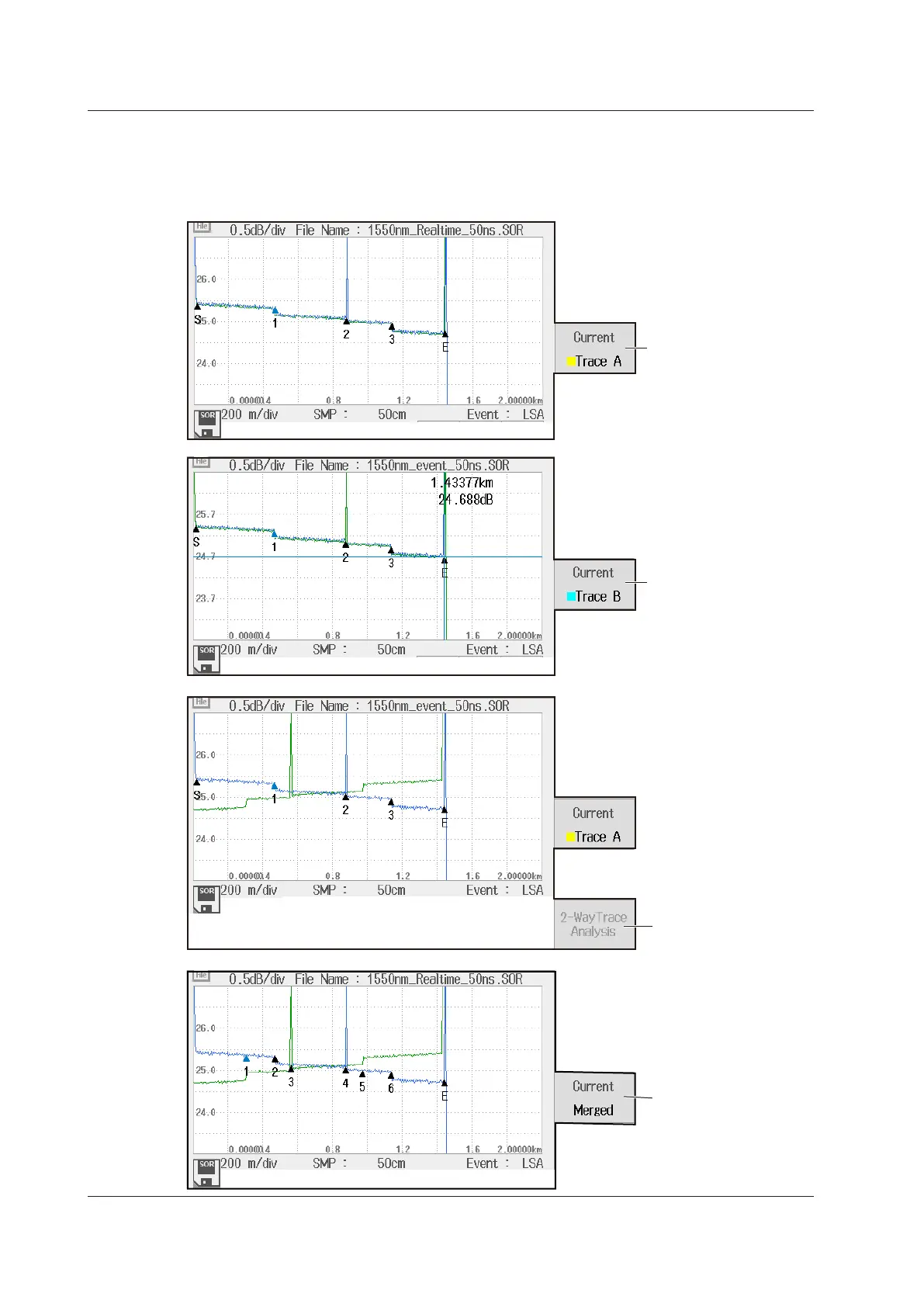

TraceA waveform display
TraceB waveform display
2 way trace waveform display (displays the event number of TraceA of the current trace)
2 way trace waveform display (Combines and displays the events of TraceA and TraceB)
Executes 2 way trace
When Merged is selected,
the events of TraceA and
TraceB are combined.
Displays the waveform
viewed from one end
Displays the waveform
viewed from the other end
Combines the waveform viewed from
one end and that viewed from the other
end and displays the result
