Using the Application Feature
8
Differential Trace
3.

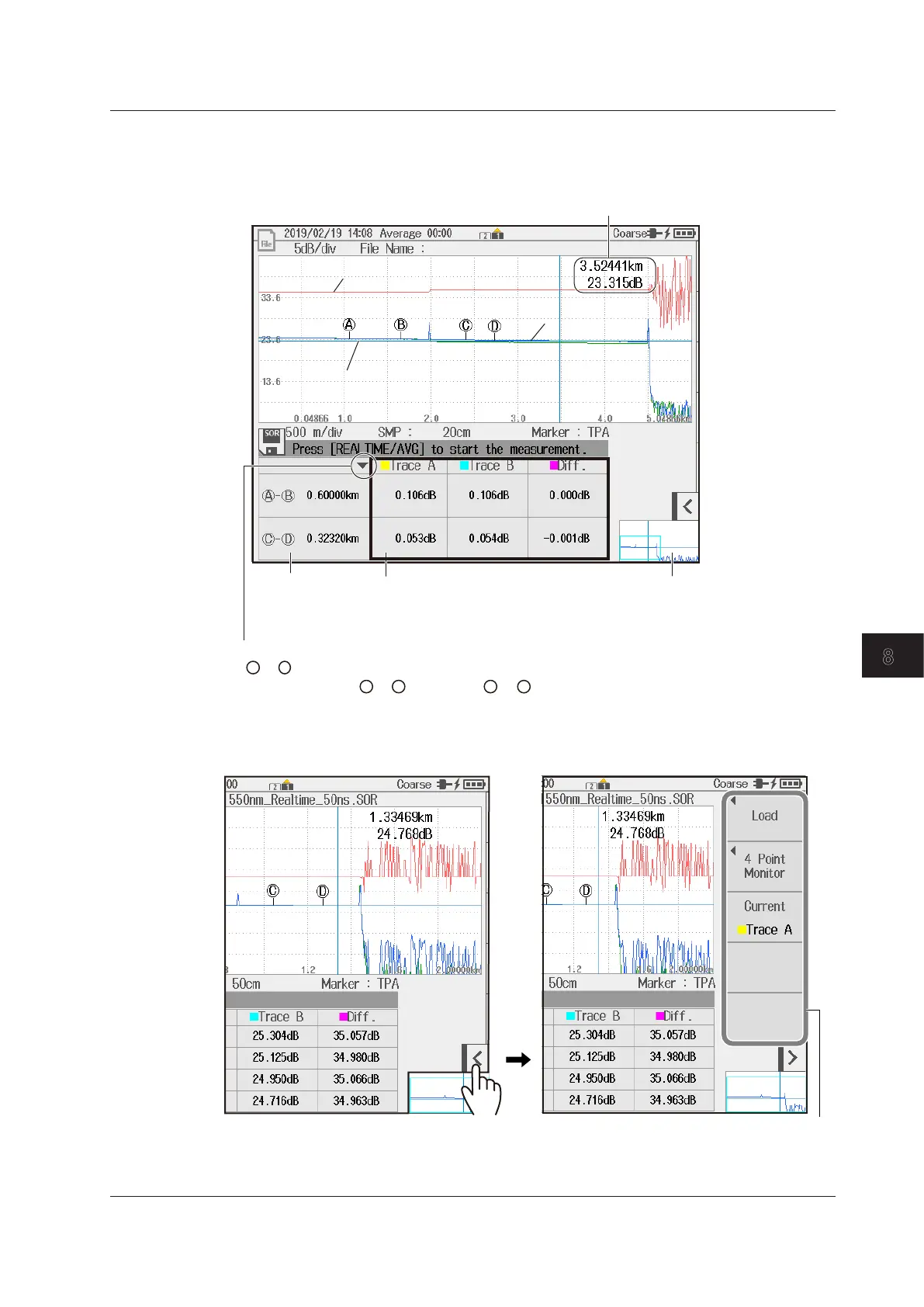

Tap the Diff. Trace item to display the Diff. Trace screen.
Overview display
See section 6.2.
Loss display of each waveform
Displays the loss values at the marker positions
of the two loaded waveforms and the differential
trace of the two
Distances to the
marker positions
on the waveform
Markers for monitoring loss values
Differential trace
Marker information of the trace
waveform specified as the current trace
Switches the loss value display
A to D The values of each marker D
Loss value between A — B and between C — D
Waveform displays of
Trace1 and Trace2
Soft Key Menu (Diff. Trace)
4.
Tap the soft key menu display button. A Diff. Trace soft key menu appears.
