Setting the Report Format
5.

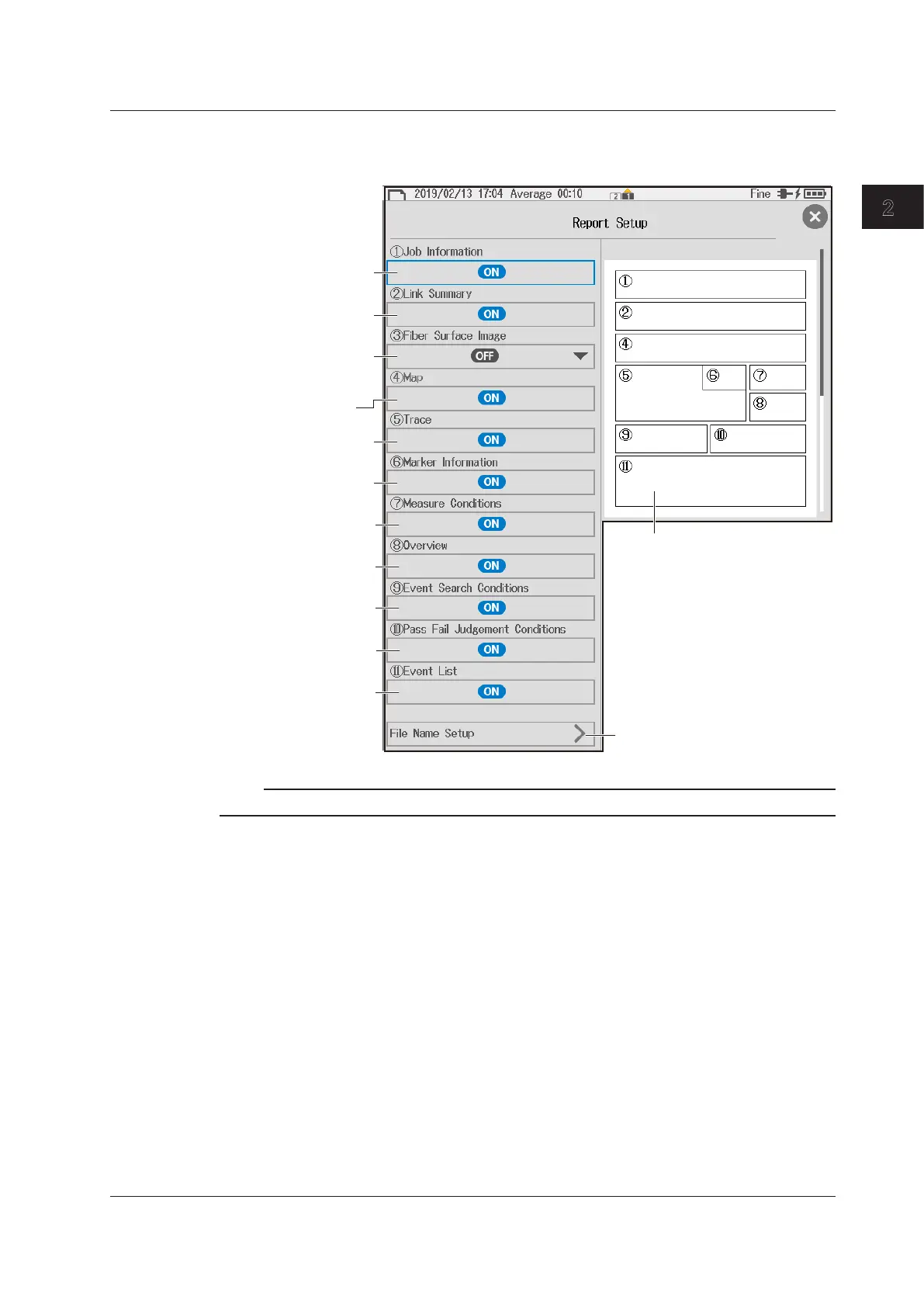

Tap Report Setup to display the Report Setup screen.
Measurement information
display (OFF, ON)
Measurement result
display (OFF, ON)
Fiber surface image
display (OFF, ON)
MAP display
(OFF, ON)
Waveform display
(OFF, ON)
Marker information
display (OFF, ON)
Measurement condition
display (OFF, ON)
Overview display
(OFF, ON)
Event search condition
display (OFF, ON)
Pass fail condition
display (OFF, ON)
Event list display
(OFF, ON)
Set the file name.
See page 2-24.
Report layout
Automatically arranged
according to the on/off state of
display items
Note
For details on the items, see “Explanation” in this section.
