YOKOGAWA AQ1215A User Manual

3-12
IM AQ1210-01EN

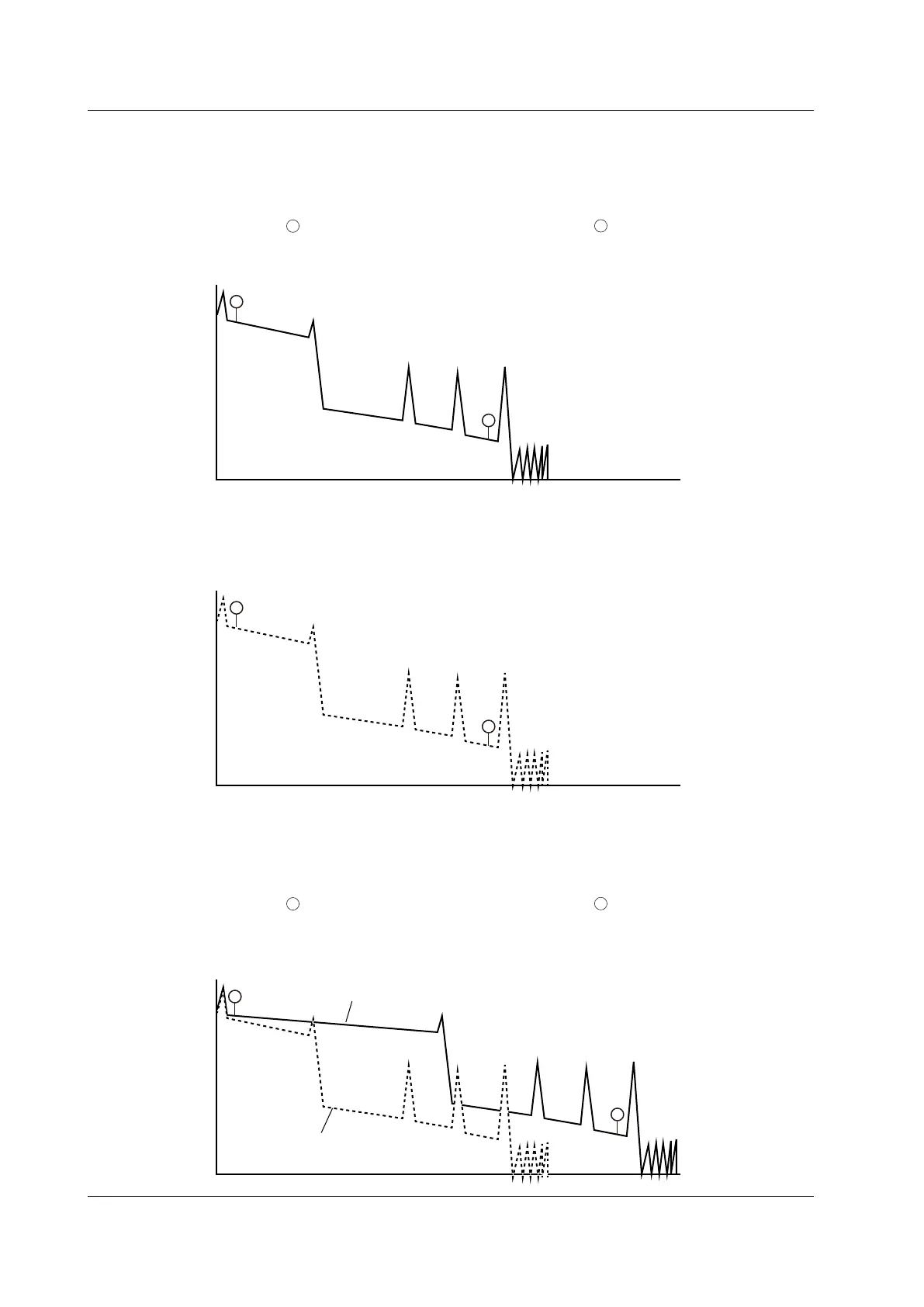

Measuring the Connection Loss between the Measurement Start Point and
Measurement Endpoint before the Construction
3.
Tap the Work Trace Comparison soft key and then the 4 Point Monitor soft key. A marker soft
key menu appears for monitoring loss values (see the previous page).
4.
Place the
A
marker at the measurement start point and the
B
marker at the measurement end
point.
The connection loss between A and B is measured.
A
B
Capture the Waveform Data before the Construction
5.
Tap the Work Trace Comparison soft key and then the Capture Trace soft key.
The waveforms displayed on the current screen are captured. Because markers are not captured,
separately record the connection loss value between A and B before the construction.
A
B
The captured waveform is displayed dimmed.
Measuring the Connection Loss between the Measurement Start Point and
Measurement Endpoint after the Construction
6.
Tap the Work Trace Comparison soft key and then the 4 Point Monitor soft key. A marker soft
key menu appears for monitoring loss values (see the previous page).
7.
Place the
A
marker at the measurement start point and the
B
marker at the measurement end
point.
The connection loss between A and B is measured. Check that there are no problems in the connection
loss value before the construction and the connection loss value after the construction.
A
B
Waveform data after construction
Waveform data before construction
(captured waveform)
3.4 Rerouting Work
