Input Modules (Sold Separately)
To make sure that an input module is the module that you ordered, check the module name written on
it.
MODEL Name Abbreviation
701250 High-Speed 10 MS/s, 12-Bit Isolation Module HS10M12
701251 High-Speed High-Resolution 1 MS/s, 16-Bit Isolation Module HS1M16
701255 High-Speed 10 MS/s, 12-Bit Non-Isolation Module NONISO_10M12
701267 High-Voltage 100 kS/s, 16-Bit Isolation Module (with RMS) HV (with RMS)
701261 Universal (Voltage/Temp.) Module UNIVERSAL
701262 Universal (Voltage/Temp.) Module (with AAF) UNIVERSAL(AAF)
701265 Temperature, High Precision Voltage Isolation Module TEMP/HPV
701270 Strain Module (NDIS) STRAIN_NDIS
701271 Strain Module (DSUB, Shunt-Cal) STRAIN_DSUB
701275 Acceleration/Voltage Module (with AAF) ACCL/VOLT
701281 Frequency Module FREQ
720210 High-Speed 100 MS/s, 12-Bit Isolation Module HS100M12
720211 High-Speed 100 MS/s, 12-Bit Isolation Module HS100M12
720220 16-CH Voltage Input Module 16CH VOLT
720221 16-CH Temperature/Voltage Input Module 16CH TEMP/VOLT
720230 Logic Input Module LOGIC
720240 CAN Bus Monitor Module* CAN MONITOR
720241 CAN & LIN Bus Monitor Module* CAN & LIN
720243 SENT Monitor Module* SENT
720254 4-CH 1 MS/s, 16-Bit Isolation Module 4CH 1M16
* The CAN bus monitor, CAN&LIN bus monitor, and SENT monitor modules can be used on the DL850EV. They
cannot be used on the DL850E.

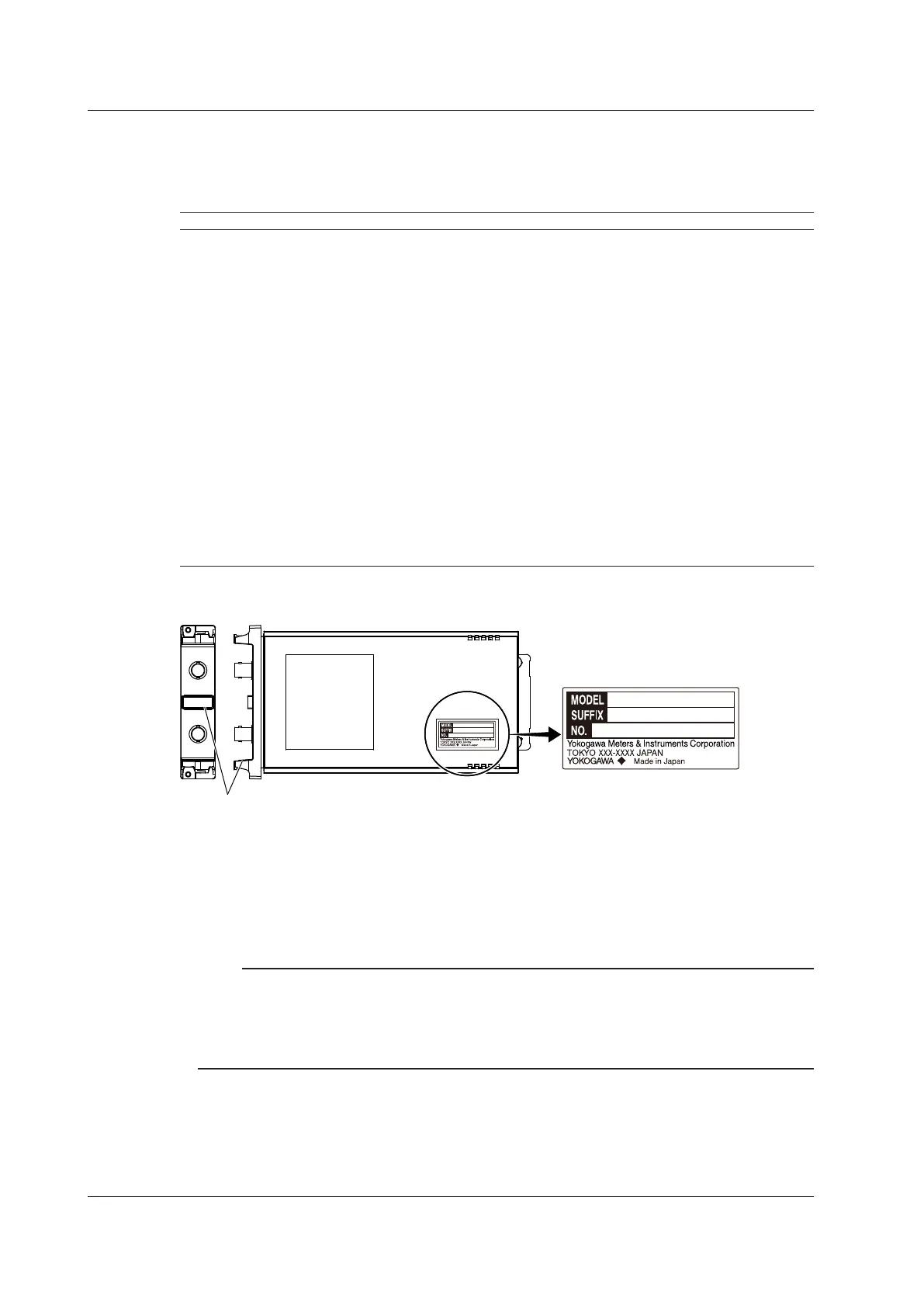

Top line: Model
Bottom line: Abbreviation
The location varies depending on the module.
701250
HS10M12
In this manual, input modules are referred to by their model names and abbreviations.
For example, the High-Speed 10 MS/s, 12-Bit Isolation Module is referred to as the 701250 (HS10M12).
However, if a module has already been referred to previously, it may be referred to only by its model
name (for example, 701250).
Note
To use the DL850E/DL850EV with 701250 and 701255 modules shipped between August 2006 and June
2007, you must update the module firmware. If error code 916 appears when you turn on the DL850E/
DL850EV, it may be necessary to update the firmware of the aforementioned modules. Prepare the module
serial numbers, and contact your nearest YOKOGAWA dealer. The dealer will update the module firmware
for a fee.
Checking the Contents of the Package

YOKOGAWA DL850E Specifications

General

Brand	YOKOGAWA
Model	DL850E
Category	Test Equipment
Language	English
