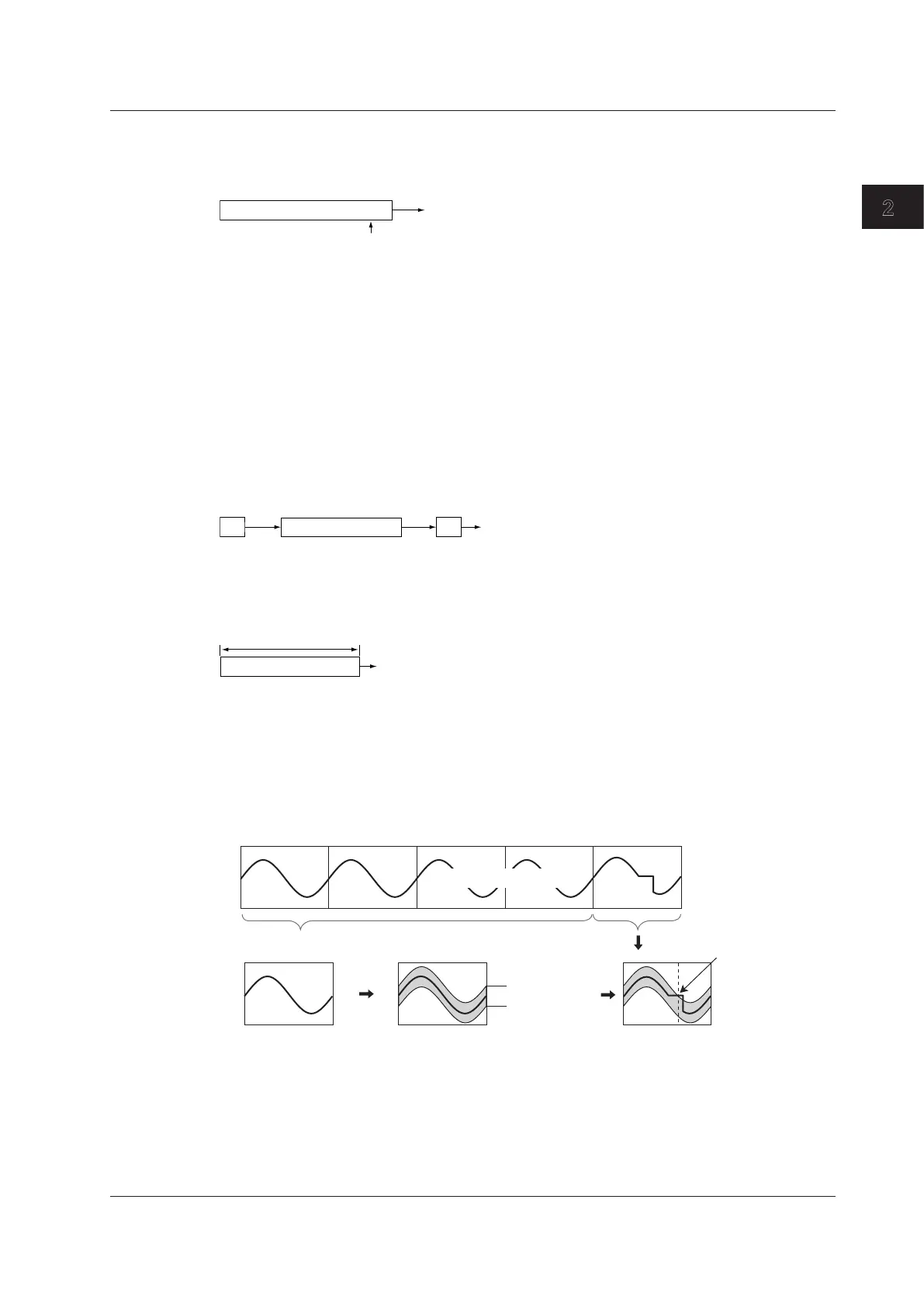

Edge On A Trigger (Enhanced)
While state condition A is met, the DL850E/DL850EV triggers on the OR of multiple trigger source
edges.
Edge detection
Trigger
Condition A is being met
OR Trigger
The DL850E/DL850EV triggers on the OR of multiple trigger source edges.
AND Trigger
The DL850E/DL850EV triggers on the AND of multiple trigger source conditions. The DL850E/
DL850EV triggers when all the specified conditions are met at a single point.
Period Trigger
The DL850E/DL850EV triggers on a specified period of occurrence of state condition B. The
DL850E/DL850EV triggers when state condition B occurs again.
Met Met
Trigger
B
B
Reference time T
Pulse Width Trigger
The DL850E/DL850EV triggers according to the relationship between the state condition B
achievement time and the specified reference times (Time or T1 and T2).
Achievement time
Trigger
B
Wave Window Trigger
The DL850E/DL850EV creates real-time templates (Wave Window) using a number of cycles
directly preceding the current waveforms. The DL850E/DL850EV compares the current waveforms
to the real-time templates and triggers if one of the current waveforms falls outside of its real-time
template.
Reference cycles
(example: the waveforms for the four previous cycles)
Current
waveform
Real-time template
Average waveform
+ tolerance width
Trigger
Average of 1, 2,
or 4 cycles
Measured waveform
Tolerance width
The DL850E/DL850EV compares
the current waveform to the
real-time template and triggers if
the current waveform falls
outside of the real-time template.
2.2 Triggering
