YOKOGAWA STARDOM FCN-RTU User Manual

<9. Advanced Engineering >
175
TI 34P02K35-02E
May 31, 2017-00
9.1.6 How to Create User Data Types
Logic Designer allows an engineer to define customized data types, known as user
data types. This section describes how to define user data types, and provides
some examples on the use of user data types.
● Creating a WorkSheet for User Data Type Definitions
To create user data types, first create a worksheet for user data type definitions, and
then define data types on the created worksheet. The procedure is described below.

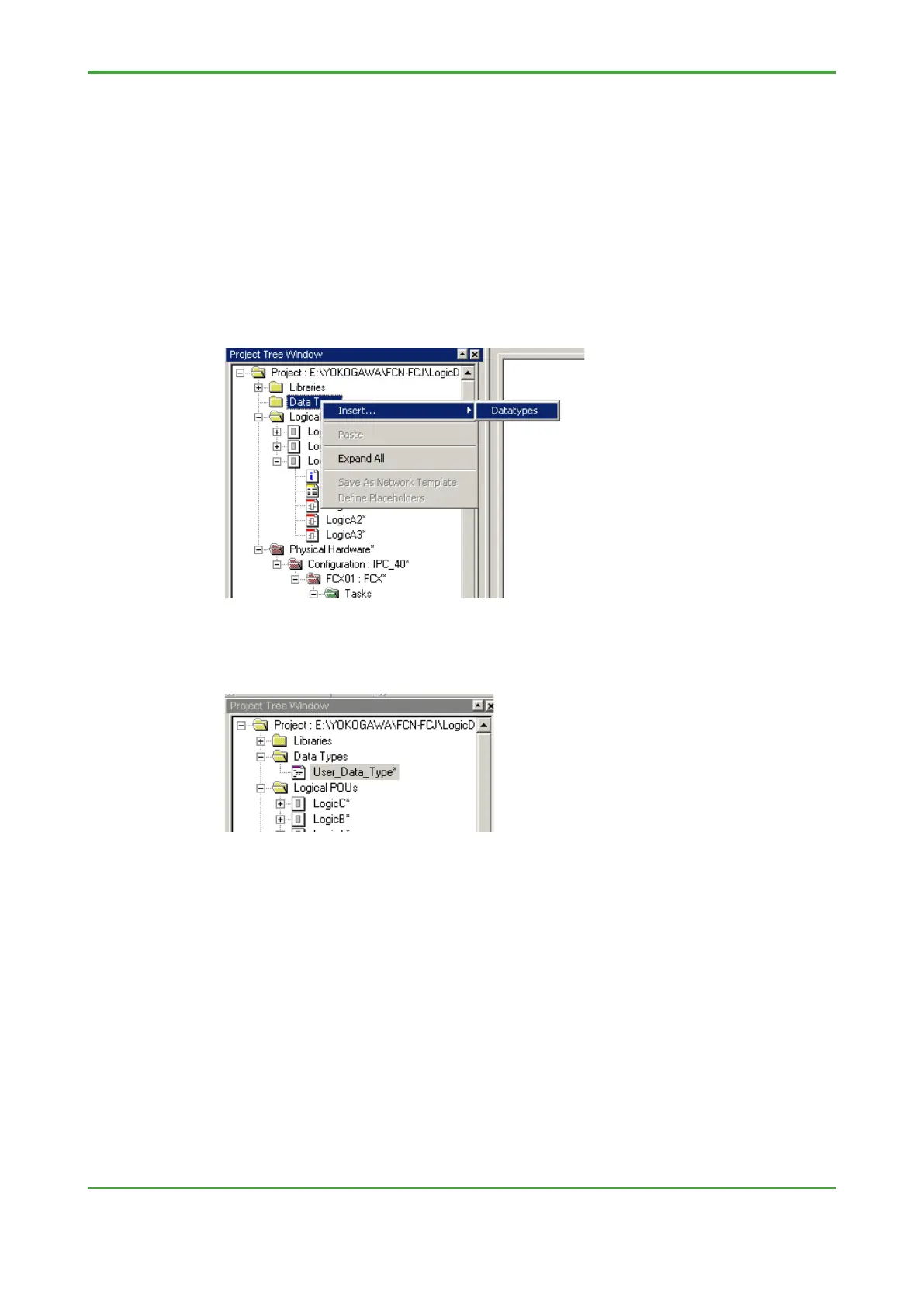

1. Click the right mouse button on “Data Type” in Logic Designer’s Project Tree
window, and then select [Insert]-[Datatypes] from the pop-up menu.
2. On the displayed dialog, enter a worksheet name to create a worksheet for
coding user data types.
3. In the figure below, a worksheet named “User_Data_Type” is created. User data
types can now be defined on this worksheet.

YOKOGAWA STARDOM FCN-RTU Specifications

General

Model	FCN-RTU
Category	Controller
Input Voltage	24 VDC
Humidity Range	5 to 95% RH (non-condensing)
Enclosure Rating	IP20
Type	Remote Terminal Unit
Communication Protocols	Modbus, Ethernet/IP, DNP3, IEC 60870-5-101/104
Communication Interfaces	RS-232, RS-485, Ethernet
Input/Output	Digital and Analog I/O
Power Supply	24 VDC
Operating Temperature	-20 to 60 °C
Programming Languages	ST (Structured Text), LD (Ladder Diagram), FBD (Function Block Diagram)
