9.1.8 Cross References
Cross references can be used to investigate on which variable worksheet variables,
function blocks and NPAS_POUs used in Logic Designer are defined, and on which
code worksheets they are used.
● How to Create Cross References
To create cross references, select [Build]-[Build Cross References] from the menu
bar, or press the [F12] key.
● How to Use Cross References

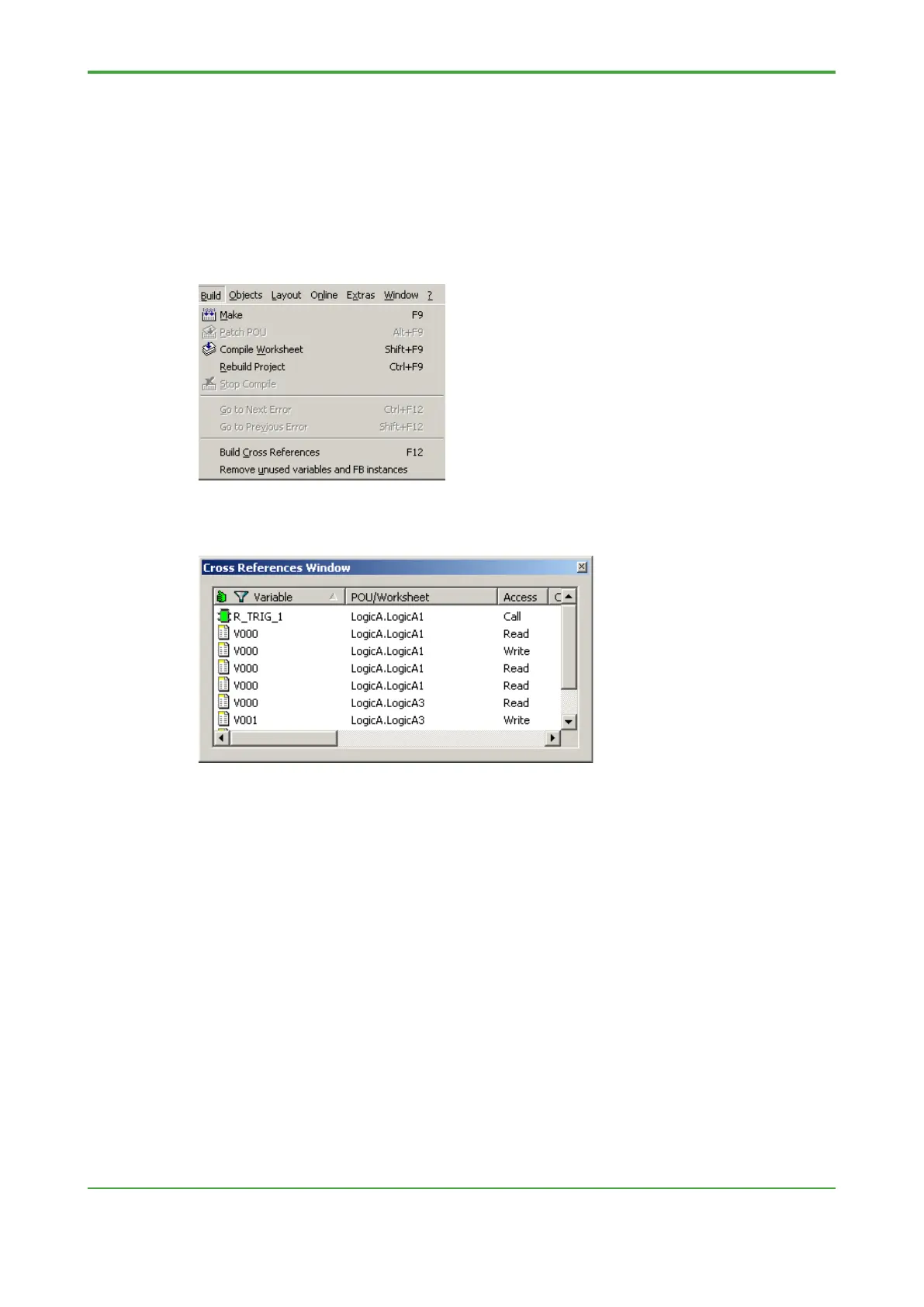

The figure below shows examples of generated cross references.
This example indicates that variable “V000” is written in one place but referenced
(read) in 4 places in Logic Designer.
Double-clicking the mouse button on any cross reference line displays the
corresponding worksheet.
