1-5
IM WT3001E-51EN
Motor Evaluation Function (Option)
1
• Selecting the Torque Signal Type
2.
Press the cursor keys to select the Sense Type under Torque.
3.

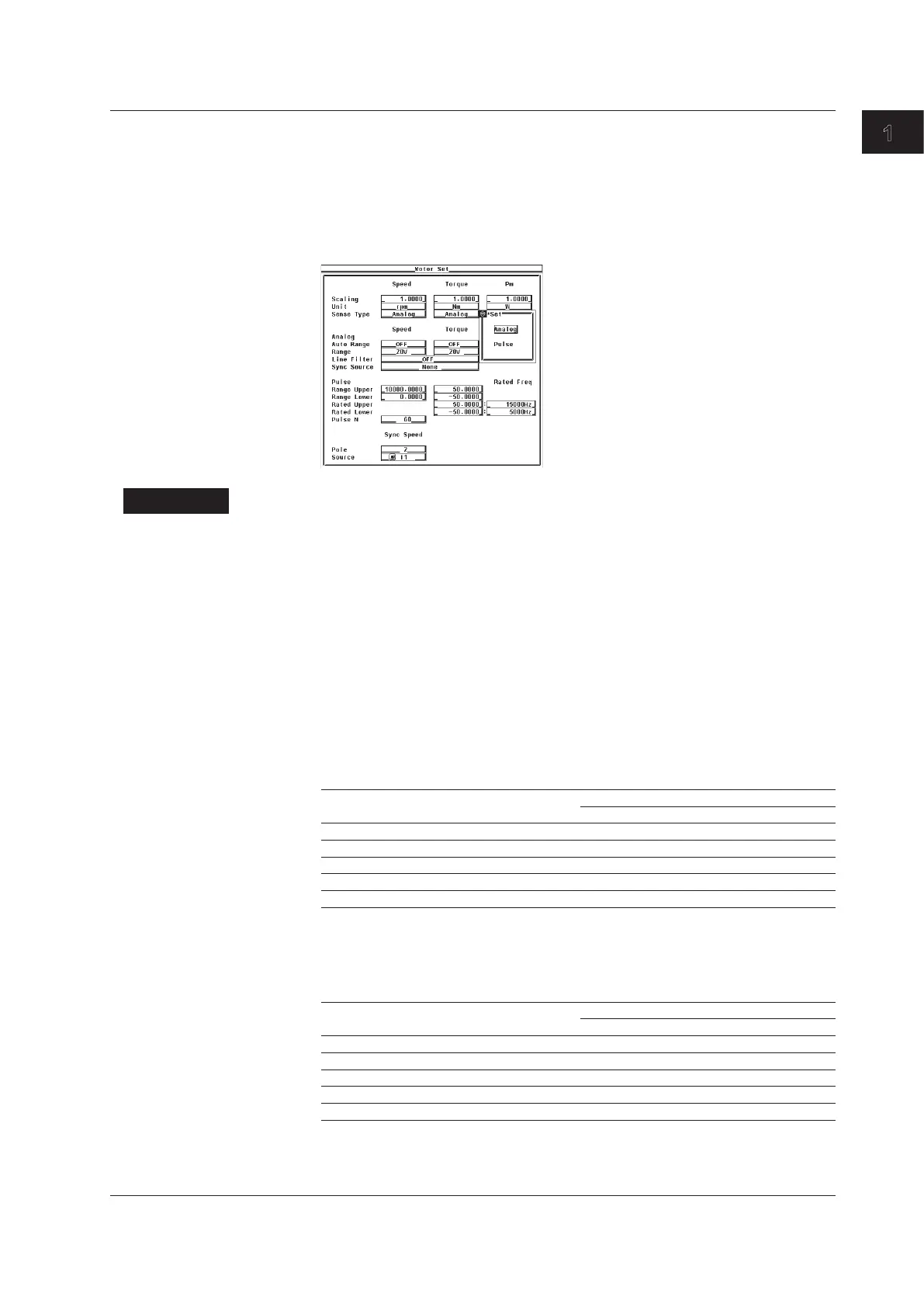

Press SET. A signal type selection box appears.
4.
Press the cursor keys to select Analog or Pulse.
5.
Press SET to confirm the signal type.
Explanation
• Selecting the Signal Type
The signal applied from the revolution sensor or torque meter to this instrument can
be selected from the following two types.
• Analog
Select this when the signal type is a DC voltage (analog signal).
• Pulse
Select this when the signal type is a pulse signal.
• Signal Type and Setup Items
Some of the settings described in the subsequent sections are not required depending
on the signal type as described below.
• Settings Related to the Revolution Signal Type
Revolution Signal Type
Analog Pulse
Analog range (section 1.4) Required Not required
Line filter (section 1.5) Required Not required
Synchronization source (section 1.5) Required Recommended*
Pulse range (section 1.6) Not required Required
Pulse count per revolution (section 1.6) Not required Required
* Measurement is possible using None (default), but it is recommended that you specify the
setting to improve the measurement accuracy. For details, see the explanation in section
1.5.
• Settings Related to the Torque Signal Type
Torque Signal Type
Analog Pulse
Analog range (section 1.4) Required Not required
Line filter (section 1.5) Required Not required
Synchronization source (section 1.5) Required Recommended*
Pulse range (section 1.6) Not required Required
Pulse rating (section 1.6) Not required Required
* Measurement is possible using None (default), but it is recommended that you specify the
setting to improve the measurement accuracy. For details, see the explanation in section
1.5.
1.3 Selecting the Type of the Revolution and Torque Signals
To Next Page
