13-6
IM WT3001E-51EN

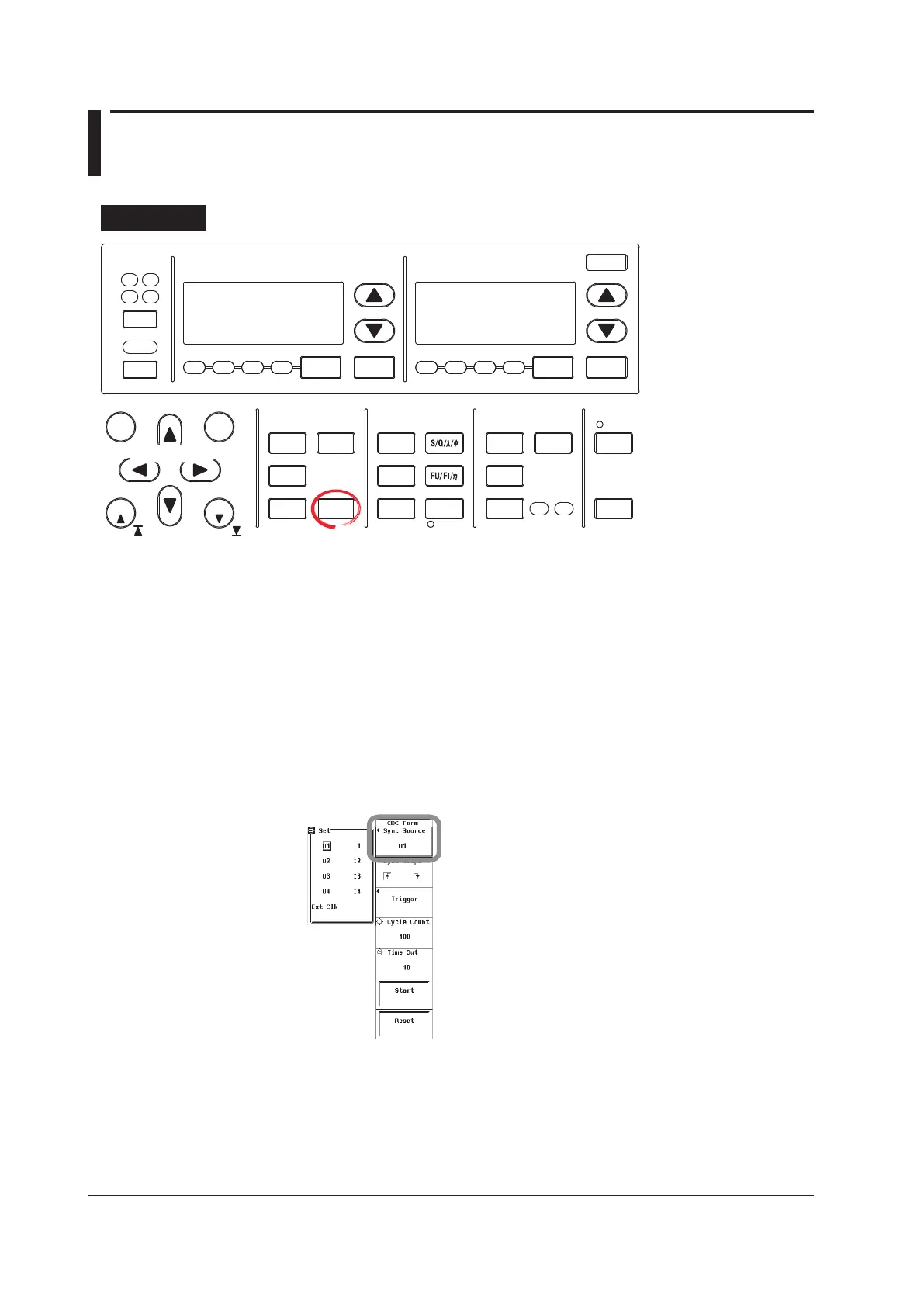

13.3 Setting the Measurement Conditions
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGE VOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY
ITEM & ELEMENT
2
3 4
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE
AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC located
above the soft keys.
In the procedural explanation
below, the phrase “press the
cursor keys” may be used.
This phrase refers to the
procedures for selecting
items and entering values
and character strings. For
details on the procedures,
see section 3.14 in the User’s
Manual, IM WT3001E-01EN.
Check that the cycle-by-cycle measurement status is indicating Reset. If not, set
the cycle-by-cycle measurement status to Reset according to the procedure in
“Resetting the Cycle-by-Cycle Measurement” on page 13-16.
1.
Press FORM to display the CBC Form menu.
Setting the Synchronization Source
2.
Press the Sync Source soft key to display the synchronization source selection
box.
3.
Press the cursor keys to select any of the elements/wiring units starting with U1.
4.
Press SET to confirm the new synchronization source.
