YOKOGAWA WT3002E User Manual

1-17
IM WT3001E-51EN
Motor Evaluation Function (Option)
1
2
3
4
5
6
7
8
9
10
11
12
13
Index

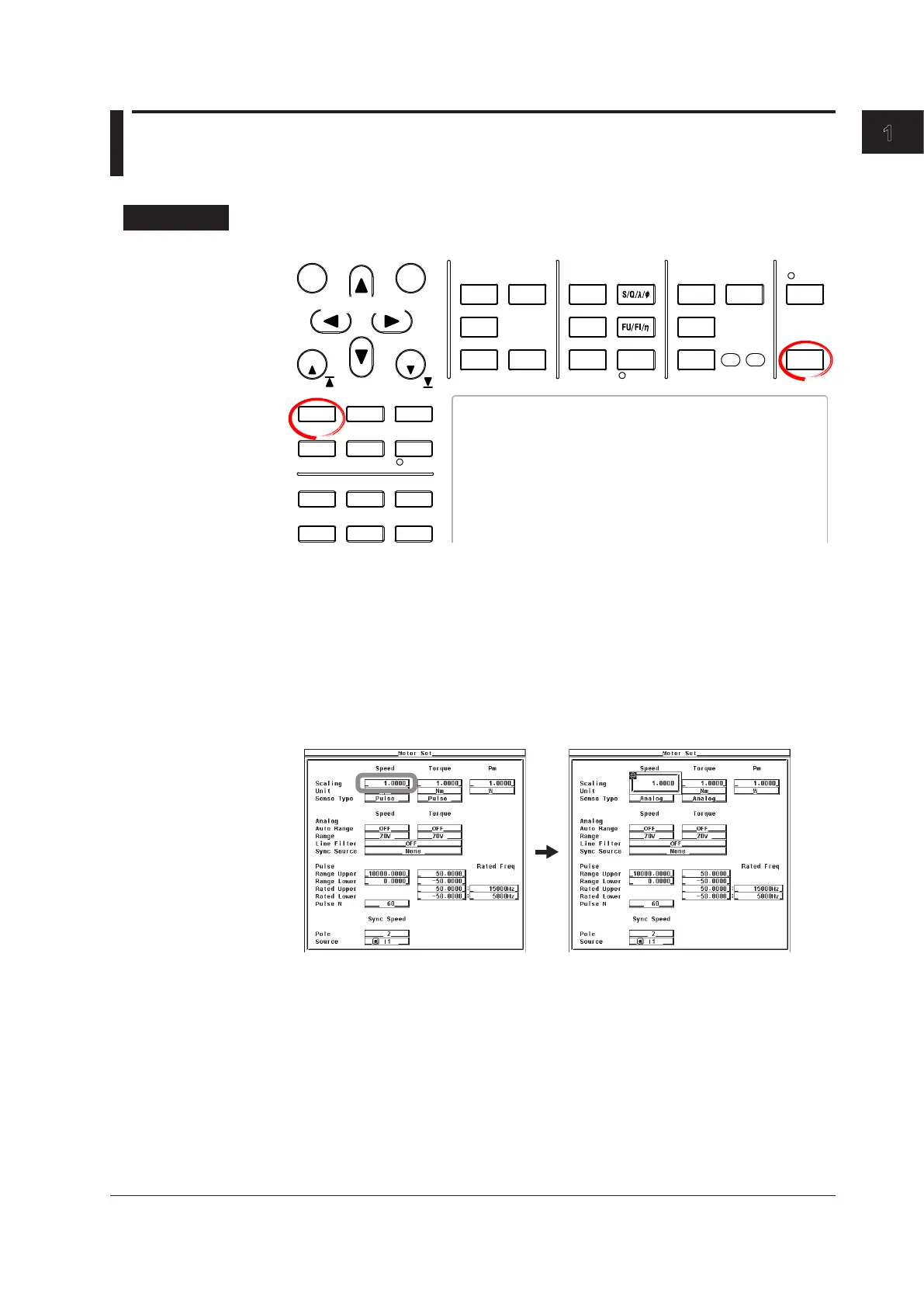

1.7 Setting the Scaling Factor and Unit
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
To exit the menu during operation, press ESC located above the
soft keys.
In the procedural explanation below, the phrase “press the cursor
keys” may be used. This phrase refers to the procedures for
selecting items and entering values and character strings. For
details on the procedures, see section 3.14 in the User’s Manual,
IM WT3001E-01EN.
Cursor keys
1.
Press SHIFT+SCALING (MOTOR SET) to display the Motor Set dialog box.
• Setting the Scaling Factor Used to Transform the Revolution Signal
2.
Press the cursor keys to select Scaling under Speed.
3.
Press SET. A scaling factor entry box appears.
4.
Press the cursor keys to set the scaling factor.
5.
Press SET or ESC to close the box.
