YOKOGAWA WT3002E - Selecting the Type of the Revolution and Torque Signals

1-4
IM WT3001E-51EN

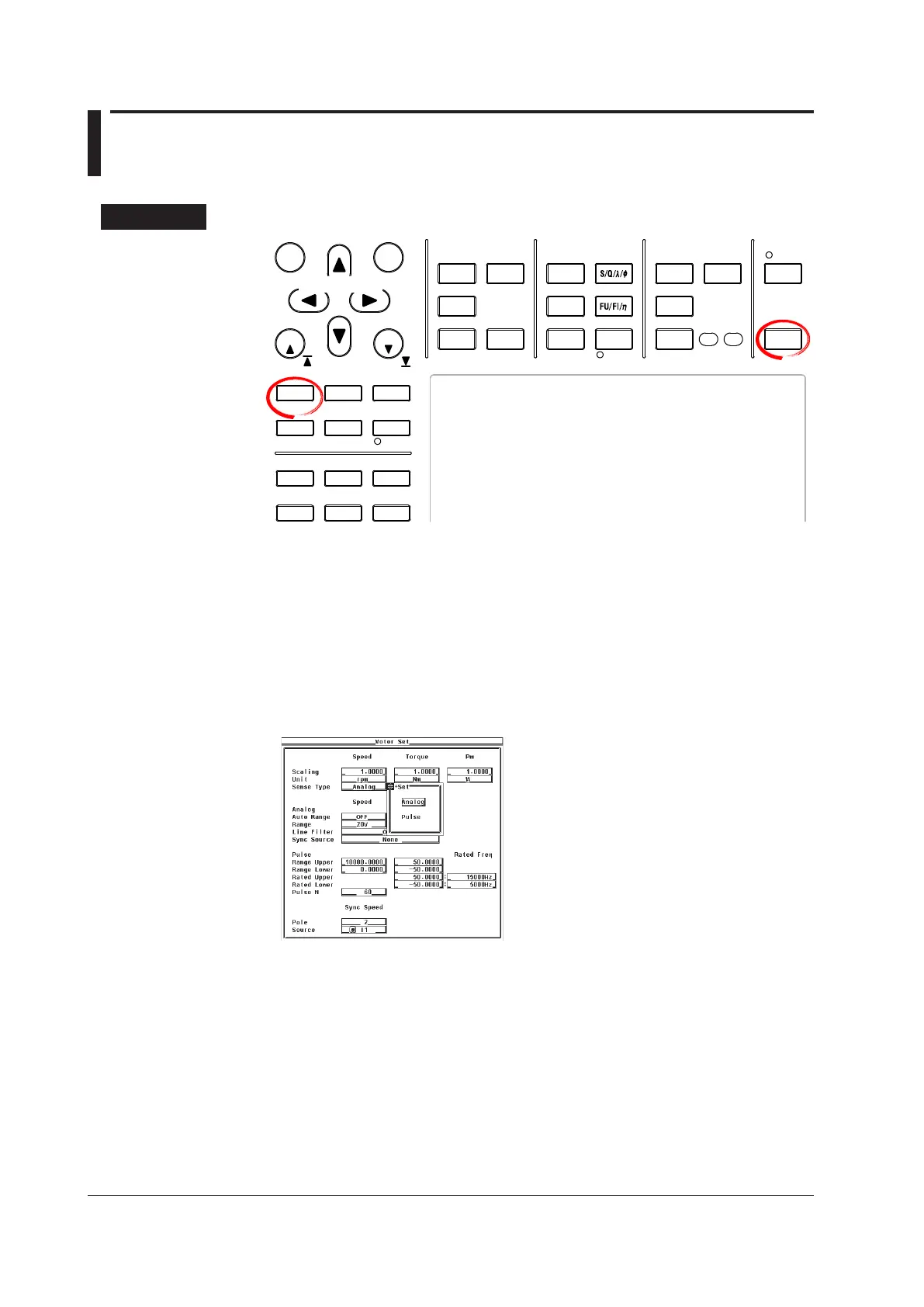

1.3 Selecting the Type of the Revolution and
Torque Signals
Procedure
START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
MENU STORE SET
MENU
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET MEASURE SYNC SOURCE
AVG LINE FILTER
FREQ
FILTER
FILE
PRINT
MISC
STORE IMAGE SAVE
HELP
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
Cursor keys
To exit the menu during operation, press ESC located above the
soft keys.
In the procedural explanation below, the phrase “press the cursor
keys” may be used. This phrase refers to the procedures for
selecting items and entering values and character strings. For
details on the procedures, see section 3.14 in the User’s Manual,
IM WT3001E-01EN.
1.
Press SHIFT+SCALING (MOTOR SET) to display the Motor Set dialog box.
• Selecting the Revolution Signal Type
2.
Press the cursor keys to select the Sense Type under Speed.
3.
Press SET. A signal type selection box appears.
4.
Press the cursor keys to select Analog or Pulse.
5.
Press SET to confirm the signal type.
