YOKOGAWA WT3002E User Manual

13-13
IM WT3001E-51EN
Cycle-by-Cycle Measurement
1
2
3
4
5
6
7
8
9
10
11
12
13
Index

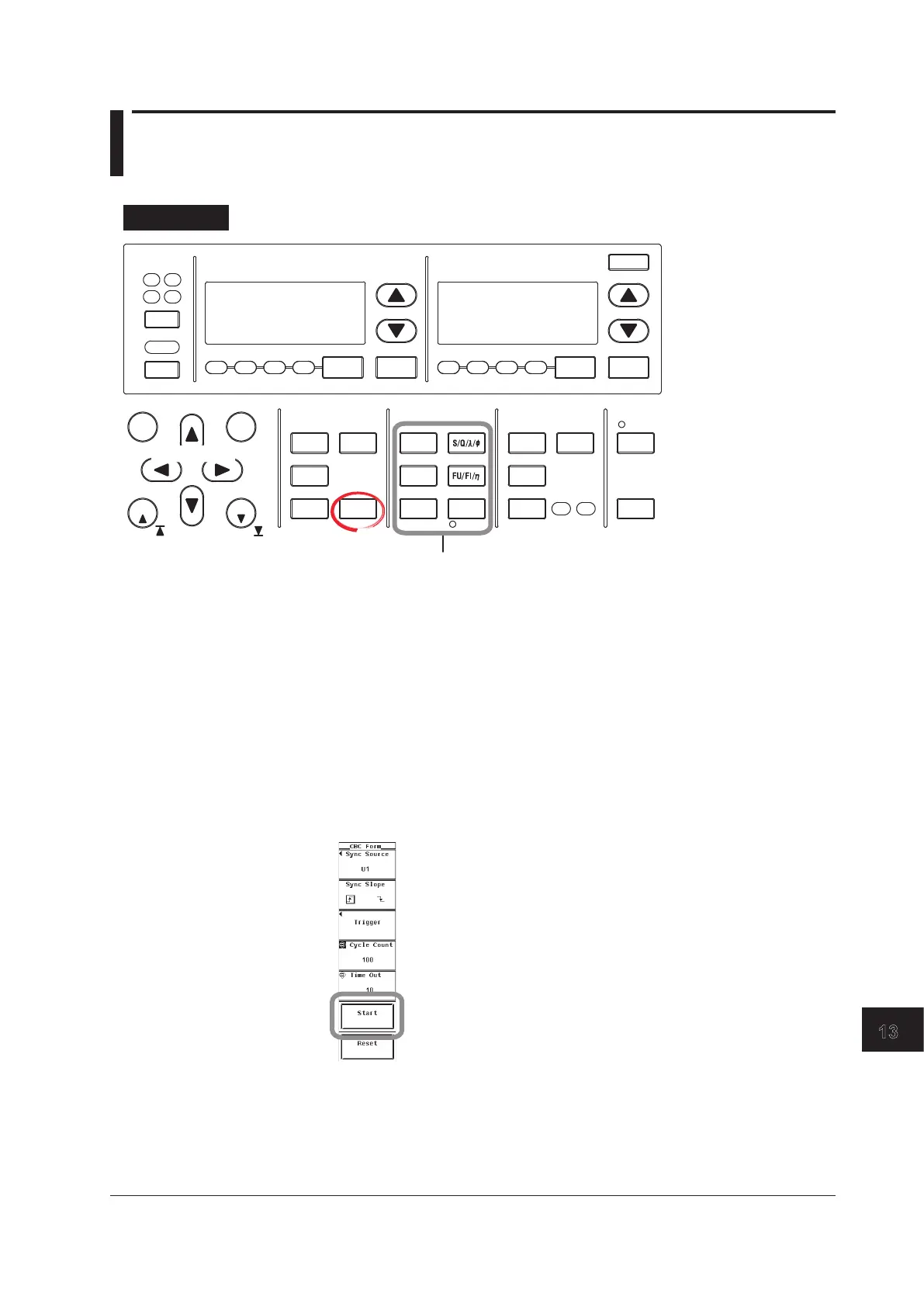

13.4 Executing the Cycle-by-Cycle Measurement
Procedure
START STOP
REMOTE
CAL
SENSOR RATIO
MEASURING
RMS MEAN DC RMEAN
CURRENT RANGE VOLTAGE RANGE
MEASURING
RMS MEAN DC RMEAN
ALL
INPUT INFO.
LOWER ITEM LOWER FORM ALL USER SET
DISPLAY ITEM & ELEMENT
2
3 4
COMPEN
ELEMENT
ELEMENT
1
WIRING
MODE AUTO MODE AUTO
EXT SENSOR
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
RESET SET
PAGE PAGE
Cursor keys
To exit the menu during
operation, press ESC located
above the soft keys.
In the procedural explanation
below, the phrase “press the
cursor keys” may be used.
This phrase refers to the
procedures for selecting items
and entering values and
character strings. For details
on the procedures, see section
3.14 in the User’s Manual, IM
WT3001E-01EN.
Function select keys
Check that the cycle-by-cycle measurement status is indicating Reset. If not, set
the cycle-by-cycle measurement status to Reset according to the procedure in
“Resetting the Cycle-by-Cycle Measurement” on page 13-16.
1.
Set the measurement range, scaling, etc. (see chapter 4 in the User’s Manual IM
WT3001E-01EN).
• Starting the Cycle-by-Cycle Measurement
2.
Press FORM to display the CBC Form menu.
3.
Press the Start soft key to start the cycle-by-cycle measurement. The cycle-by-
cycle measurement status indicates Start.
